HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-61

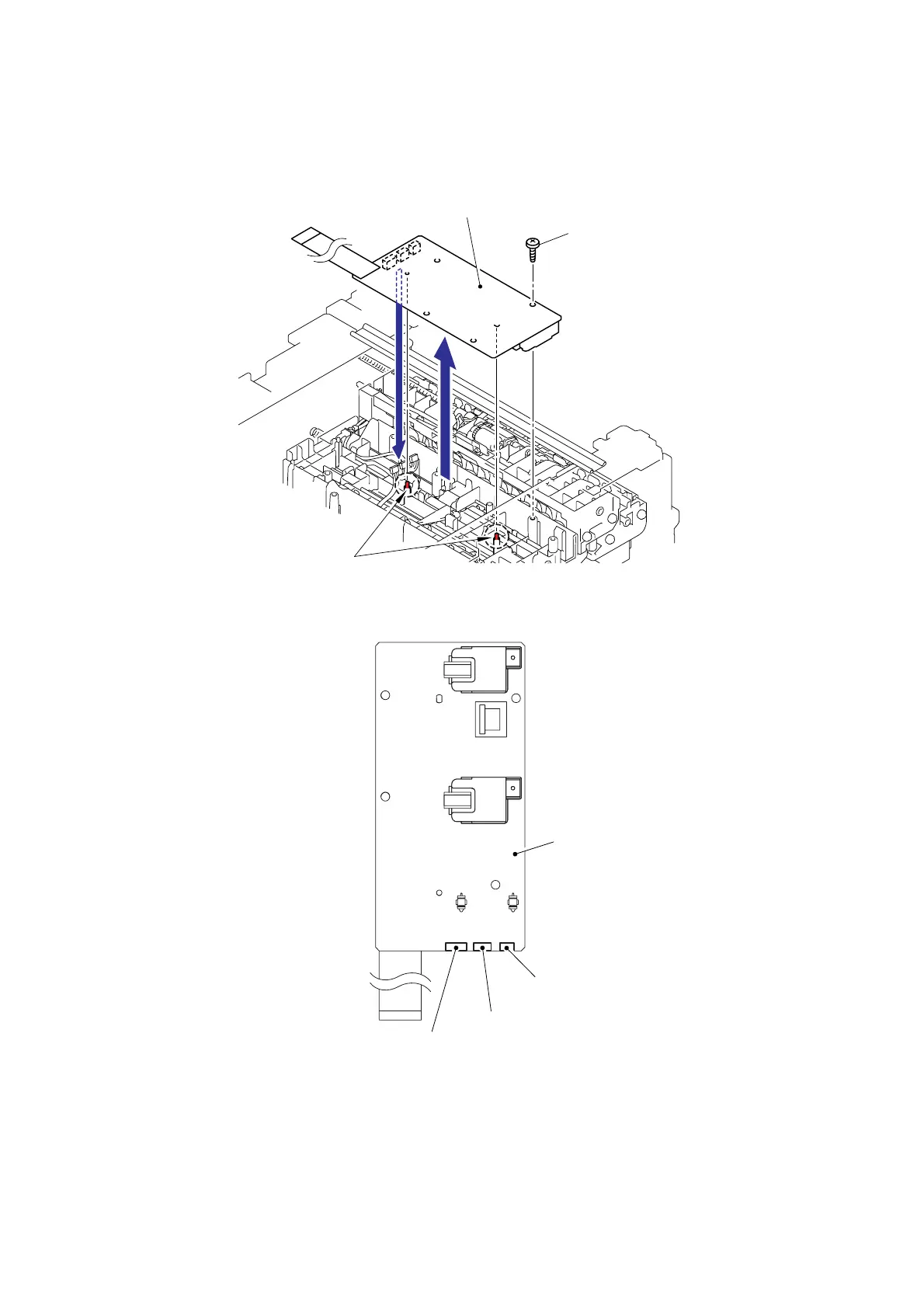

(3) Remove the bind B M4x12 Taptite screw, and then remove the High-voltage PS PCB
ASSY.
(4) Disconnect the three connectors from the High-voltage PS PCB ASSY.
Fig. 5-94
Fig. 5-95
Taptite, bind B M4x12
High-voltage PS PCB ASSY
Toner LED PCB connector
High-voltage PS PCB ASSY
PE EG sensor connector
MP PE sensor connector
Pins
