HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-43

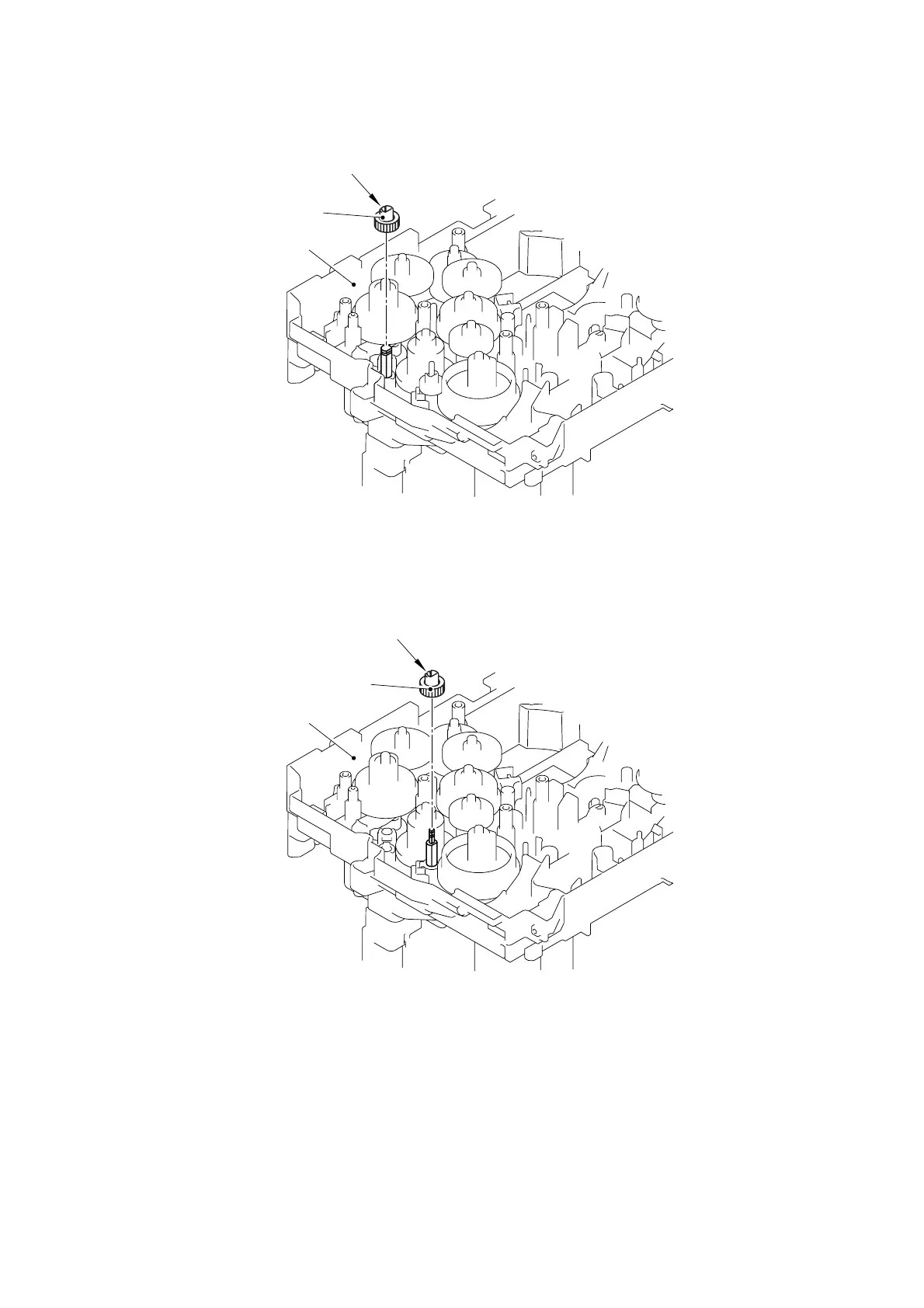

(3) Remove the Gear 17 (black).
Fig. 5-59
(4) Remove the Gear 17 (white).
Fig. 5-60
Gear 17 (black)
Hook
Frame L
Gear 17 (white)
Hook
Frame L
