CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-24

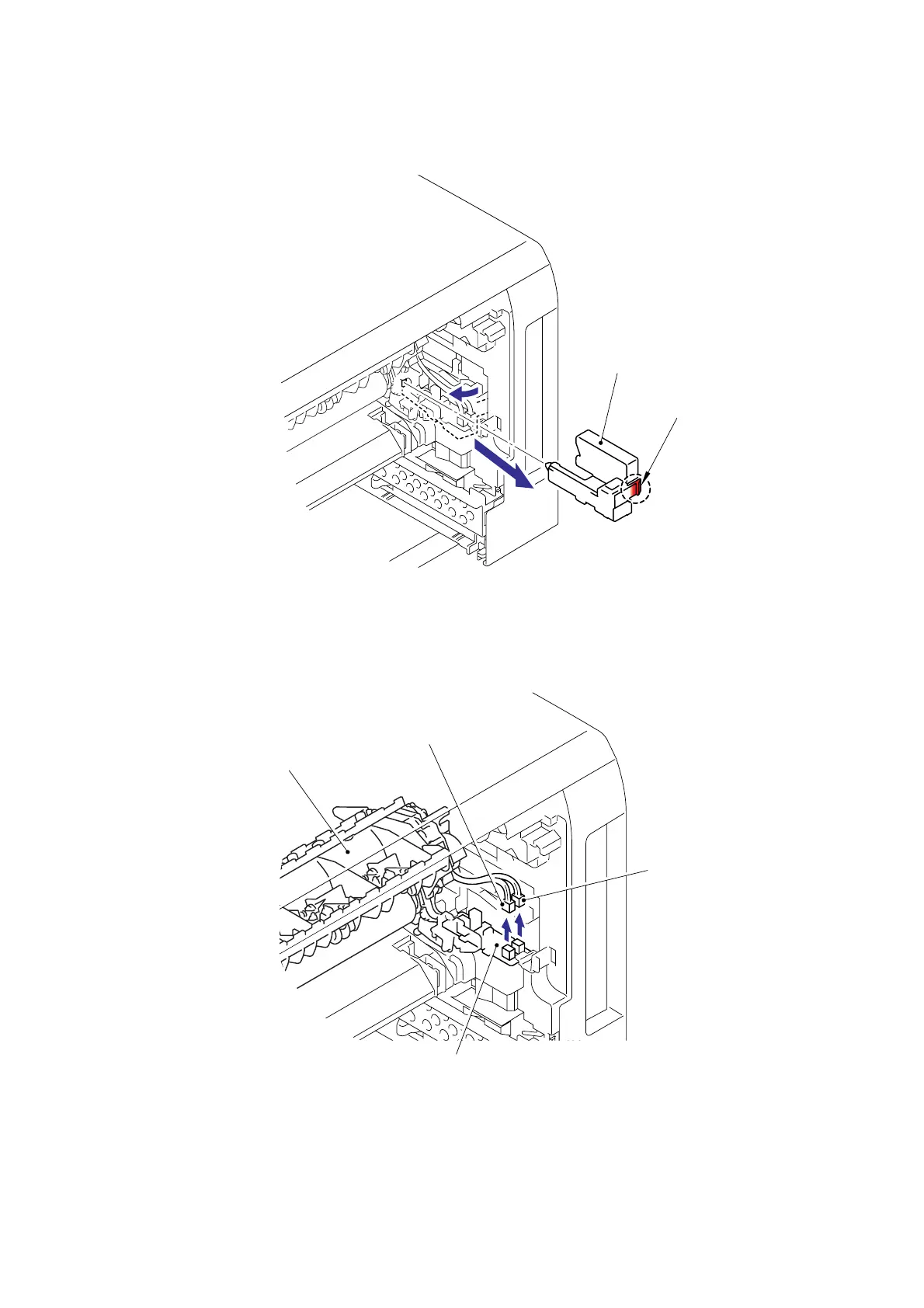

(3) Pull the FU harness cover 2 to the direction of 3a while pressing the Hook and pull out the
FU harness cover 2 from the back of the printer.
Fig. 5-19
(4) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 5-20
Hook
FU harness cover 2
3a
3b
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Relay rear PCB ASSY
To Next Page
