CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-22

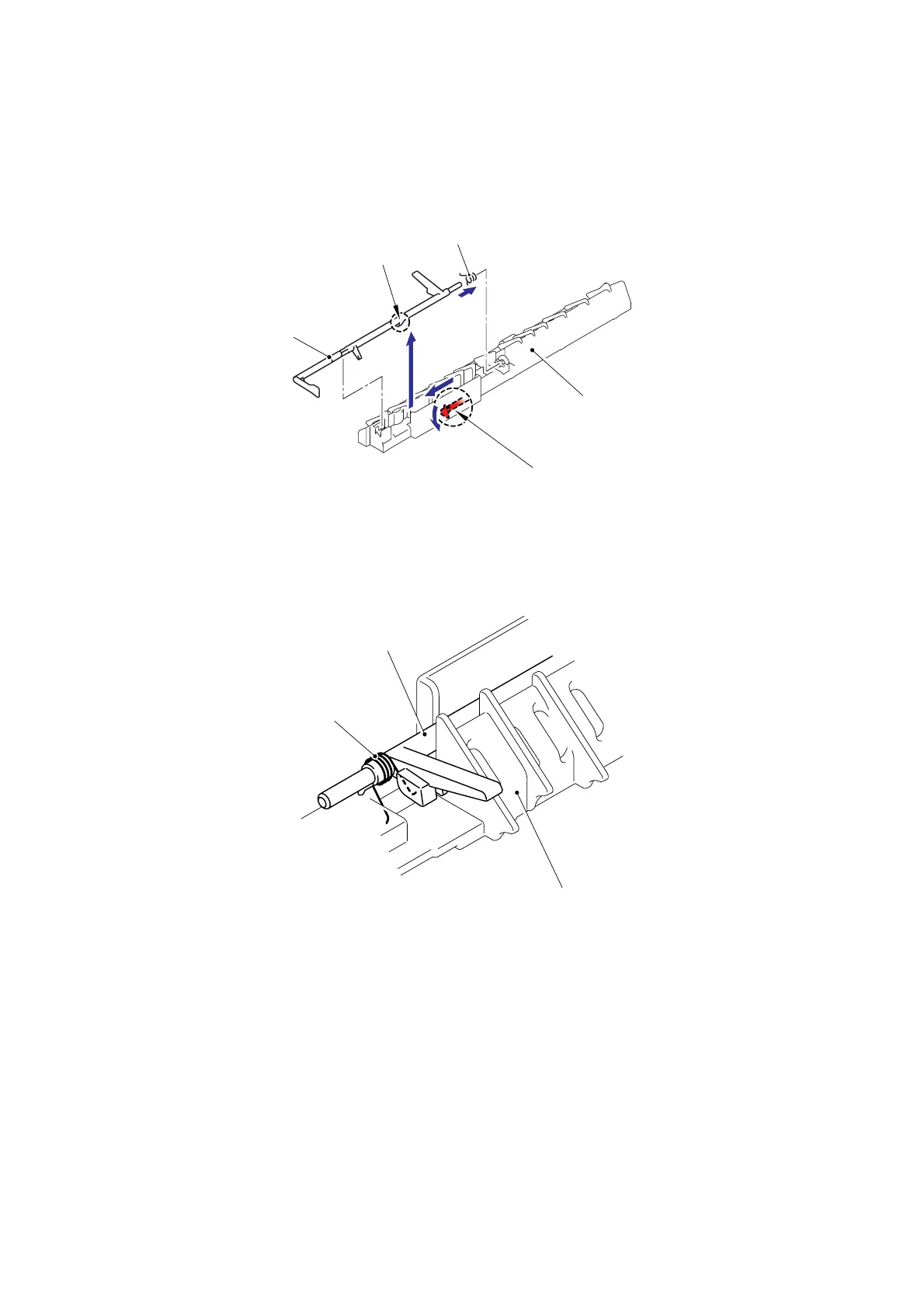

(7) Push the Hook of the Sub outer chute (indicated by the arrow 7a), and move the Eject
actuator to the direction of 7b.
(8) Lift up the Eject actuator to remove.
(9) Remove the Eject actuator spring.
Fig. 5-15
Assembling Note:
When assembling the Eject actuator spring, ensure that its direction is correct referring to the
figure below.
Fig. 5-16
Sub outer chute
Hook
9
Rib
Eject actuator
Eject actuator spring
Sub outer chute
Eject actuator spring
Eject actuator
8
7b
7a
To Next Page
