(4) Remove the LT solenoid harness from the hooks of the LT drive unit.

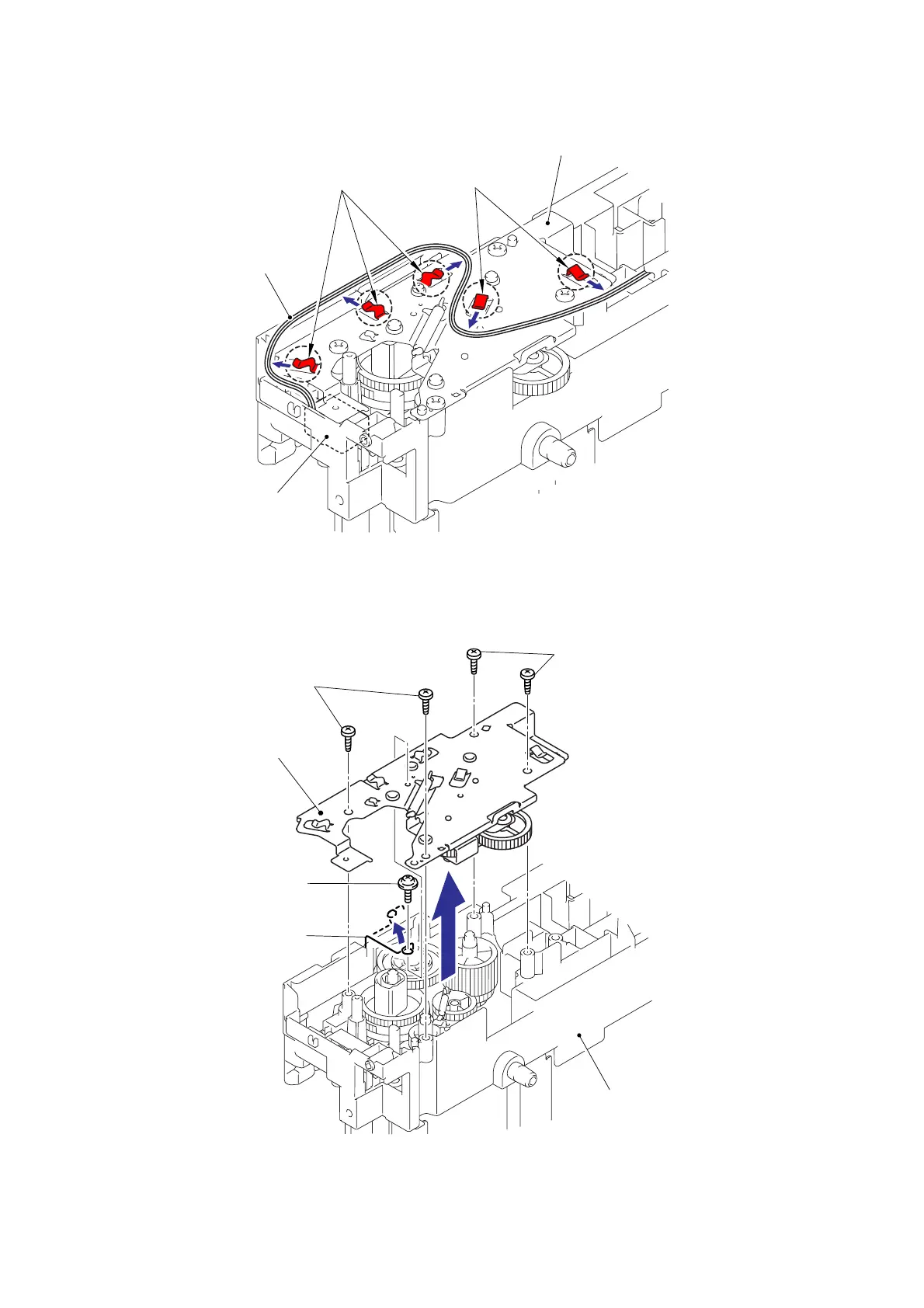

Fig. 5-147
(5) Remove the cup S M3x6 Taptite screw.
(6) Remove the four bind B M4x12 Taptite screws, and then remove the LT drive unit.
Fig. 5-148
LT frame L
Taptite, bind B M4x12
Taptite, cup S M3x6
Taptite, bind B M4x12
LT drive unit
Ground wire top
LT drive unit
LT solenoid harness
Hooks
Hooks
LT solenoid ASSY
