Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-88

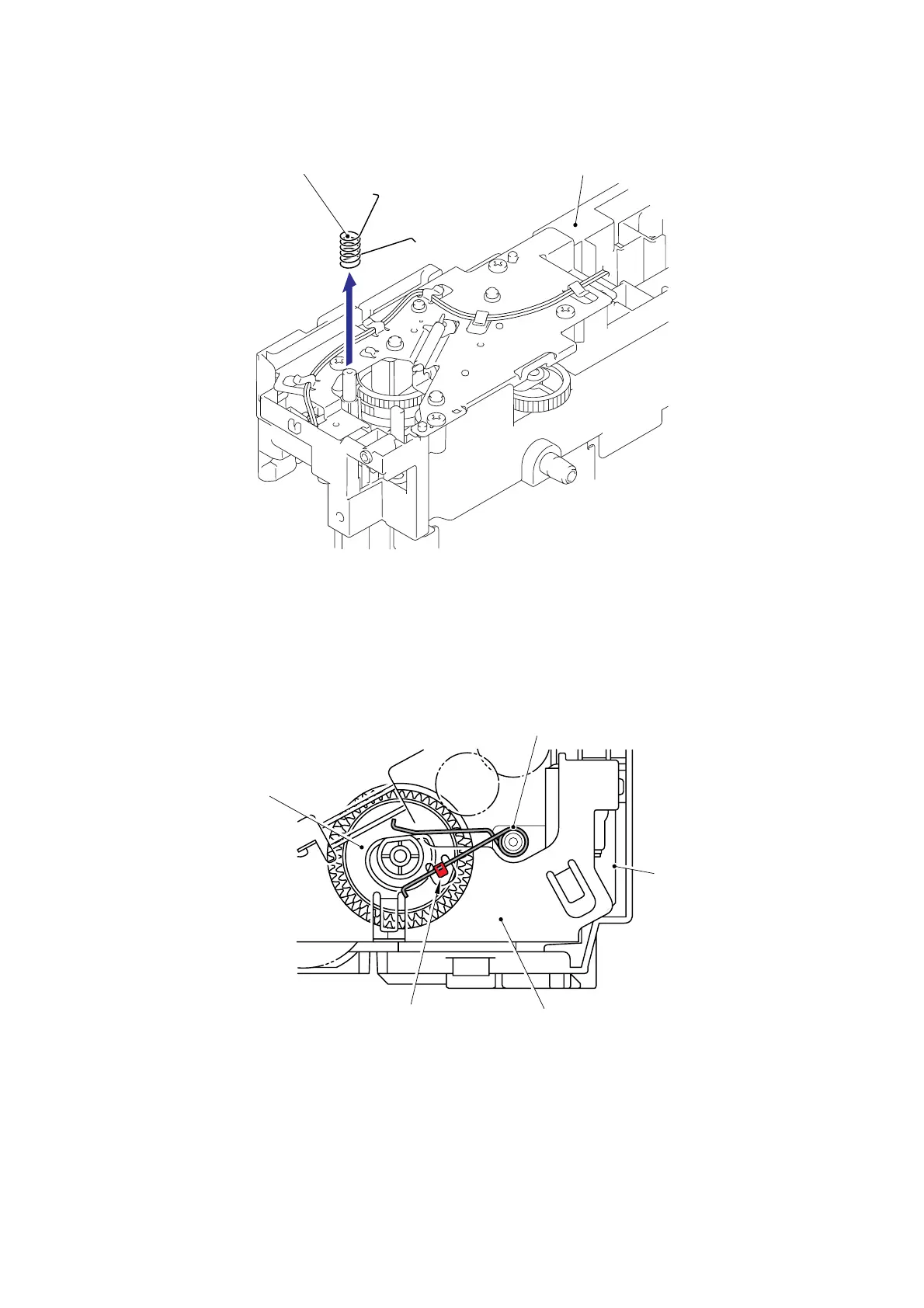

(3) Remove the T1 sector gear spring LT from the LT frame L.
Fig. 5-145
Assembling Note:
When assembling the T1 sector gear spring LT, ensure that its direction is correct
referring to the figure below.
Fig. 5-146
LT frame L
T1 sector gear spring LT
LT drive unit
T1 sector gear
T1 sector gear spring LT
LT frame L
Hook
