HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-27

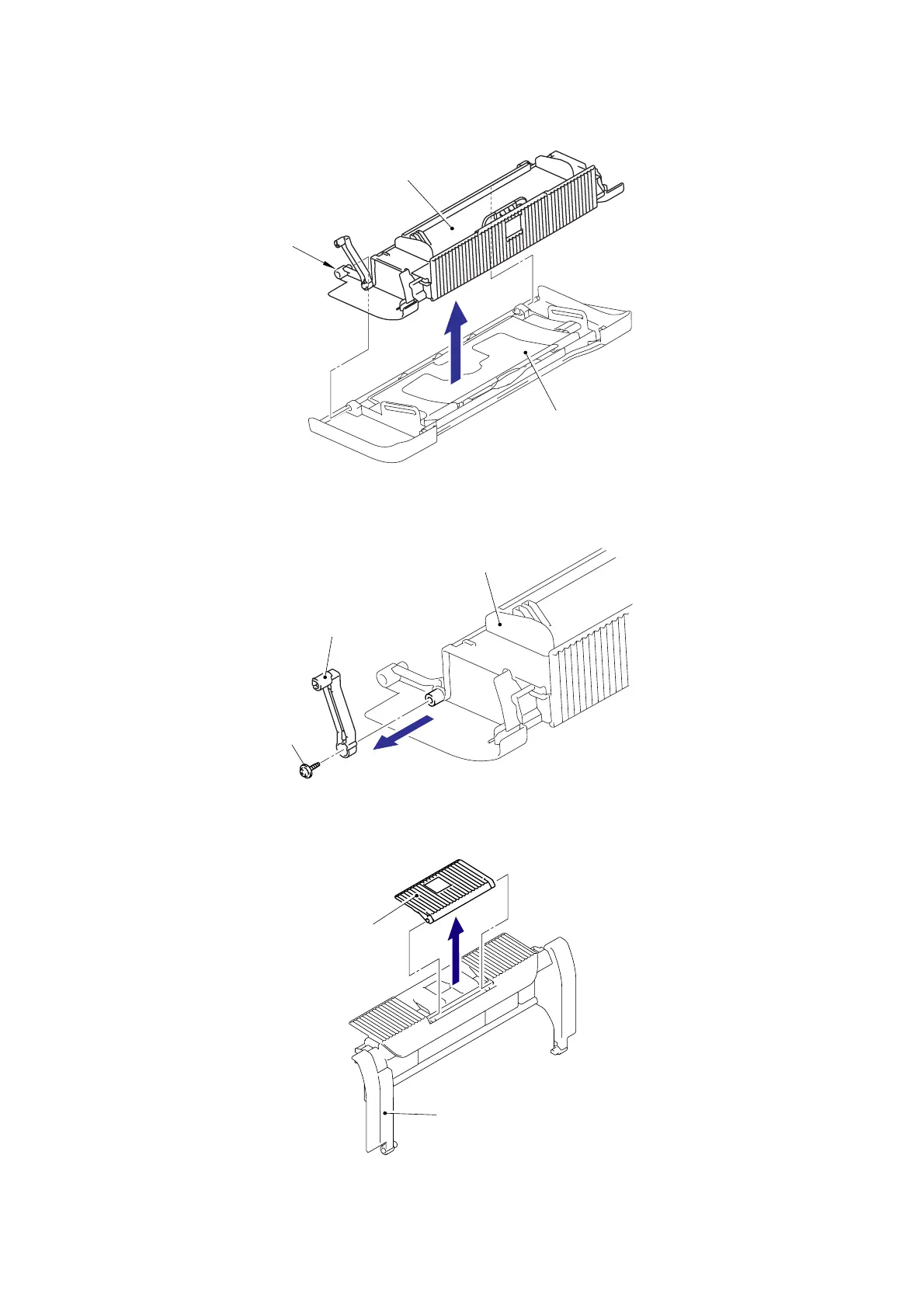

(5) Pull the Arm outwards and remove the Process cover ASSY from the MP tray cover
ASSY.
Fig. 5-25
(6) Remove the cup B M4x10 Taptite screw, and then remove the Process cover stopper.
Fig. 5-26
(7) Remove the Support lap from the Process cover.
Fig. 5-27
Process cover ASSY
MP tray cover ASSY
Process cover stopper
Support lap
Process cover
Taptite, cup B M4x10
Process cover
A
rm
