Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-52

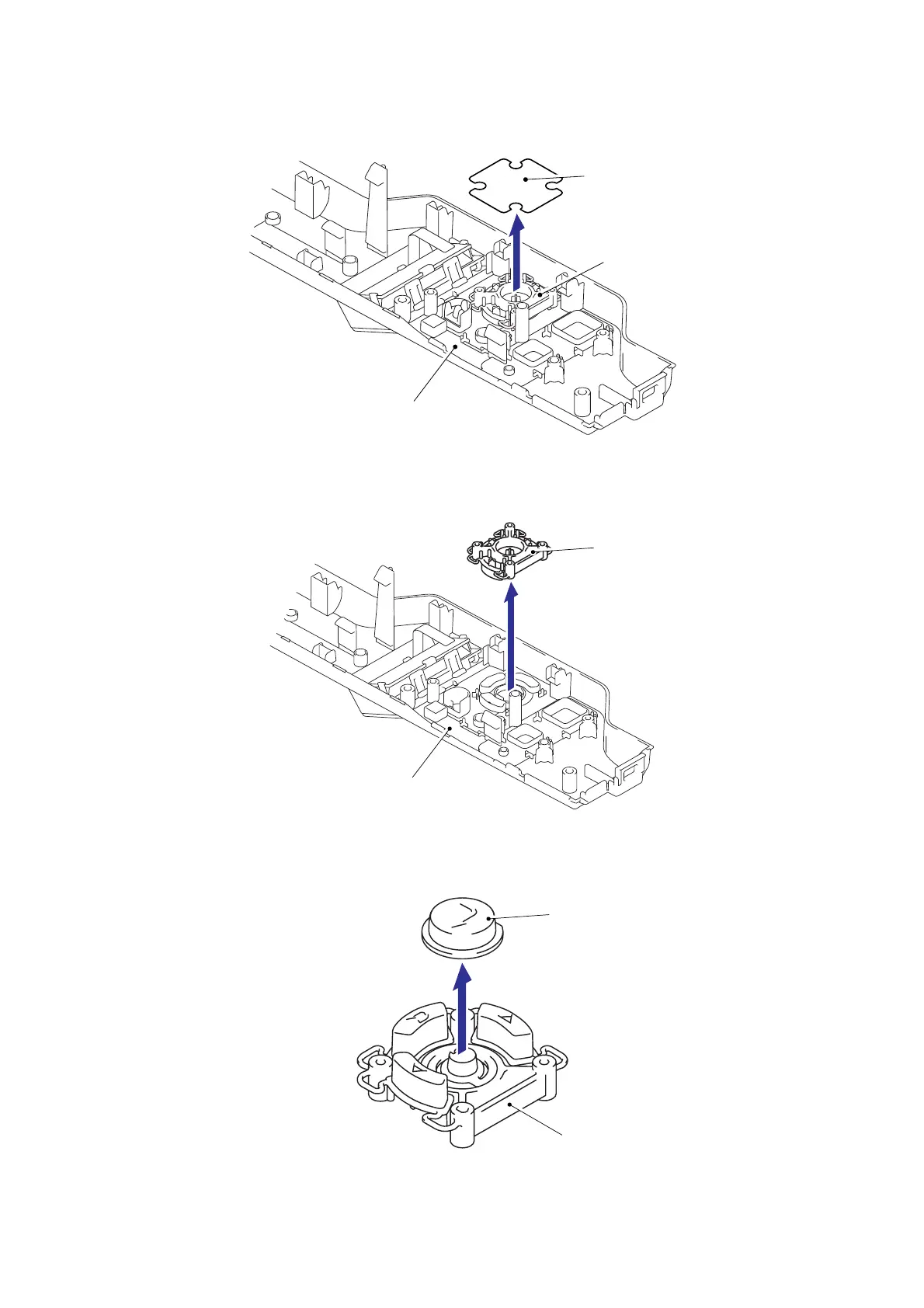

(4) Remove the Set key film.
Fig. 5-76
(5) Remove the Set key printed ASSY from the Top cover 2 printed ASSY.
Fig. 5-77
(6) Remove the Key top from the Set key printed ASSY.
Fig. 5-78
Top cover 2 printed ASSY
Set key printed ASSY
Key top
Set key printed ASSY
Top cover 2 printed ASSY
Set key printed ASSY
Set key film
