CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-58

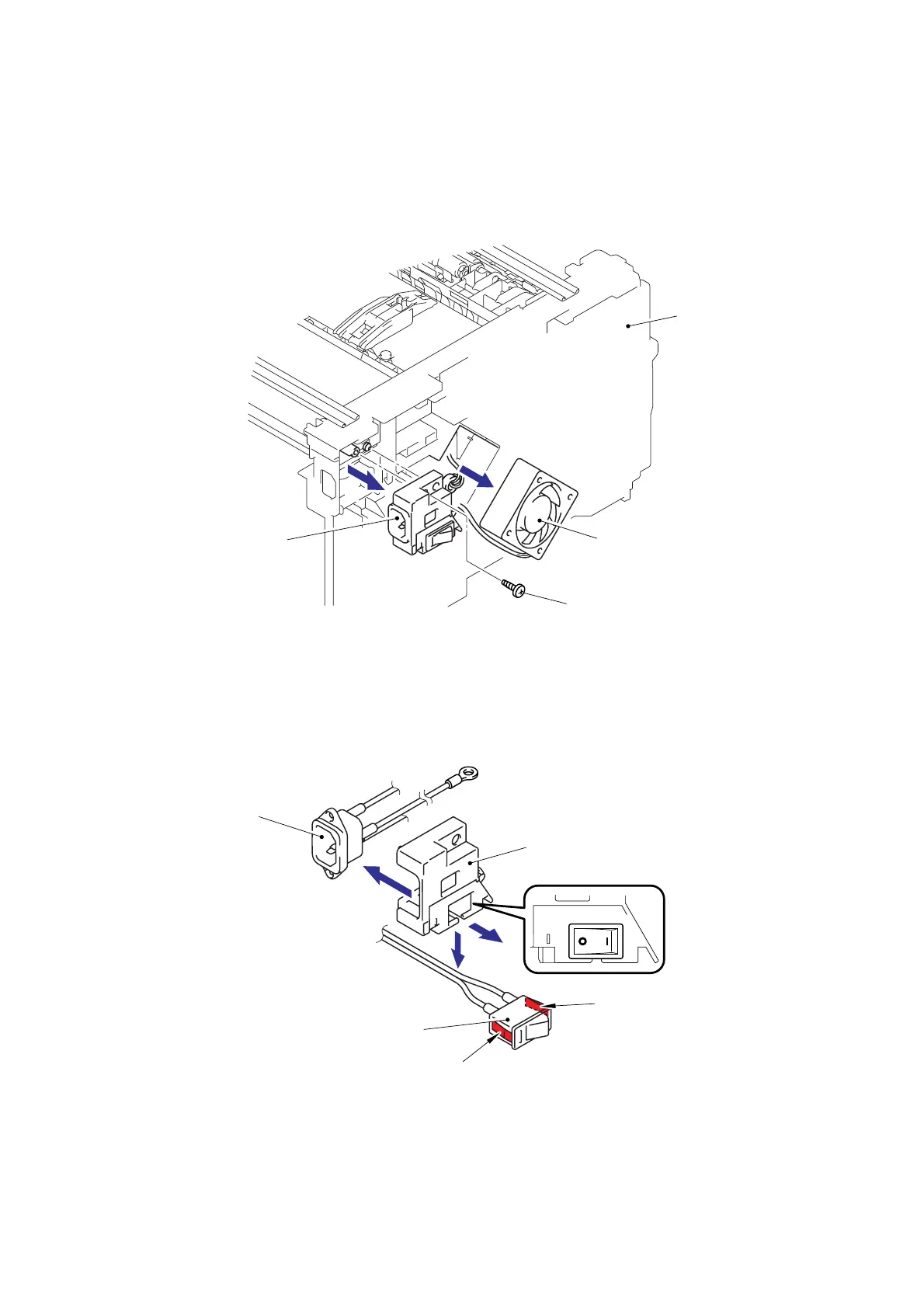

(5) Remove the bind B M4x12 Taptite screw, and then remove the SW holder ASSY.
(6) Float the Fan motor 60 unit LV from the Frame R.
NOTE:
Do not remove the Fan motor 60 unit LV at the above step.
Fig. 5-89
(7) Remove the Inlet harness ASSY from the SW holder.
(8) Press the Hooks on both sides of the Power supply switch, pull out the Power supply
switch to the direction of 8a and pull the wire out of the groove on the SW holder.
Fig. 5-90
Assembling Note:
When assembling the power supply switch onto the SW holder, give attention to the direction
of the switch.
SW holder ASSY
Fan motor 60 unit LV
Taptite, bind B M4x12
Frame R
6
5
<Right side>
SW holder
Power supply switch
Inlet harness ASSY
Hook
Hook
7
8a
8b
To Next Page
