HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-37
(9) Pull up the back side of the Separation pad ASSY.
(10) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(11) Pull up the Separation pad ASSY.
(12) Remove the Separation pad spring.

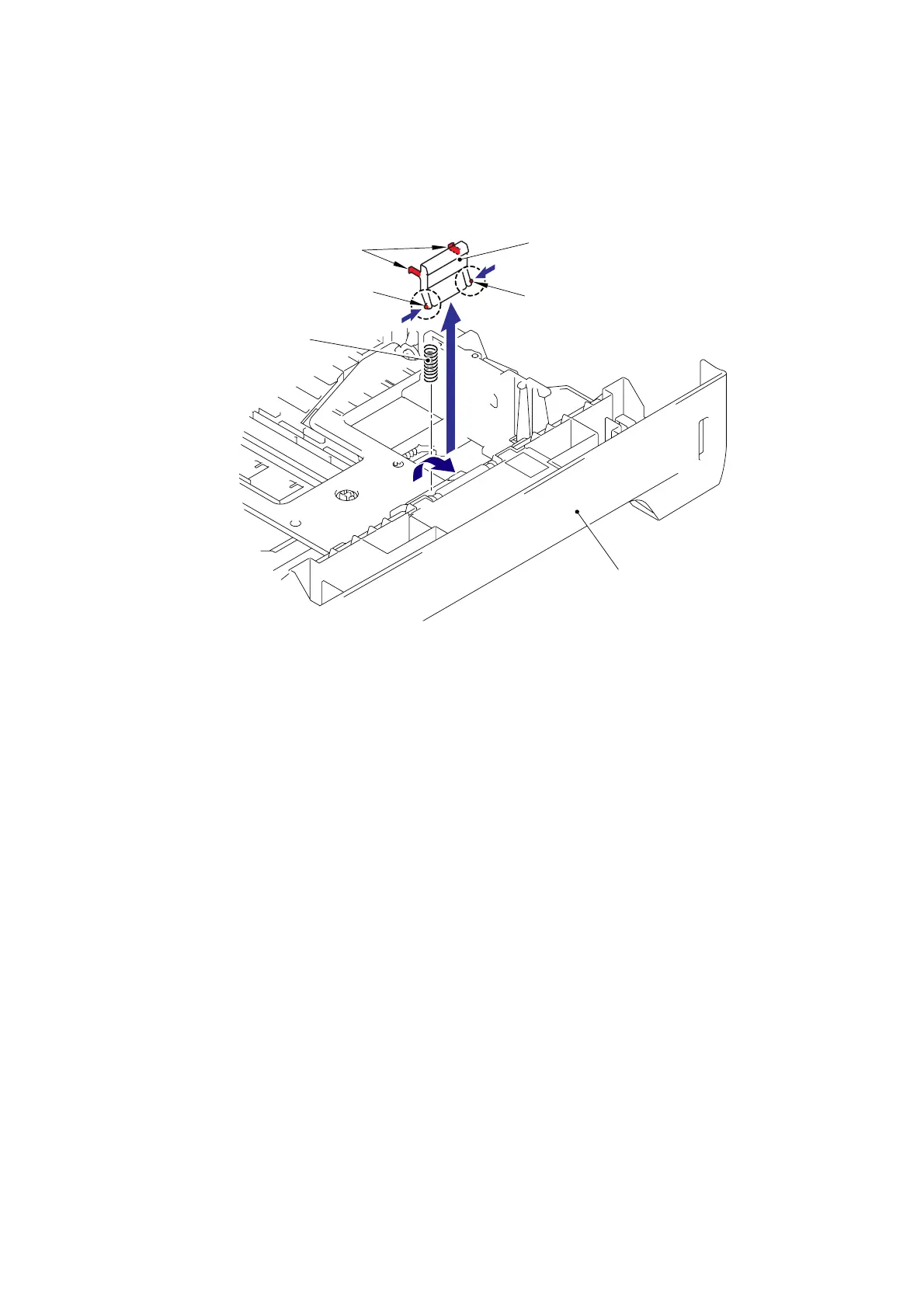

Fig. 3-63
Paper tray
Separation pad ASSY
Hook
Hook
Hooks
10
10
9
11
Separation pad spring
<Front side>
