Brother MFC-685CW User Manual

Troubleshooting and Routine Maintenance
147
B

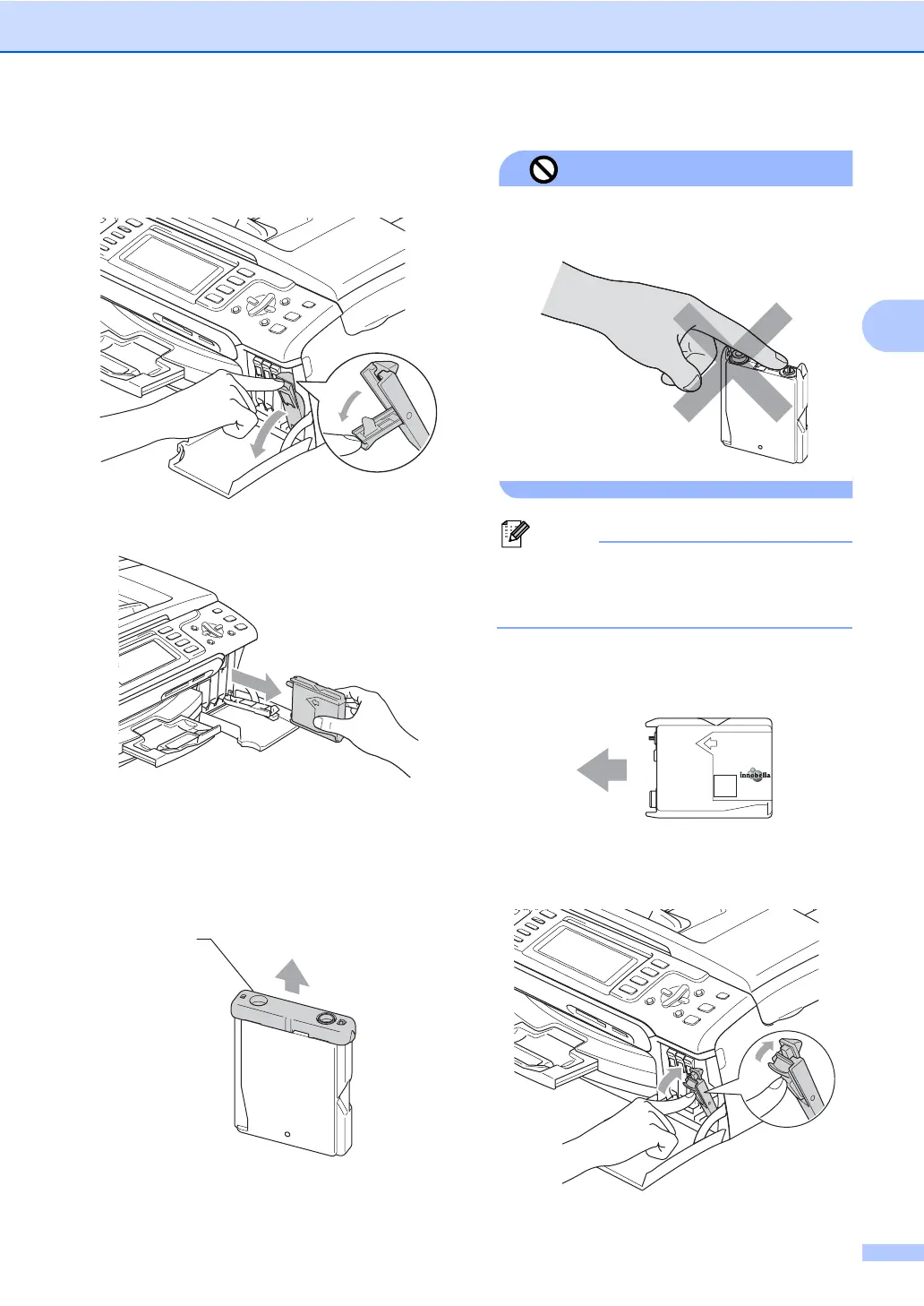

b Pull the lock release lever down and
take out the ink cartridge for the color
shown on the LCD.
c Open the new ink cartridge bag for the
color shown on the LCD, and then take
out the ink cartridge.
d Remove the protective yellow cap (1).
Improper Setup
DO NOT touch the area shown in the
illustration below.
Note
If the protective yellow caps come off
when you open the bag, the cartridge will
not be damaged.
e Each color has its own correct position.
Insert the ink cartridge in the direction of
the arrow on the label.
f Lift the lock release lever and push it
until it clicks, and then close the ink
cartridge cover.
1
M
brother

Brother MFC-685CW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 12000 DPI
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (color, normal quality, A4/US Letter)	25 ppm
Digital sender	No
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Image formats supported	BMP
Optical scanning resolution	600 x 2400 DPI
PC free copying	Yes
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	14.4 Kbit/s
Total input capacity	100 sheets
Total output capacity	50 sheets
Display	LCD
Display diagonal	3.3 \
Market positioning	Home & office
Sound power level (standby)	50 dB
Paper tray media types	Glossy paper, Photo paper, Plain paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5
Photo paper sizes (imperial)	5x7, 5x8 \
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	USB
Dimensions (WxDxH)	557 x 254 x 452 mm
Power requirements	AC 120V 50/60Hz
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Power consumption (standby)	8 W
Power consumption (average operating)	34 W
Operating temperature (T-T)	50 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
