Brother MFC-685CW User Manual

Troubleshooting and Routine Maintenance
143
B

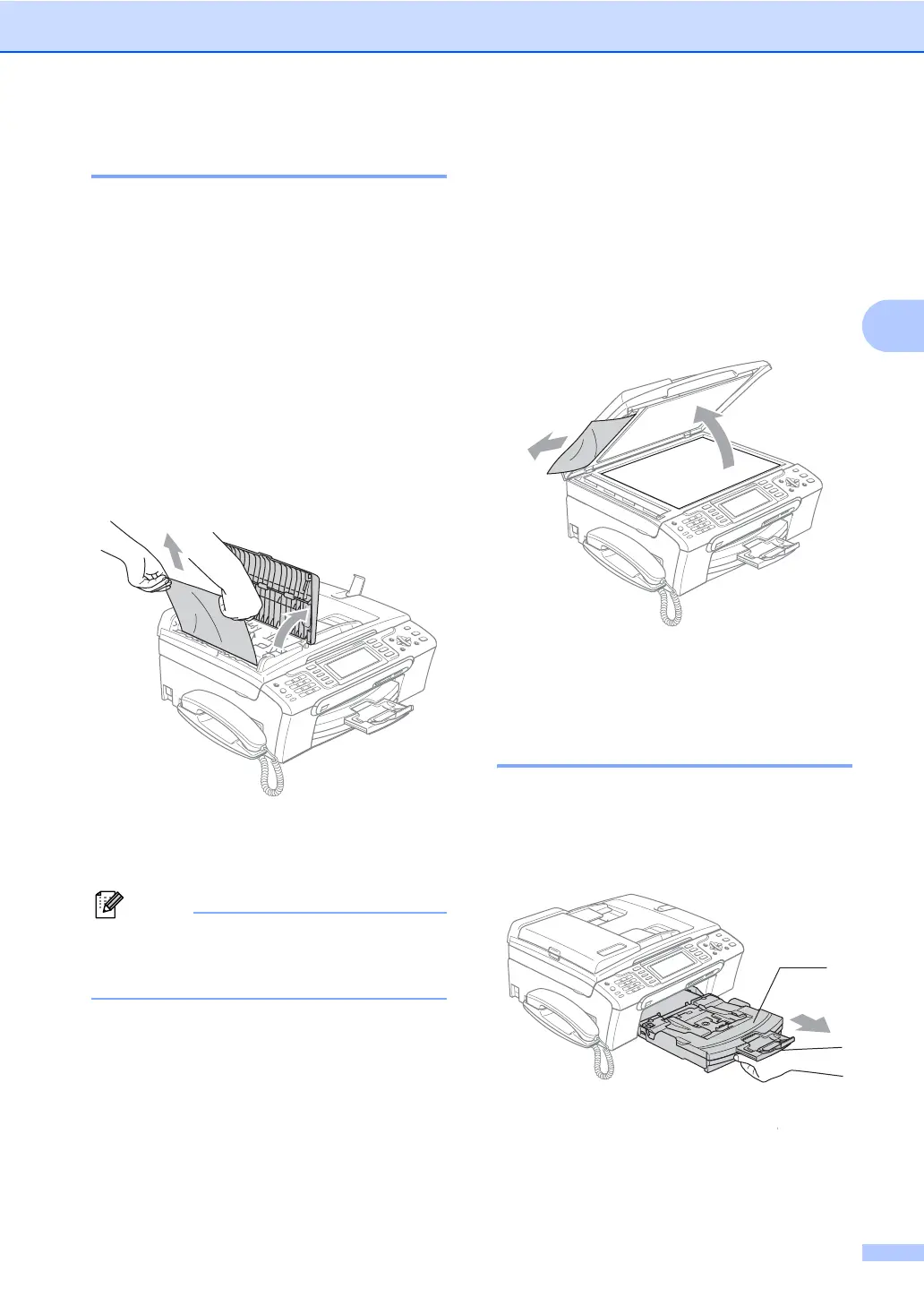

Document jam B
Documents can jam in the ADF unit if they are
not inserted or fed properly, or if they are too
long. Follow the steps below to clear a
document jam.
Document is jammed in the top of the
ADF unit
B
a Take out any paper from the ADF that is
not jammed.
b Open the ADF cover.
c Pull the jammed document up and to the
left.
d Close the ADF cover.
e Press Stop/Exit.
Note
To avoid document jams close the ADF
cover properly by pressing it down in the
middle.
Document is jammed inside the ADF
unit
B
a Take out any paper from the ADF that is
not jammed.
b Lift the document cover.
c Pull the jammed document out to the
left.
d Close the document cover.
e Press Stop/Exit.
Printer jam or paper jam B
Take out the jammed paper depending on
where it is jammed in the machine.
a Pull the paper tray (1) out of the
machine.
1

Brother MFC-685CW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 12000 DPI
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (color, normal quality, A4/US Letter)	25 ppm
Digital sender	No
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Image formats supported	BMP
Optical scanning resolution	600 x 2400 DPI
PC free copying	Yes
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	14.4 Kbit/s
Total input capacity	100 sheets
Total output capacity	50 sheets
Display	LCD
Display diagonal	3.3 \
Market positioning	Home & office
Sound power level (standby)	50 dB
Paper tray media types	Glossy paper, Photo paper, Plain paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5
Photo paper sizes (imperial)	5x7, 5x8 \
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	USB
Dimensions (WxDxH)	557 x 254 x 452 mm
Power requirements	AC 120V 50/60Hz
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Power consumption (standby)	8 W
Power consumption (average operating)	34 W
Operating temperature (T-T)	50 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
