3-39
Confidential
(14) Release the two Hooks and remove the Tube binder from the Head/carriage unit.
Note: After removal of the Head joint, immediately wrap the Head joint in a clean,
lintfree cloth and keep it higher than the Ink refill ASSY to prevent ink remaining
in the Ink supply tubes from leaking and the machine from getting stained with
leaked ink.
Assembling Note: Pass the section “A” of the Tube binder beneath the CR encoder
strip to prevent it from coming into contact with the CR encoder
strip.

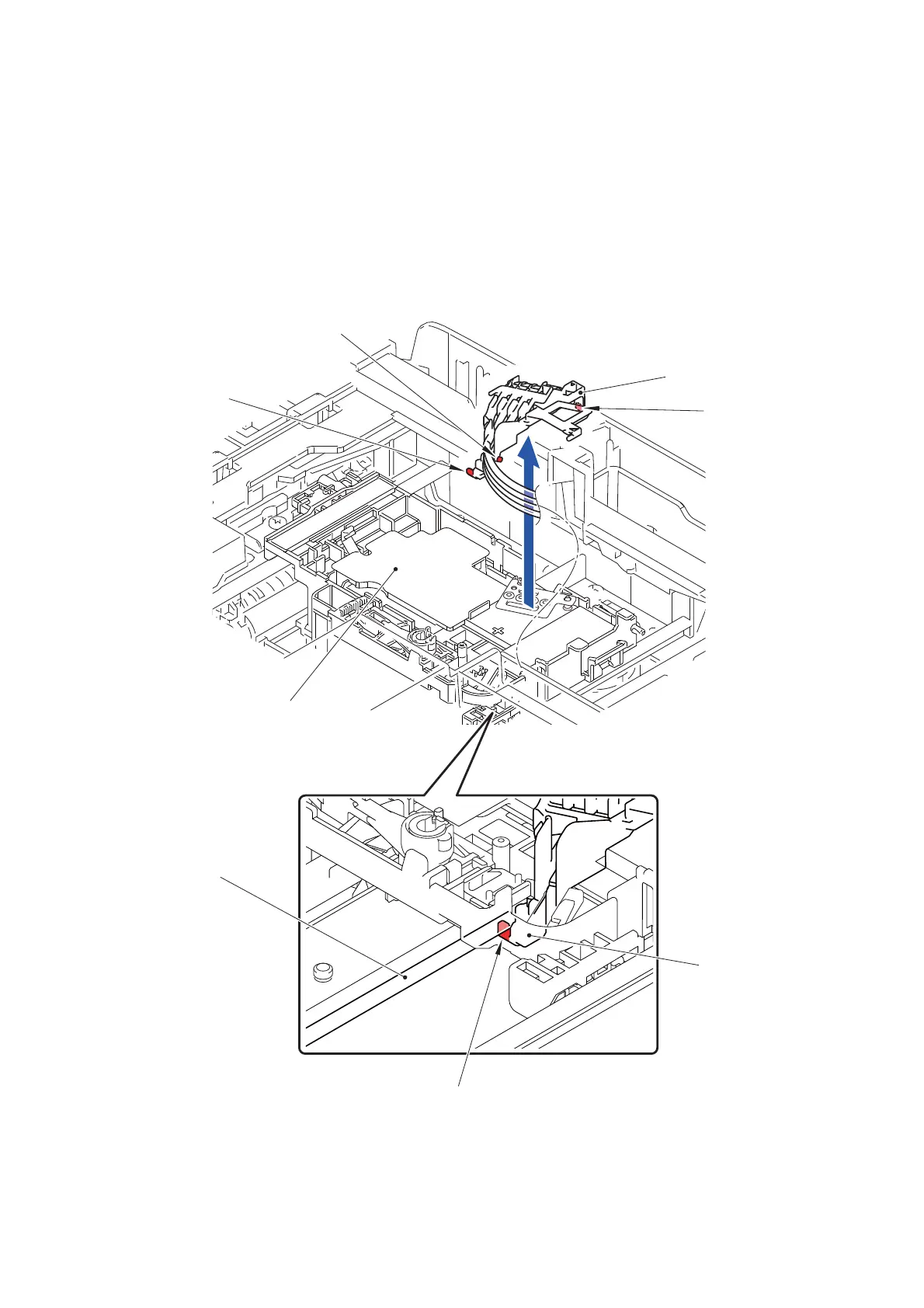

Fig. 3-10
Tube binder
Head/carriage unit
Tube binder
CR encoder strip
Hook
Hook
“A”
“A”
To Next Page
