Brother MFC-J6935DW

3-40
Confidential

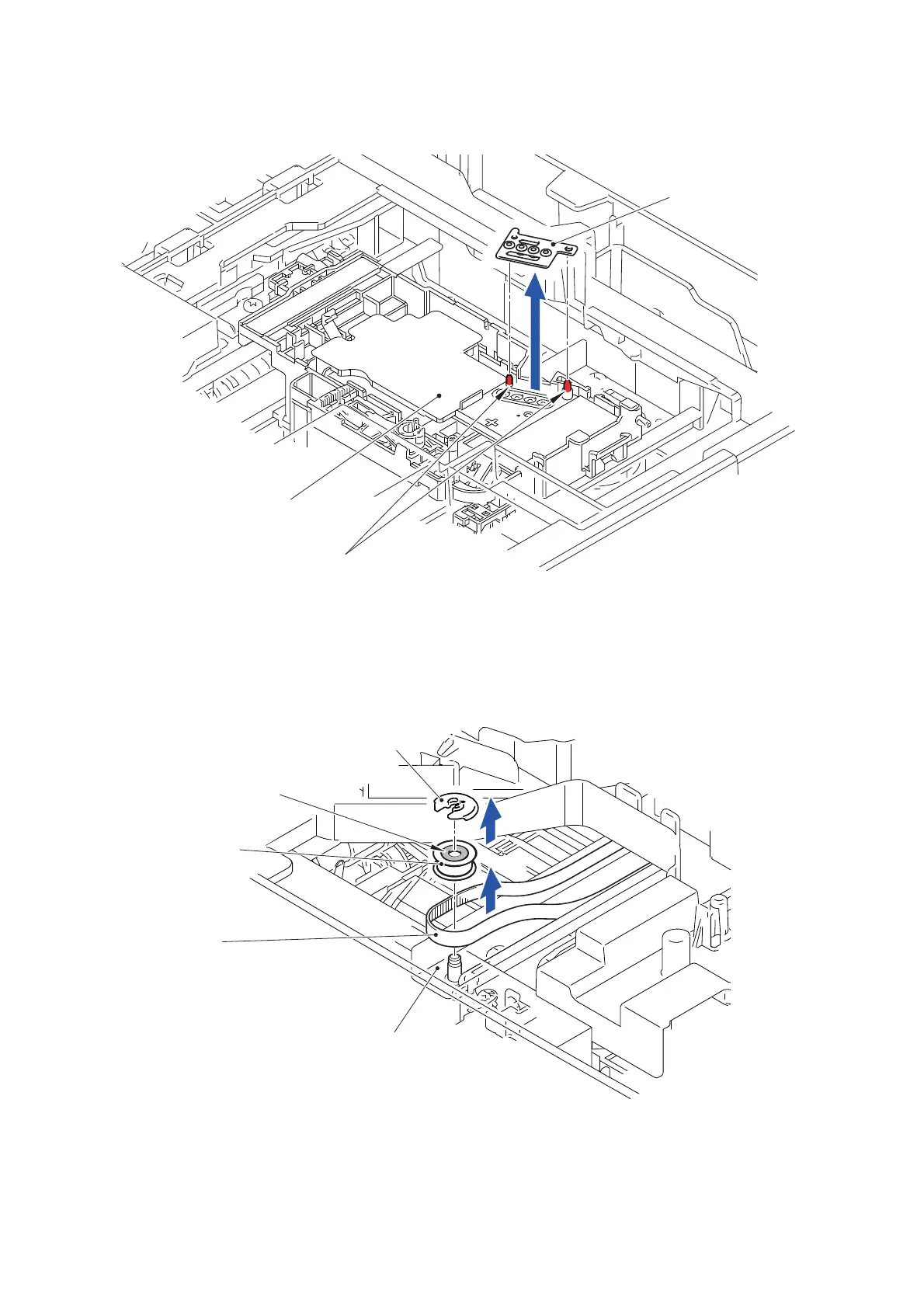

(15) Remove the Head joint rubber from the Head/carriage unit.
Fig. 3-11
(16) Remove the Plastic retaining ring from the Idle pulley.
(17) Remove the Idle pulley from the CR frame ASSY.
Note: Be careful not to lose the Washer which easily comes off from the
Idle pulley.
Fig. 3-12
Head joint rubber
Head/carriage unit
Bosses
Plastic retaining ring
CR timing belt
Idle pulley
CR frame ASSY
Washer
16
17
