Brother MFC-J6935DW

3-41
Confidential

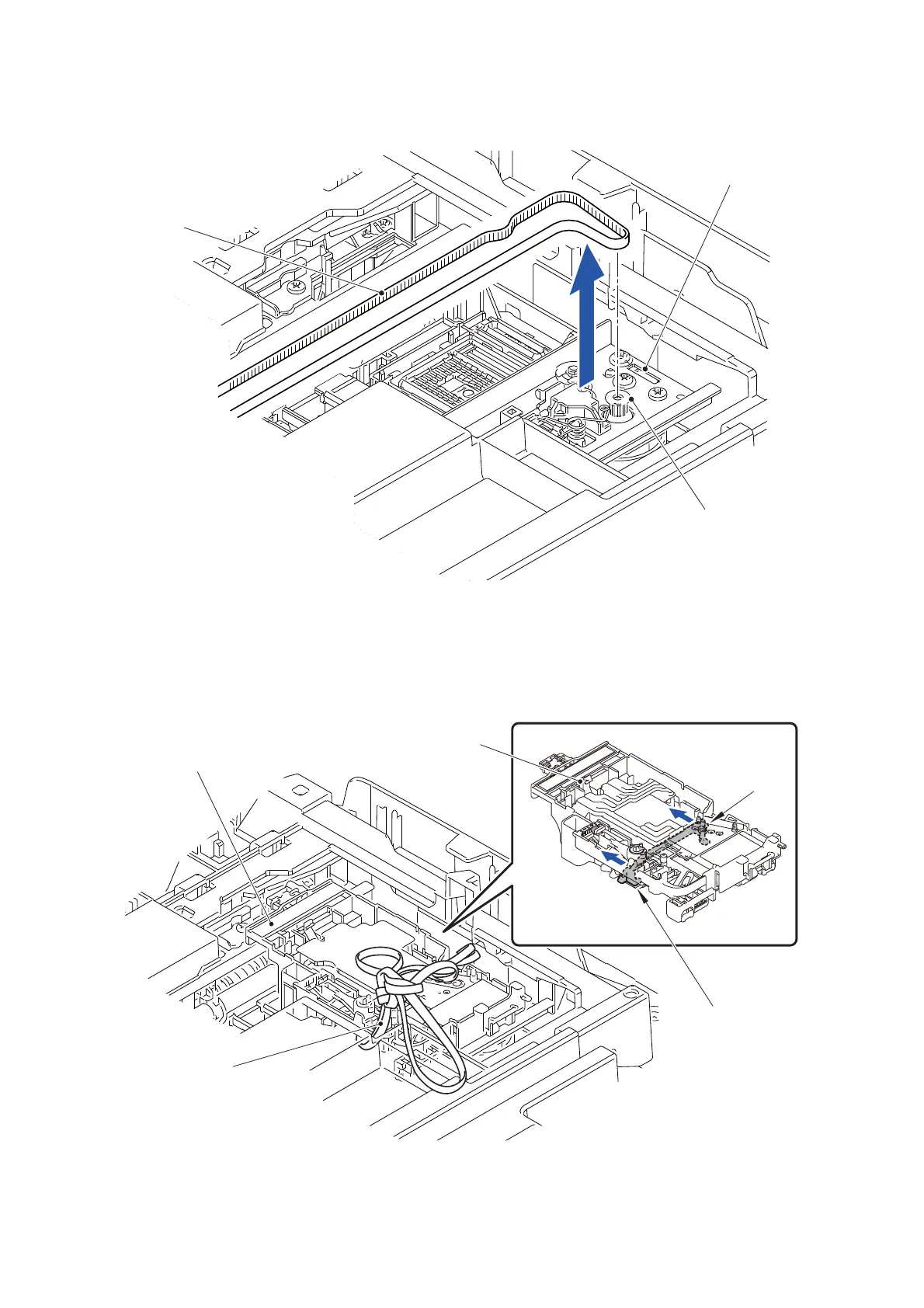

(18) Remove the CR timing belt from the CR motor pulley.
Fig. 3-13
(19) As shown below, loosely tie the CR timing belt in a bundle on the Head/carriage
unit.
(20) Move the two Locks in the direction of the arrow.
Fig. 3-14
CR timing belt
CR motor pulley
CR frame ASSY
CR timing belt
Head/carriage unit
Head/carriage unit
Lock
Lock
