(3) Turn the Document scanner unit right side up.
(4) Release the four Hooks and lift the rear of the Scanner top cover ASSY as shown
in the figure.
(5) Release the four front Hooks.
(6) While holding down the Lock lever, remove the Scanner top cover ASSY from the
Scanner base.

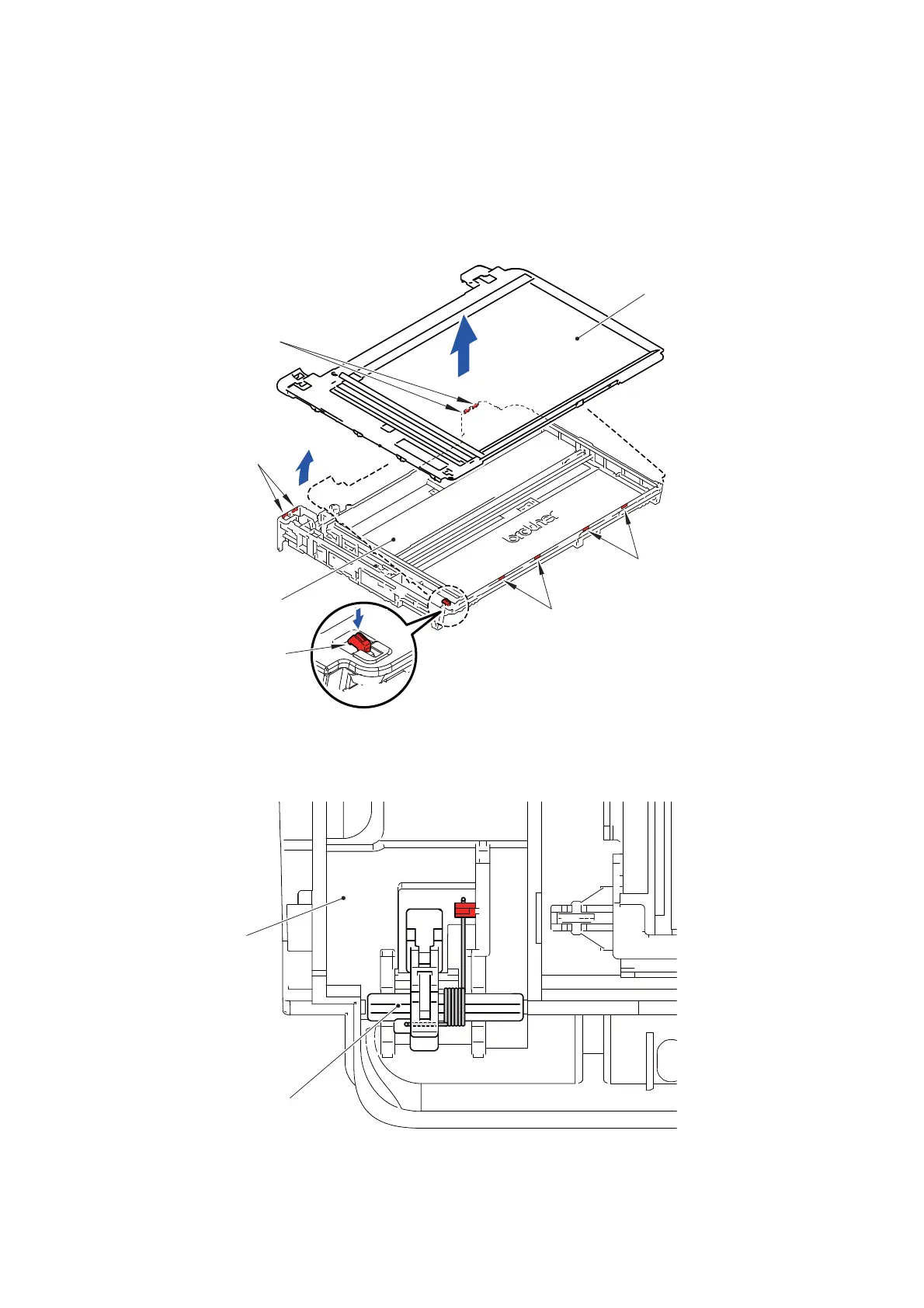

Fig. 3-74
Note: Be careful not to lose the Lock lever. If the Lock lever comes off, mount it as
shown in the figure.
Fig. 3-75
Scanner top cover ASSY
Hooks
Hooks
Lock lever
Hooks
Scanner base
Hooks
