(7) Remove the two CIS roller holder from the First side CIS unit.
(8) Disconnect the First side CIS flat cable from the First side CIS unit and remove the
First side CIS unit from the CIS holder.
Note: When removing the First side CIS unit, be careful not to lose the CIS spring.

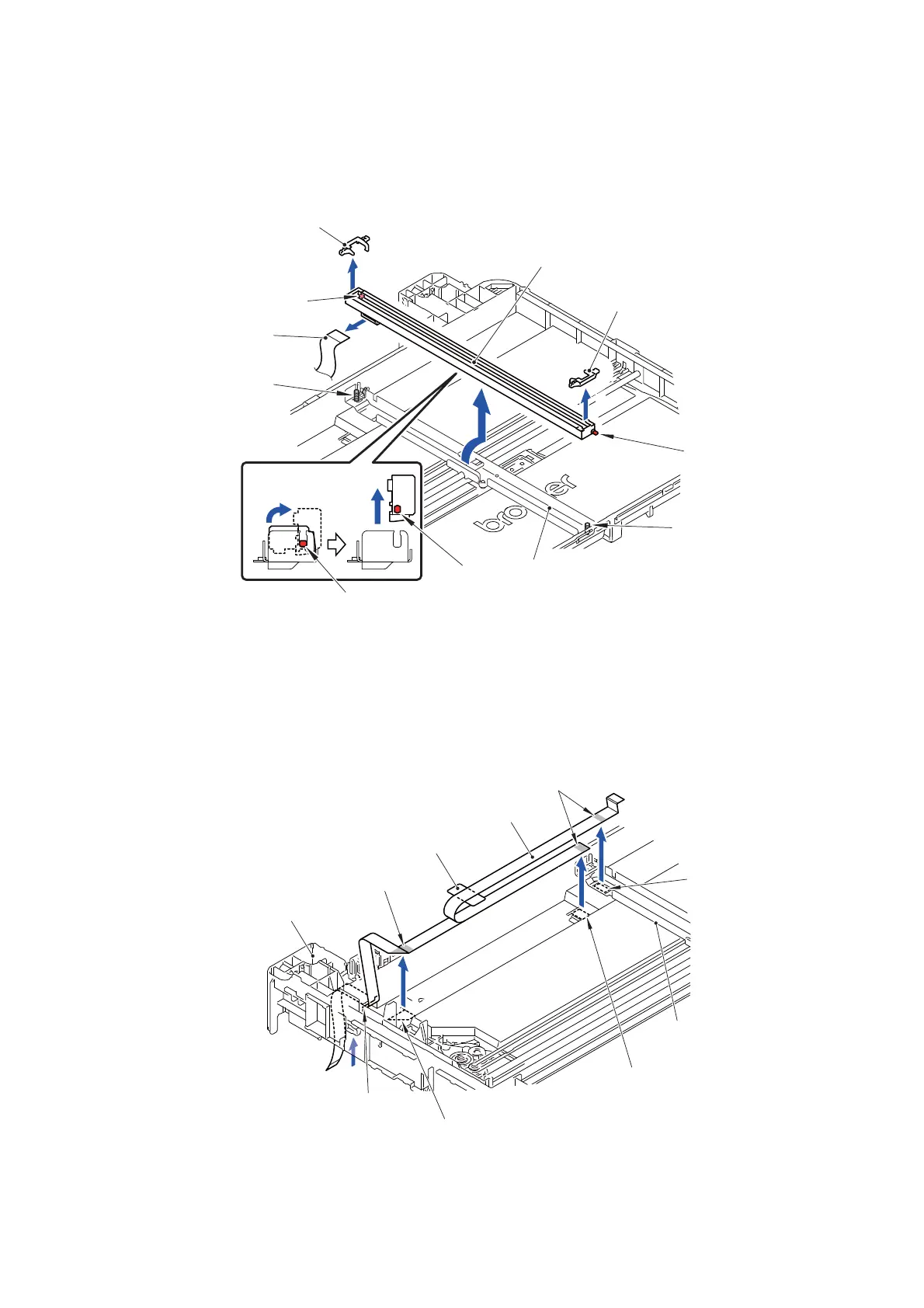

Fig. 3-76
(9) Peel off the First side CIS flat cable which is secured at three locations with the
Double-sided adhesive tape from the Scanner base ASSY.
(10)Pull out the First side CIS flat cable from the Hole of the Scanner base ASSY.
(11)Peel off the FFC film which is secured with Double-sided adhesive tape from the
First side CIS flat cable.
Fig. 3-77
First side CIS unit
Pin
CIS holder
Pin
First side CIS
flat cable
CIS spring
CIS spring
CIS roller holder
CIS roller holder
Pin
Pin
7
7
8a
8b
First side CIS flat cable
Scanner base ASSY
Hole
FFC film
CIS holder
Double-sided adhesive tape
Double-sided adhesive tape
Double-sided adhesive tape
attachment position
Double-sided adhesive tape attachment position
Double-sided
adhesive tape
attachment
position
9
9
9
10

Brother MFC-J6935DW Specifications

General

Type	all in one, copier, fax, scanner
Color	gray
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	500
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, ledger, executive, envelope (com-10, dl envelope, monarch), a3, a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Duplex Scan	yes
Fax Function	yes
Cartridges	lc3029bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, nfc, usb, wi-fi direct
OS Compatibility	windows 10, 8.1, 8, 7, vista; windows server 2012, 2012 r2, 2008, 2008 r2; os x v 10.11.x, 10.10.x, 10.9.5.x; hdd space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.7 inches
Height	14.7 inches
Width	22.6 inches
Net Weight	51.8 pounds
