(16)Remove the two screws (SCREW BIND M3x10 and TAPTITE CUP B M3x10) from
the Paper feed arm frame ASSY.
(17)Slide the section “A” of the Shaft slide ASSY in the arrow direction to move the
shaft.

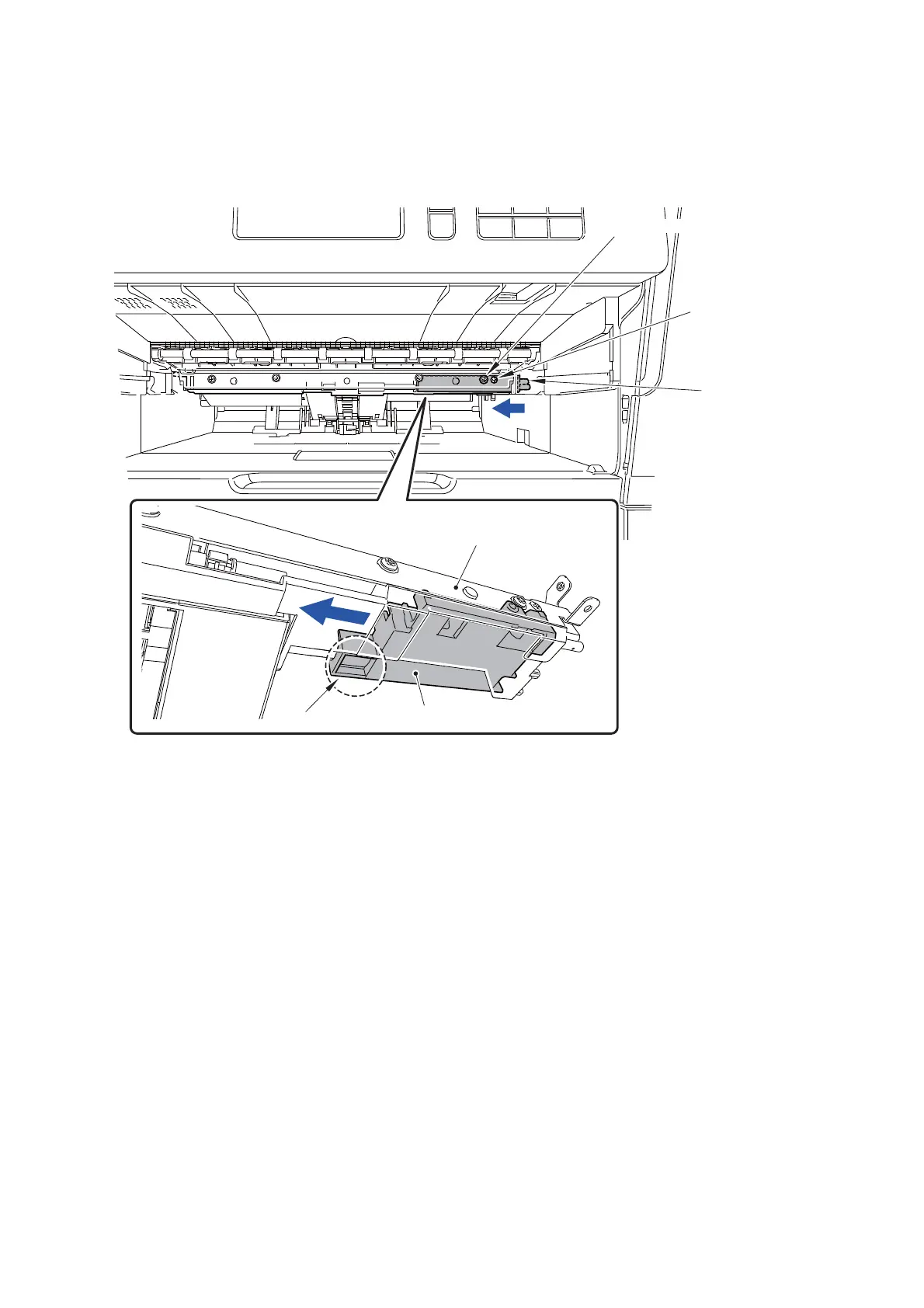

Fig. 3-125
Shaft slide ASSY
“A”
Shaft
Paper feed arm frame ASSY
TAPTITE CUP B M3x10
SCREW BIND
M3x10
