3-106
Confidential
Assembling Note:
- Check that the lever of the ASF drive frame is located at the position shown in the
figure.
- Fit the Bosses of the Maintenance unit into the CR frame ASSY and CR guide rail
properly.
- Turn the ASF gear and check that the shaft of the Paper feed arm frame ASSY
turns.

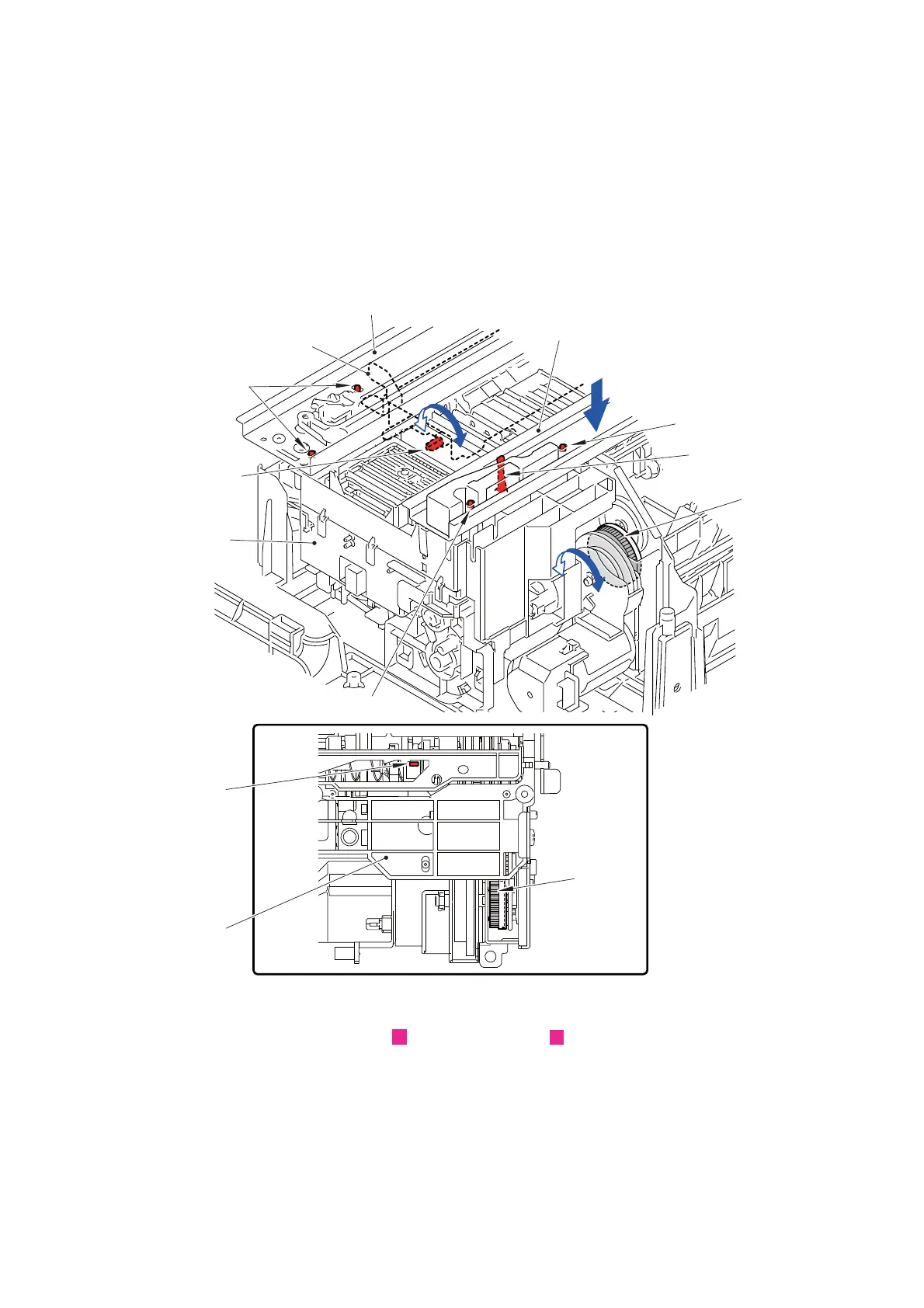

Fig. 3-128
Routing of harnesses: See Lower cover R”, Ink refill ASSY”.
Maintenance
Maintenance unit
unit
ASF gear
ASF gear
Paper feed arm frame ASSY
Shaft of the Paper
<A view>
A view
feed arm frame ASSY
Lever of the
ASF drive frame
Boss
CR guide rail
Boss
Bosses
CR frame ASSY
Lever of the
ASF drive frame
11
16
