S-7300A

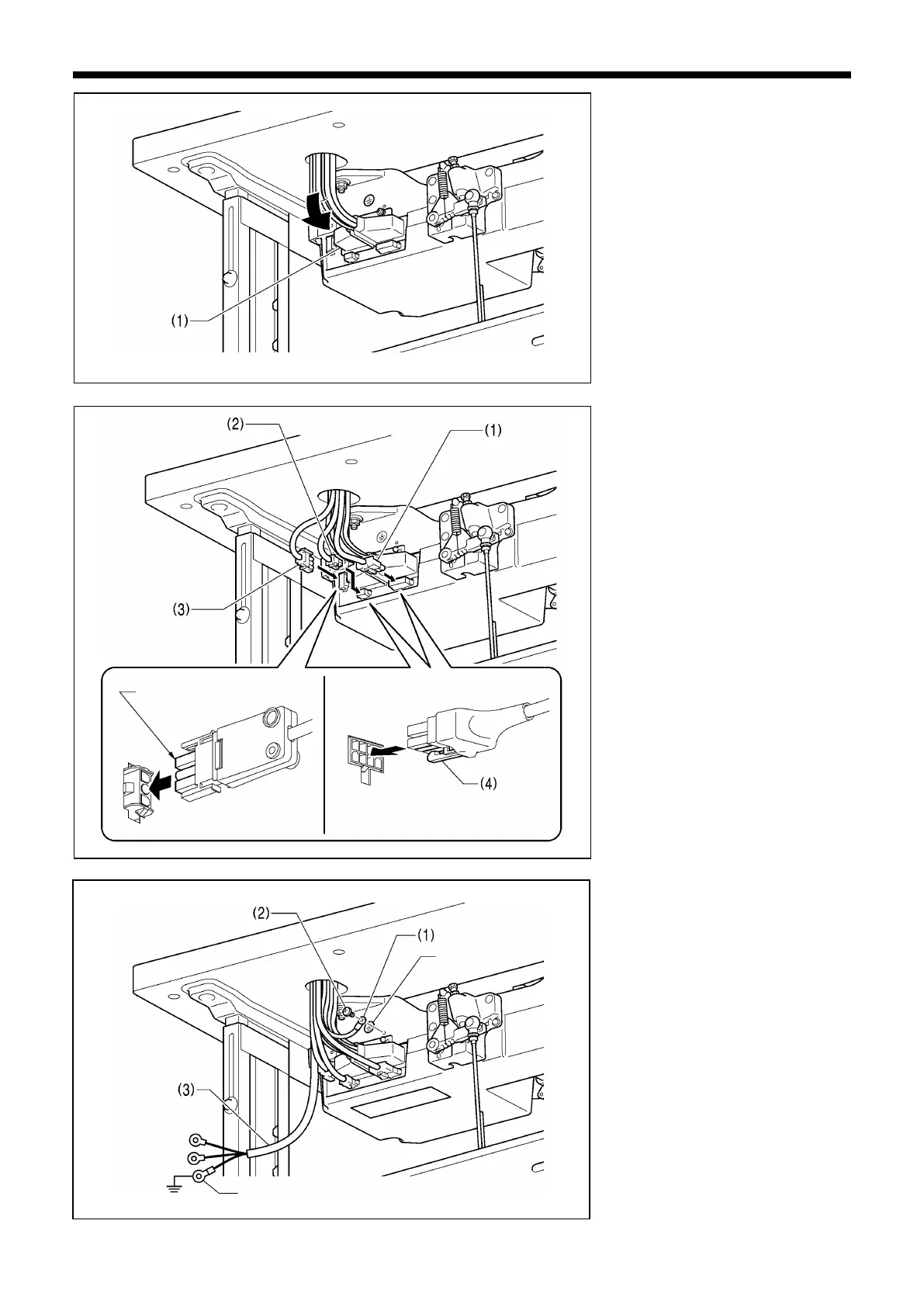

3. Lower the harness cover (1), and
then place the harness inside the
harness cover.
3. Cords (2)
(1) 4-pin machine motor connector
(2) Feed motor connector 6-pin
(3) 3-pin power connector
4. Ground wire
(1) Ground wire
(2) Screw (Recommended tightening
torque 1.0±0.1 N.m)
(3) Power cord
1. Attach an appropriate plug to the
power cord (3). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
・ Make sure that the ground
connections are secure in order to
ensure safety.
・ For Europe specifications,
Americas 220 V specifications and
100 V/400 V system specifications,
refer to “3-4-2. Other cords”.
Push in securely until the tabs (4)
engage.
Green and yellow wire (ground wire)
To Next Page
