MAINTENANCE PROCEDURES
NOTICE
If the recommended XPS
gearbox oil is not available, use a
75W140 gear oil that meets the API
GL-5 specification. The gearbox of
this snowmobile has been devel-
oped and validated using the XPS™
oil. BRP strongly recommends the
use of its XPS o il at all times. Dam-
ages caused by oil which is not suit-
able for the gearbox will not be cov-
ered by the BRP limited warranty.

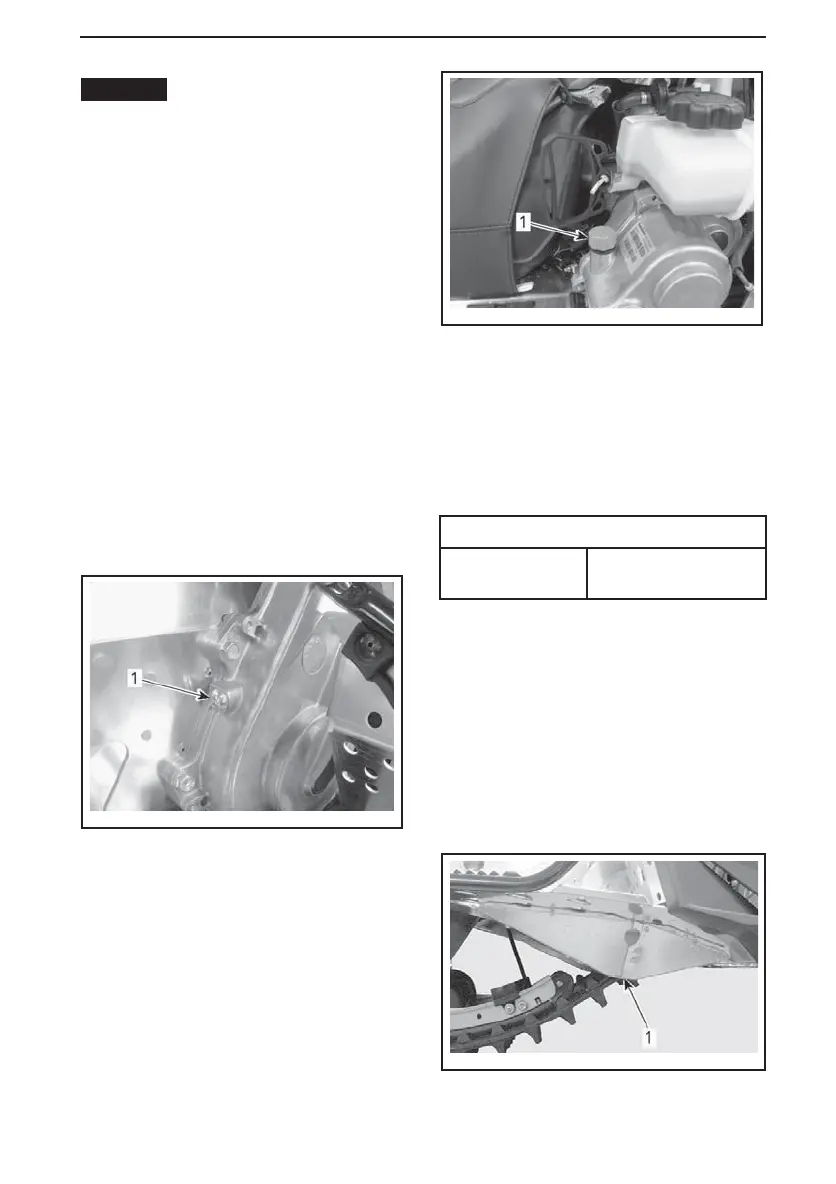

Gearbox Oil Level
With the vehicle on a level surface,
check the oil level by removing the
check plug on the left side of gearbox.
NOTE: It is important that the body of
the vehicle is in horizontal plane.
Oil level must reach the threaded
hole's lower edge.
NOTE: Oillevelisallowedtobe2mm
below the lower surface of the check
hole.
mmo2009-004-033_a
1. Check plug
To add oil, proceed as follows :
1. Remove the filler cap.
mmo2009-004-034_a
TYPICAL
1. Filler cap
2. Pour recommended oil in gearbox
by the filler hole.
Oil level is correct when it just begins
to come out of the check plug orifice.
3. Reinstall check plug and tighten to
specification.
TIGHTENING TORQUE
Check plug
10 N•m ± 1 N•m
(89 lbf•in ±9lbf•in)
Gearbox Oil Replacement
Gearbox Oil Draining
1. Place the vehicle on a level surface.
2. Place a drain pan under gearbox
drainplugarea.
3. Remove filler cap.
4. Remove the drain plug located at
the bottom of gearbox.
619900950-001_a
1. Drain plug access hole
