CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2009-004-021
UP

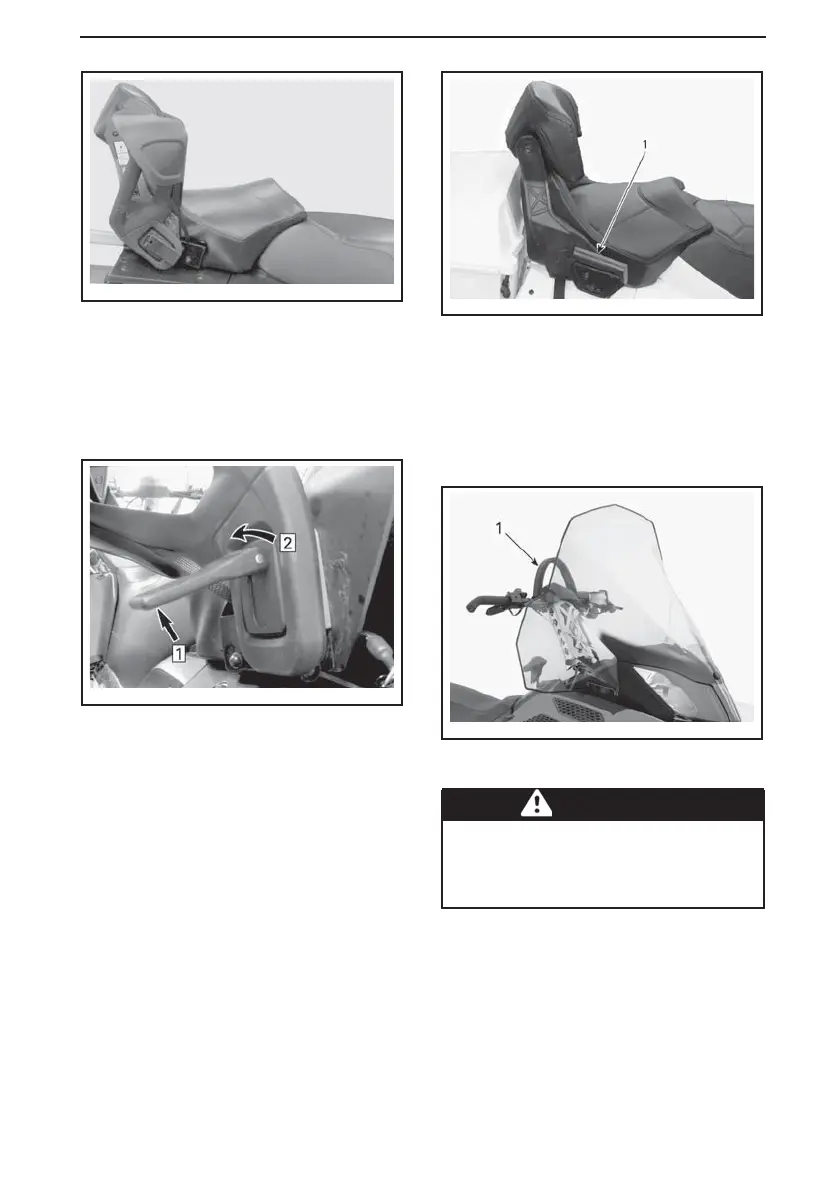

To set the handholds to the desired po-
sition, proceed as follows:
1. Pull up the knob and unscrew sev-
eral turns until the handhold is free
to move.
mmo2009-004-022_a
Step 1: Pull up
Step 2: Unscrew
2. Refer to the decal loc ated on the
RH backrest bracket and guide the
handhold to the desired position.
NOTE: Thedecalcanalsobeseenin
IMPORTANT ON-PR OD UCT LABELS
.
3. Screw the knob enough to obtain a
suitable tension.
4. Lower knob to lock the handhold in
place.
Commander 600 E-TEC Limited, 69
Ranger and 69 Ranger Ar my LT
D
Fixed handholds on each side of the
passenger seat.
fmo2012-003-020_a
TYPICAL
1. Passenger handhold
16) Mountain Strap (If
Equipped)
Mountain strap provides a grip for the
driver when side-hilling.
fmo2009-004-093_a
TYPICAL
1. Mountain strap
WARNING
This strap is not for towing, lifting
or other purpose than temporary
use as a grab handle when a lever-
age is needed at very low speeds.
17) Storage Compartment
The storage compartment is located
behind the driver's seat.
_______________
63
