CONTROLS, INSTRUMENTS AND EQUIPMENT
fmo2016-002-003_c
1. ECS², module
Refer to
REAR SUSPENSION ADJUST-
MENT
in the
TUNE YOUR RIDE
sec-
tion
37) Seat heater (If
Equipped)

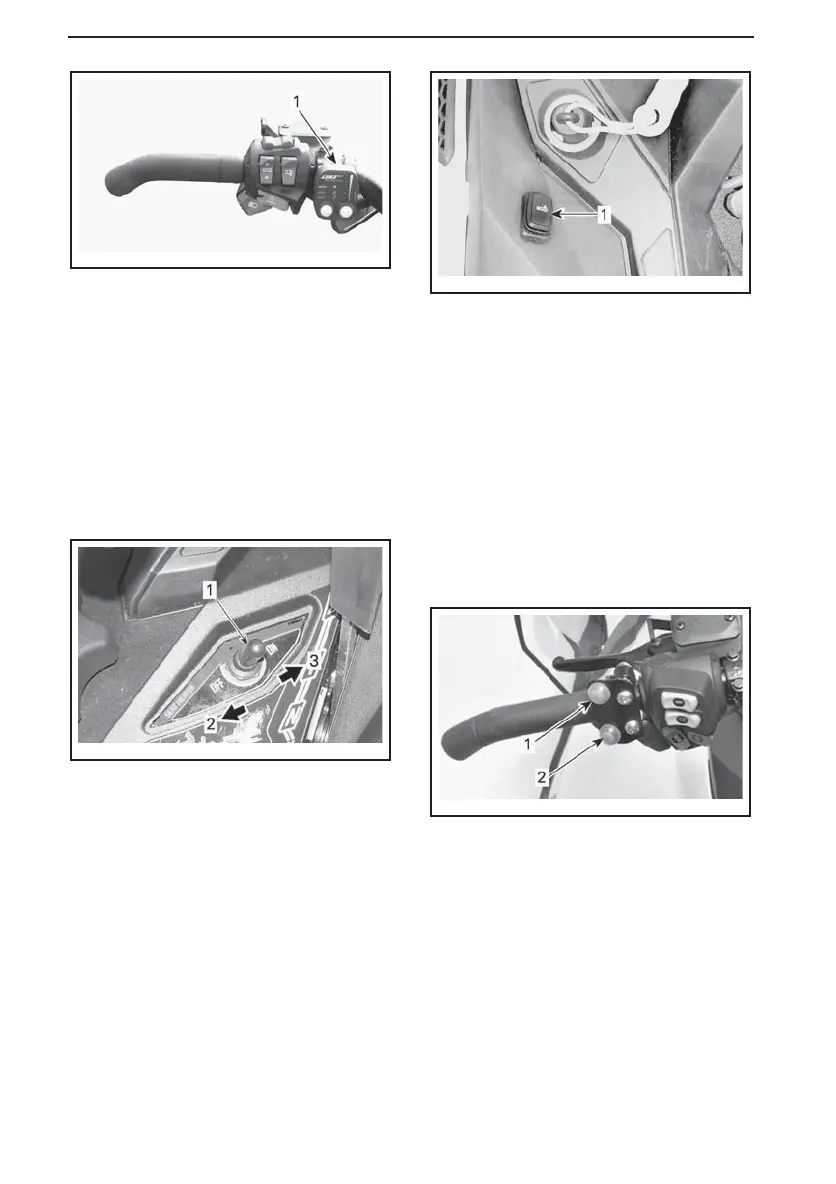

Seat heater switch is installed at front,
near gea rs hift lever.
Seat heater can be switched ON or
OFF.
fmo2014-003-005_a
1. Seat heater switch
2. Heat OFF
3. Heat ON
38) ECO/Standard/Sport
Mode Switch (900 ACE
and 1200 4-TEC)
The Mode switch is located on the LH
side of fuel tank.
mmo2015-008-002_a
TYPICAL - LH SIDE OF FUEL TANK
1. Mode switch
It is used to activate or deactivate
Eco/Standard/Sport m odes.
Refer to
OPERATING MODES
for de-
tails.
39) Hill Brake Switches (If
Equipped)
Hill brake and Hill brake switches are
sold as accessories.
Hill Brake Switches are located on the
LH side of handlebar.
fmo2013-006-011_a
1. Hill Brake up
2. Hill Brake down
40) Hill Brake (If Equipped)
Hill brake for safe stopping on steep
slopes.
41) Accessory Control
Switches (If Equipped)
The accessory control switches are lo-
cated on the console.
72
