CONTROLS, INSTRUMENTS AND EQUIPMENT
NOTE: Do not sit or lean on seat when
fuel tank cap is not properly installed.
33) Storage Box (If
Equipped)

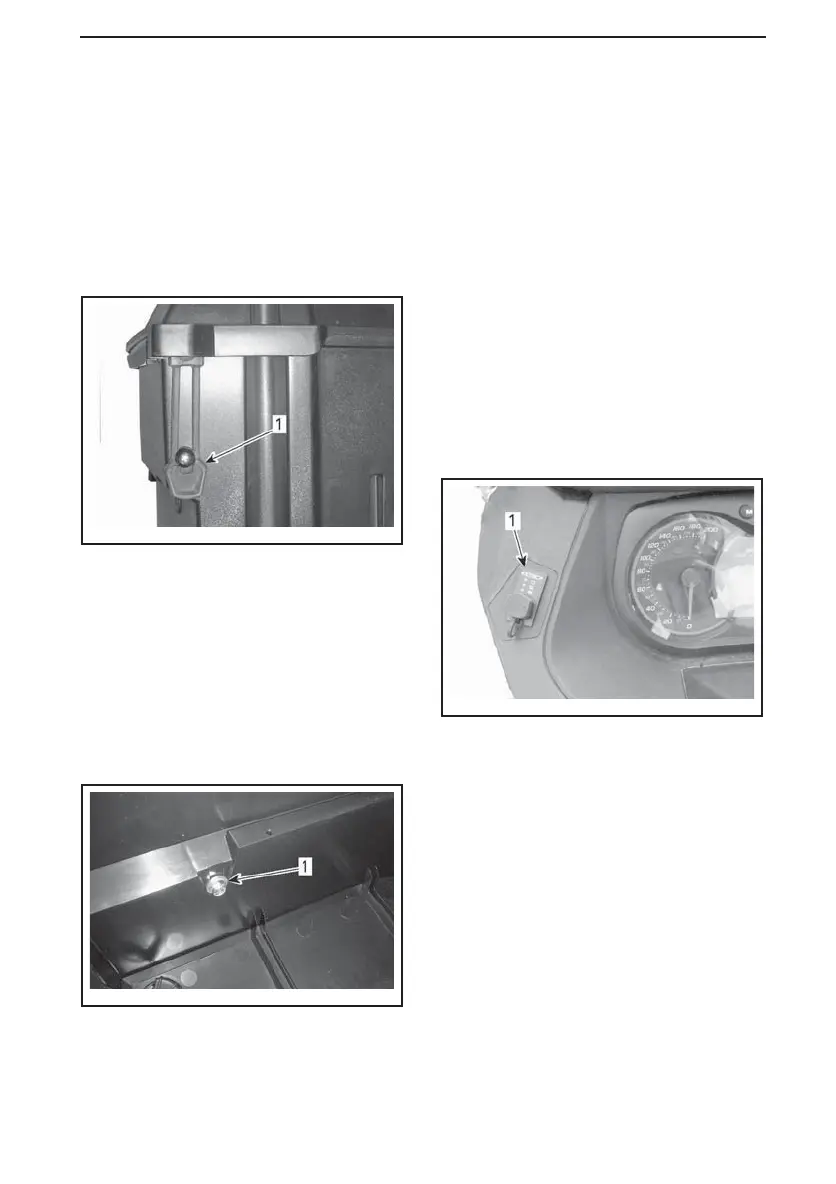

Storage Box Opening/Closing
To open storage box lid, release both
rubber ties, then lift lid up.
mmo2010-002-011_a
1. Rubber tie
To close, push lid down in order to in-
sert the lid pins into the box gromm ets.
Attach the rubber ties.
Storage Box Removal/Installation
To remove storage box from vehicle,
open lid and remove the four screws
retaining storage box to the rear rack.
Keep the screws for installation.
mmo2010-002-013_a
INSIDE THE STORAGE BOX
1. Retaining screw
To install storage box, make sure that
the tunnel surface is clean. Put stor-
age box within the rear rack rails.
Attach using the four screws.
Tighten to 10 N•m ± 1 N•m
(89 lbf•in ± 9 lbf•in).
34) Shovel (If Equipped)
Shovel is located on RH side of vehicle.
35) Battery display /
Charging plug (If
Equipped)
Battery display / Charging plug is lo-
cated to the LH side of console.
The charging level is displayed with
LEDs.
fmo2016-003-001_b
1. Battery Display/Charging plug
36) Electronic Controlled
Suspension (ECS²) (If
Equipped)
The operator can adjust the comfort
and ride height by Electronic Con-
trolled Suspension (ECS²).
_______________
71
