CONTROLS, INSTRUMENTS AND EQUIPMENT

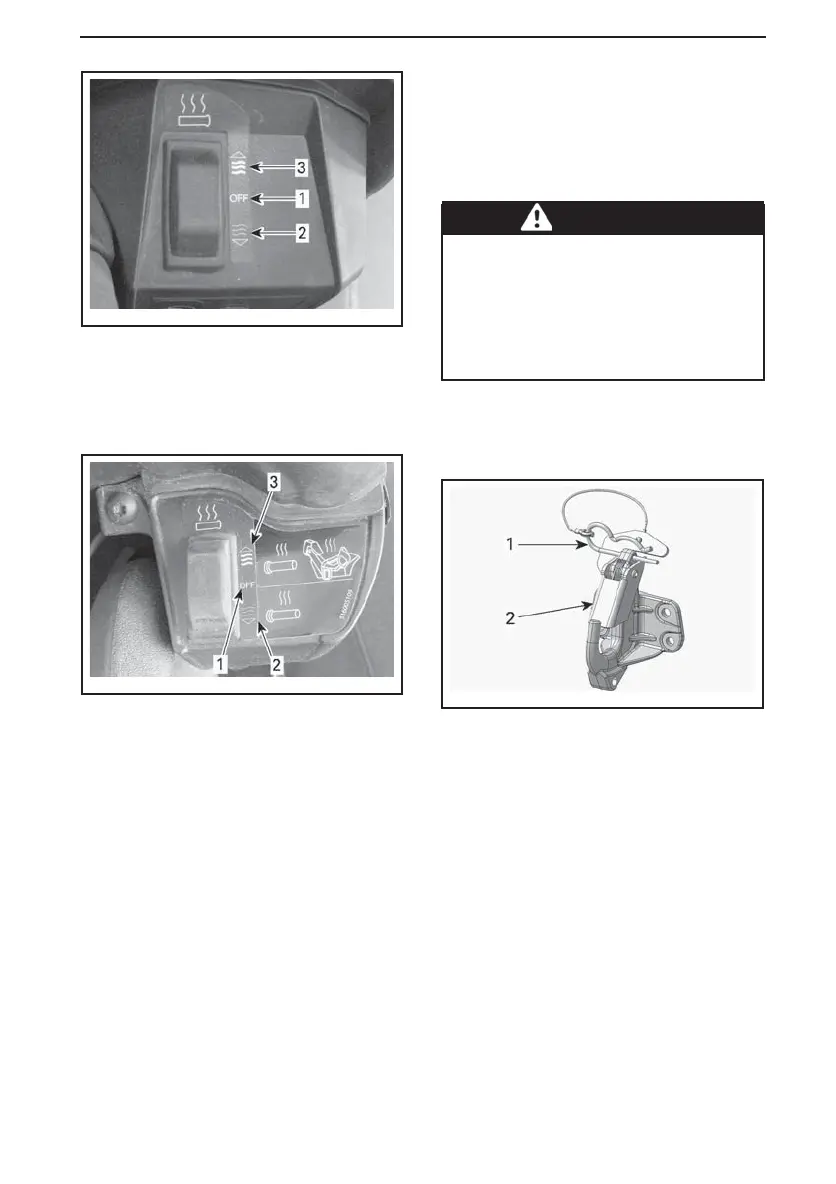

mmo2009-005-010_a
1. Off
2. Warm
3. Hot
Commander Grand Tourer 1200 and
69 Ranger ''SnowCruise' '
fmo2014-003-011_a
1. Off
2. Warm, Passenger Grip
3. Hot, Passenger Heated Grip and Seat
20) 12-Volt Power Outlet
On all models, a 12-volt power outlet is
installed at front, near steering column.
A 12-volt electric appliance may be
connected to that jack connector.
If you need continuous current contact
an authorized Lynx dealer.
21) Hitch
Use the hitch in conjunction with a tow
bar to tow an accessory.
When a ttaching any accessory, always
refer to the manufacturer's recom-
mendations.
NOTE: Refer to decal on vehicle for
towing weight capacities.
WARNING
Never tow an accessory with a
rope. Always use a rigid tow bar.
Using a rope would result in a col-
lision between the object and the
snowmobile and possibly in a tip
over in case of a rapid deceleration
or on a downward slope.
J-Type Hitch
Attaching an Equipment
mmo2011-007-012_a
1. Hairpin clip
2. Safety tab
1. Remove the hairpin clip.
2. Align accessory attachment hole
with the hitch hook.
3. Push the accessory attachment
passed the safety tab.
4. Secure safety tab using the hairpin
clip.
Detaching an Equipment
1. Remove the hairpin clip.
2. Push safety tab forward to
free ac-
cessory attachment from the hitch.
3. Detach accessory attac
hment.
4. I nstall hairpin clip.
_______________
65
