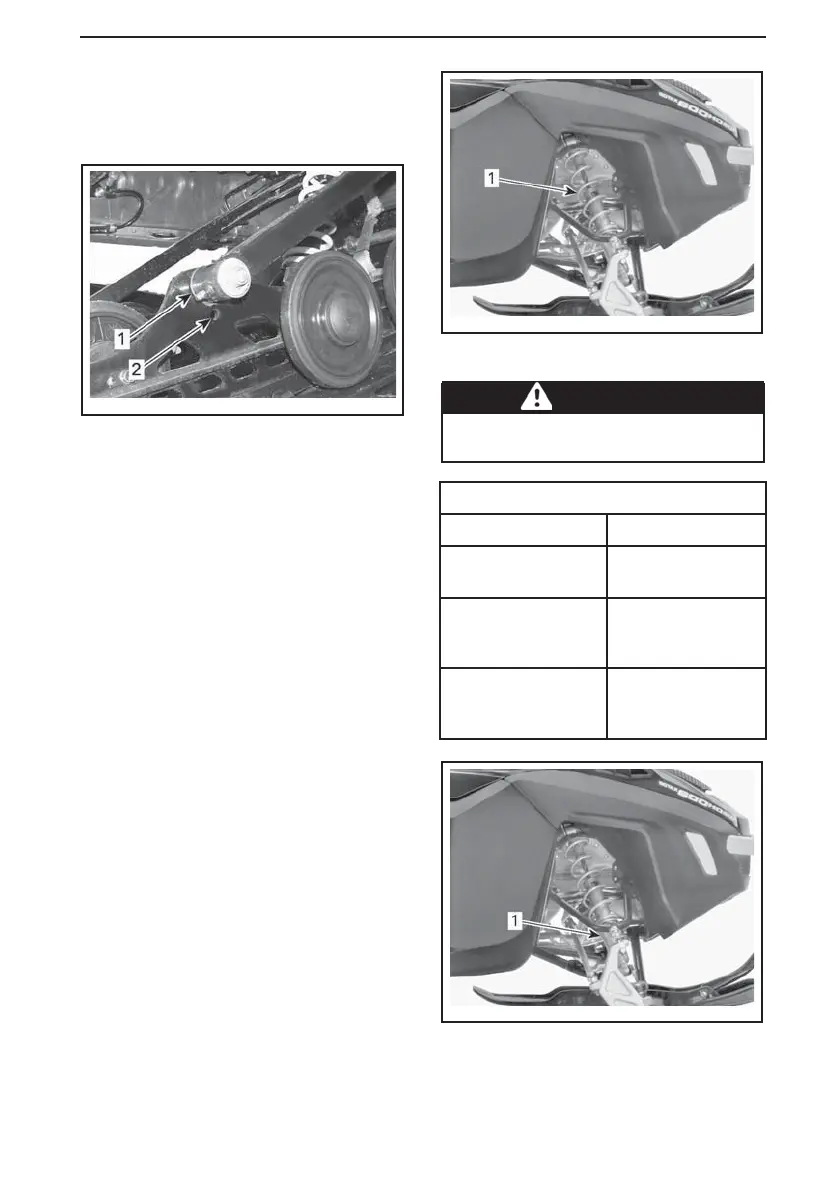

TUNE YOUR RIDE
When ope ra ting the snowmobile in
deep snow, it may be necessary to set
Center arm to position 2.
fmo2013-005-003_a
CENTER ARM
1. Postion 1
2. Postion 2
Deep Snow Riding
When ope ra ting the snowmobile in
deep snow, it may be necessary t o vary
stopper strap length and/or riding posi-
tion, to change the angle at which the
track rides on the snow. Operator's fa-
miliarity w ith the various adjustments
as well as snow conditions will dictate
the most efficient combination.
Front Suspension
Adjustment
Front Springs
Front spring preload has an effect on
front suspension firmness.
Front spring preload also has an effect
on the steering behavior.
mmo2009-004-031_a
TYPICAL - FRONT SUSPENSION
1. Front springs for handling
WARNING
Always adjust both front springs to
same position.
REFERENCE TABLE
HANDLING WHAT TO D O
Good: steering
comfortable to turn
No adjustment
required
Bad: steering too
easy to turn
Adjusted too soft,
increase spring
preload
Bad: steering too
hard to turn
Adjusted too hard,
decrease spring
preload
mmo2009-004-031_b
TYPICAL - CAM TYPE PRELOAD
1. Adjustment cam
_______________
91
