Engine Oil Filter (900 ACE)
Engine Oil Filter Replacement
Oil F ilter Removal
1. Remove the RH side panel.
2. Clea n oil filter area.
3. Remove:
– Oil filter cover screws
– Oil filter cover with O-ring
– O il filter.

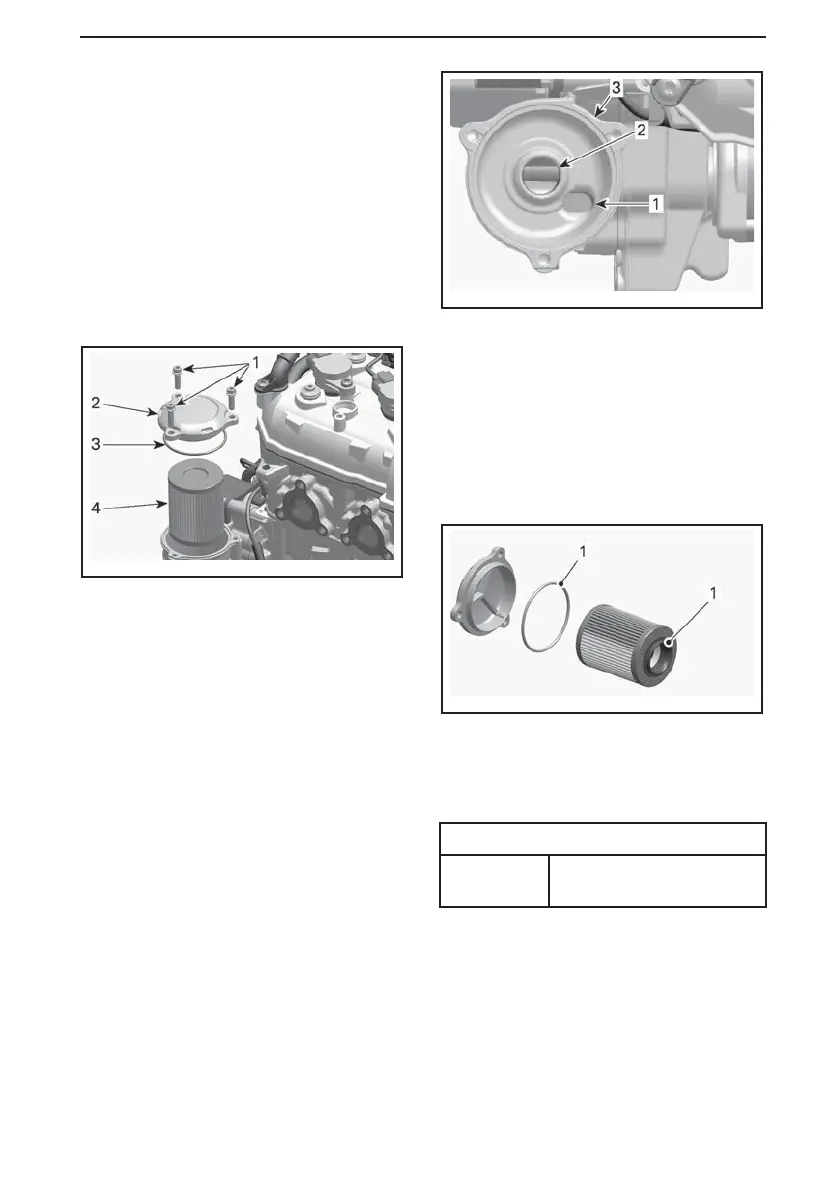

mmr2011-070-007_a
1. Oil filter cover screws
2. Oil filter cover
3. O-ring (discard)
4. Oil filter
4. Dispose filter as per your local envi-
ronmental regulations.
Oil Filter Installation
1. Check the oil filter inlet and outlet
orifices inside oil filter receptacle
(integrated part of magneto cover)
for dirt and contaminations.
mmr2011-070-008_a
1. Oil inlet orifice from the oil pressure pump
2. Oil outlet orifice to the engine lubrication
system
3. Oil filter receptacle
2. Install a NEW O-ring on oil filter
cover.
3. Install the new filter into the cover.
4. Lubricate filter seal and cover O-ring
with engine oil.
mmr2011-070-009_a
1. Lubricate with engine oil
5. Install the oil filter cover.
6. Tighten oil filter cover screws to
specification.
TIGHTENING TORQUE
Oil Filter
Cover
10 N•m ± 1 N•m
(89 lbf•in ±9lbf•in)
7. Wipe off any oil spillage on engine.
Oil Filter (1200 4-TEC)
Oil Filter Removal
1. Remove the RH side panel.
2. Remove muffler, refer to
EXHAUST
SYSTEM
.
