MAINTENANCE PROCEDURES
fmo2016-003-012_b

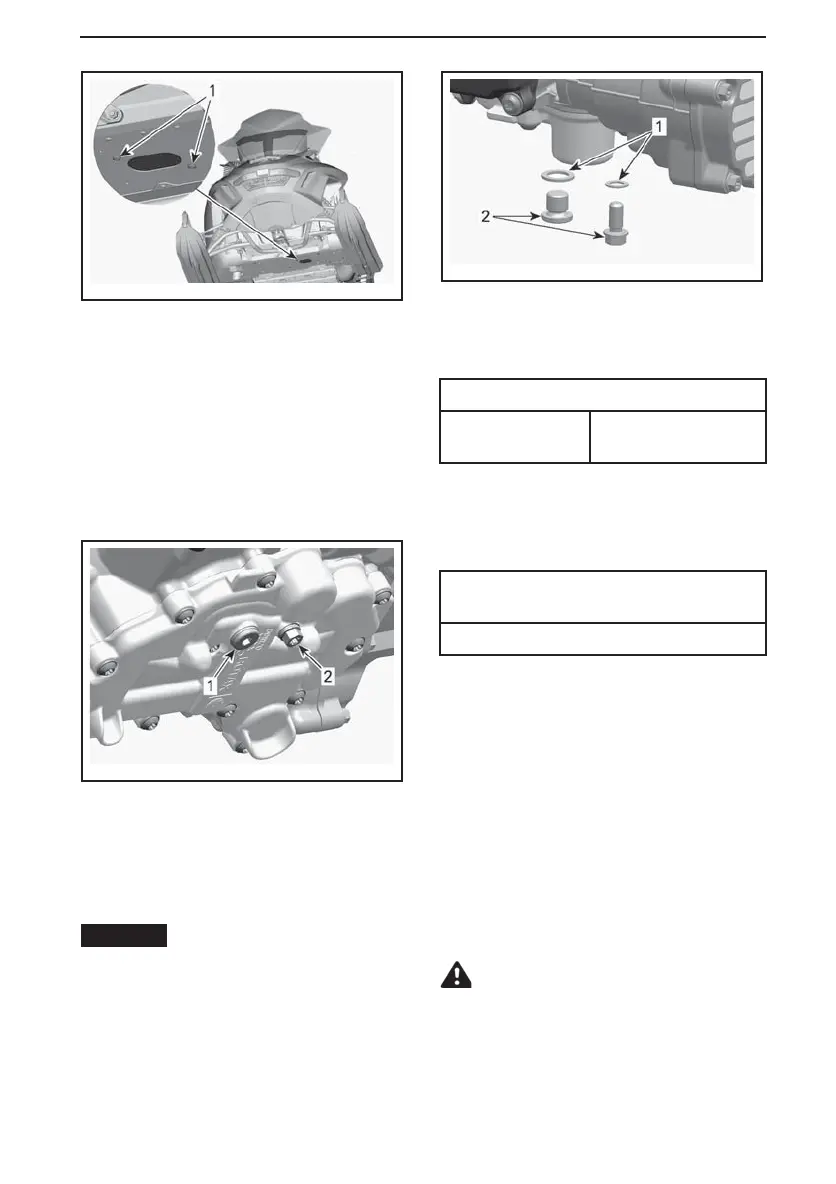

PIVOT THE ACCESS COVER
1. Retaining screws
7. Clean drain plug area.
8. Place a drain pan under the bottom
pan opening.
9. Remove engine drain plugs in the
following order.
9.1 Main drain plug.
9.2 Secondary drain plug.
mmr2011-070-053_a
UNDERNEATH THE ENGINE
1. Main drain plug
2. Secondary drain plug
10. Allow oil to drain completely.
11. Install NEW sealing washers on oil
drain plugs.
NOTICE
Never u se a sealing
washer a second time. Always re-
place with a new one.
mmr2011-070-004_a
1. Sealing washer
2. Oil drain plug
12. Install drain plugs and tighten to
specification.
TIGHTENING TORQUE
Drain plugs
20 N•m ± 2 N•m
(15 lbf•ft ± 1.5 lbf•ft)
13. Install a new
OIL FILTER
, see pro-
cedure in this subsection.
14. Refill oil tank at the proper level
with the recommended oil.
APPROXIMATE ENGINE OIL
CAPACITY (WITH FILTER)
3.3 L (3.5 qt (U.S. liq.))
15. Reinstall dipstick in oil tank and
properly tighten it.
16. Start engine and let it idle for a few
minutes.
17. Ensure there are no leaks.
18. Stop engine and check oil level.
Refill if necessary.
19. Dispose oil and filter as per your lo-
cal environmental regulations.
Engine Oil Replacement
(1200 4-TEC)
CAUTION The engine o il can
be very hot. Wait until engine oil is
warm.
