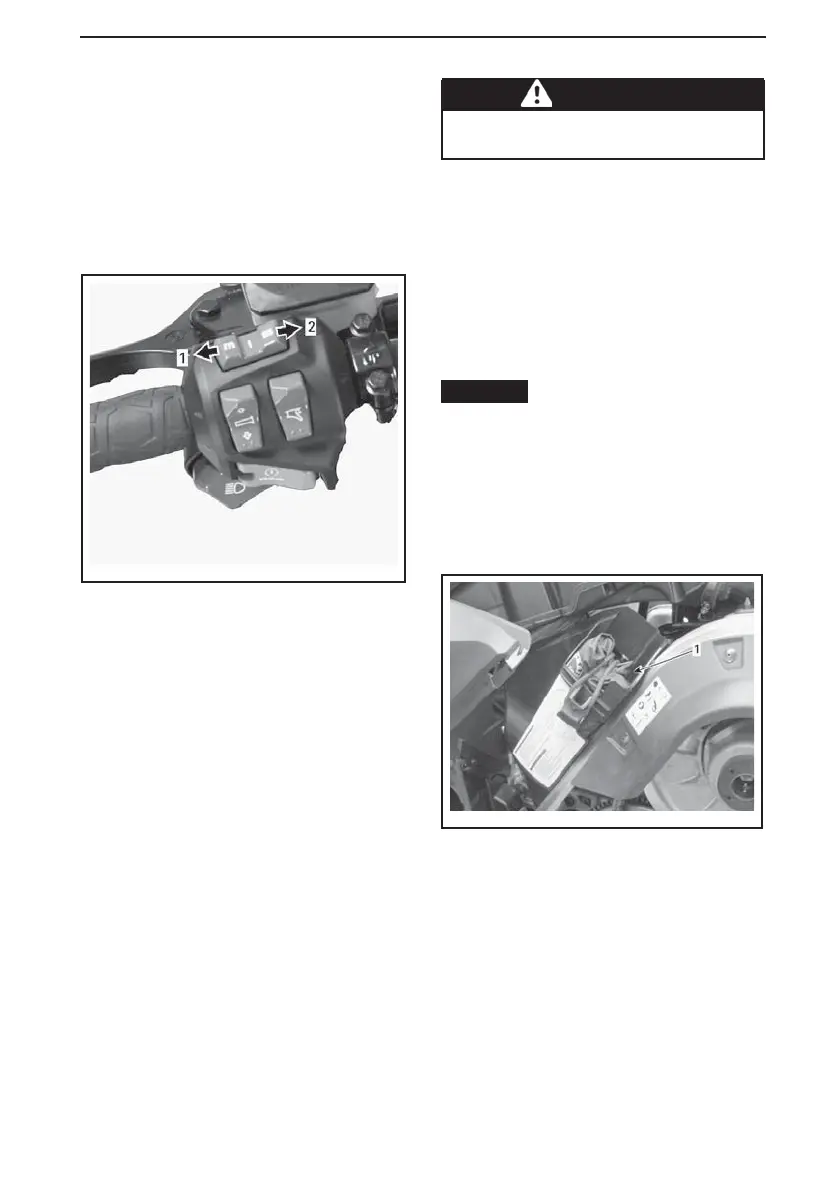

CONTROLS, INSTRUMENTS AND EQUIPMENT
Mode/Set Button
This button can be used instead of the
two buttons on to p of the analog/digital
gauge to facilitate gauge adjustments.
– When pressed left, it h as the same
functions as the MODE (M) button.
– When pressed right, it has the same
functions as the SET (S) button.
fmo2014-003-003_d
MULTIFUNCTIO N GAUGE
1. MODE function
2. SET function
8) Gearshift Lever
Use this lever to select gears. The
gearbox has two forward gears, a re-
verse gear and a neutral.
Refer to
GEARBOX OPER ATION
in
OPERATING INSTRUCTIONS
for de-
tails.
NOTE: It is necessary to push shift
lever knob down to move it from neu-
tral to reverse gear.
NOTE: Do not shift when vehicle is
moving.
9) Adjustable Mirrors
Each mirror can be adjusted to suit
driver's prefe rence by gently rotating
the mirror glass.
WARNING
Adjust with vehicle at rest in a safe
place.
10) Tool Kit
Models without an Under Seat
Storage Box
A tool kit containing tools for basic
maintenance is sup plied w ith the vehi-
cle.
The tool kit support is located in engine
compartment on pulley guard.
NOTICE
Make sure tool kit is prop-
erly secured to avoid contact with
belt or pulley.
To remove the tool kit support from
the pulley guard, unlock the tab from
underneath the pulley guard and pull
the tool kit support towards front to
release it.
fmo2012-003-008_a
TYPICAL
1. Tool kit
