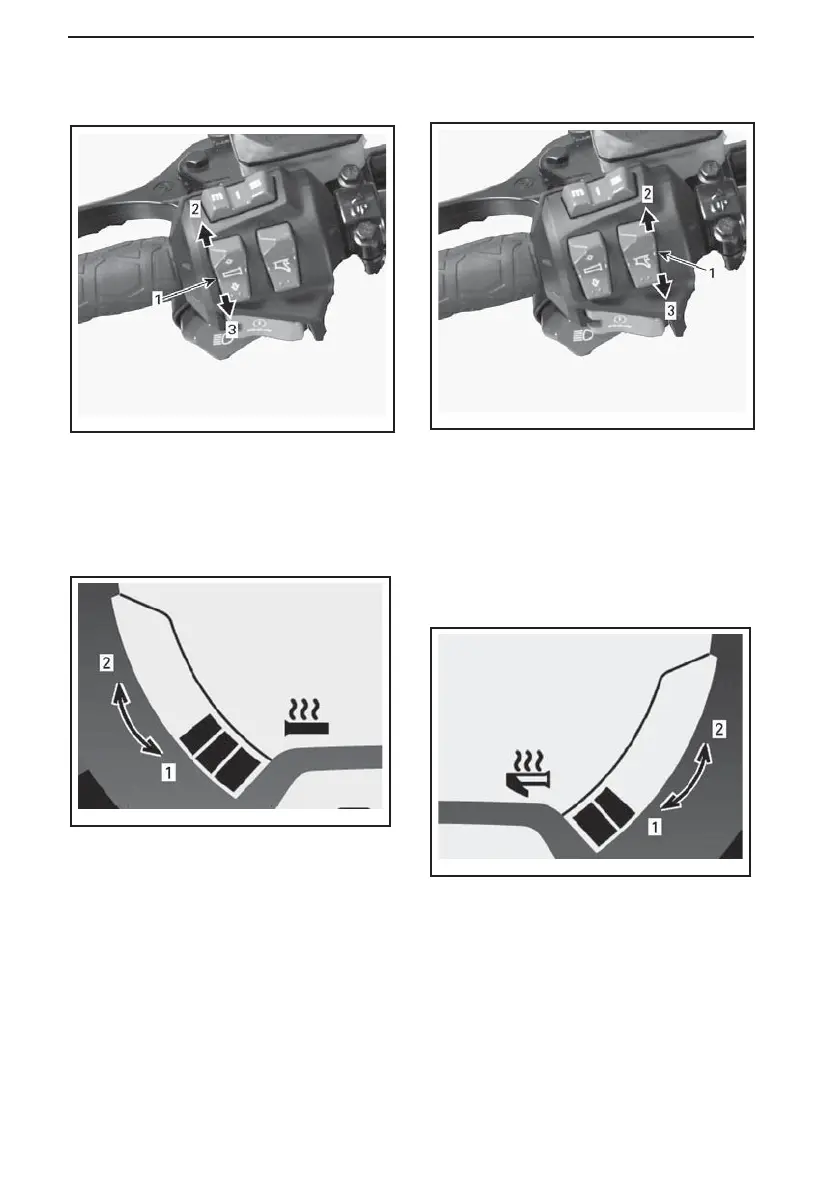

CONTROLS, INSTRUMENTS AND EQUIPMENT
Heated Grips Switch
fmo2014-003-003_b
TYPICAL
1. Heated grips switch
2. Incr ease heat
3. Decrease heat
The heating intensity is displayed via
the multifunction display.
mmo2007-009-043_b
HEATING INT ENSITY DISPLAY
1. Colder (Less heat)
2. Warmer (More hea t)
Heated grips will be in OFF position
when there are no bars displayed on
the gauge.
Heated Throttle Lever Switch
fmo2014-003-003_c
TYPICAL
1. Heated throttle lever switch
2. Increase heat (Warmer)
3. Decrease heat (Colder)
NOTE: The heating intensity is dis-
played via the multifunction display
with the activation of the throttle lever
switch. When released, display will
return to fuel tank level.
mmo2007-009-044_b
HEATING INT ENSITY DISPLAY
1. Colder (Less heat)
2. Warmer (More hea t)
Heated throttle lever will be in OFF po-
sition when there are no bars displayed
on the gauge.
