CONTROLS, INSTRUMENTS AND EQUIPMENT
WARNING
The storage compartment must
be properly latched and must not
contain any sharp or breakable ob-
jects.

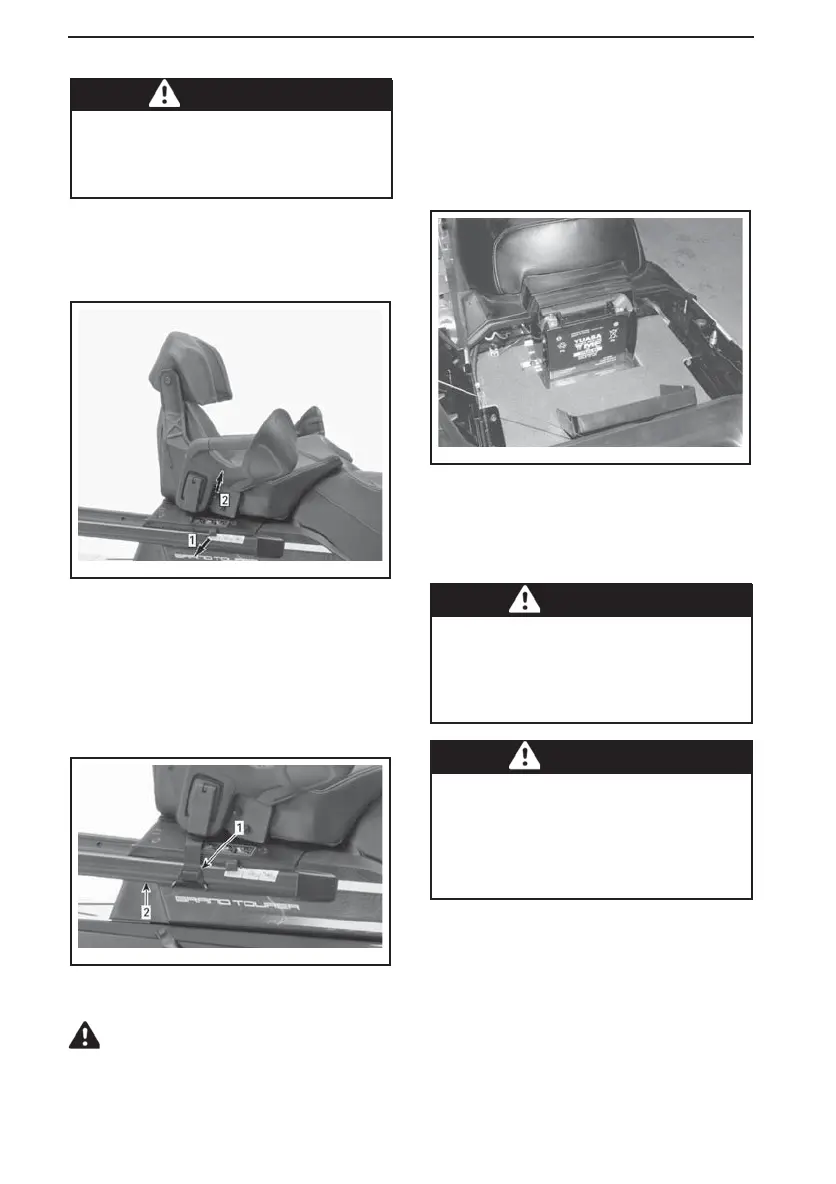

To open the lid, pull and hold the rubber
tab sideways, then lift the RH side of
the lid or passenger seat if installed.
fmo2009-004-024_a
Step 1: Pull rubbe r tab
Step 2: Lift RH side
To close lid, simply push it do wn until it
latches.
In addition, when passenger seat is in-
stalled, hook the retaining strap to the
rear bumper as shown.
fmo2010-002-012_a
1. Re taining strap
2. Rear bumper
CAUTION When closing lid
with the passenger seat i nstalled,
secure with the retaining strap.
Battery
Battery is located in storage box under
passenger seat. To a ccess the battery,
remove the cover by pushing both tabs
in, then lifting it up.
fmo2012-003-004
18) Rear Rack
The rear rack can accommodate per-
sonal articles (luggage), a fuel caddy or
the storage box.
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steering
ability.
WARNING
Always readjust suspension ac-
cording to the load. The capacity
of this rack is limited, the MAXI-
MUM cargo load is 30 kg (66 lb).
Ride at very low speed when
loaded. Avoid speed over bumps.
19) Passenger Heated Grip
and Seat Switch (If
Equipped)
Commander Grand Tourer models
The switch is located on the LH pa s-
senger handhold.
Adjust heating intensity as shown.
64
