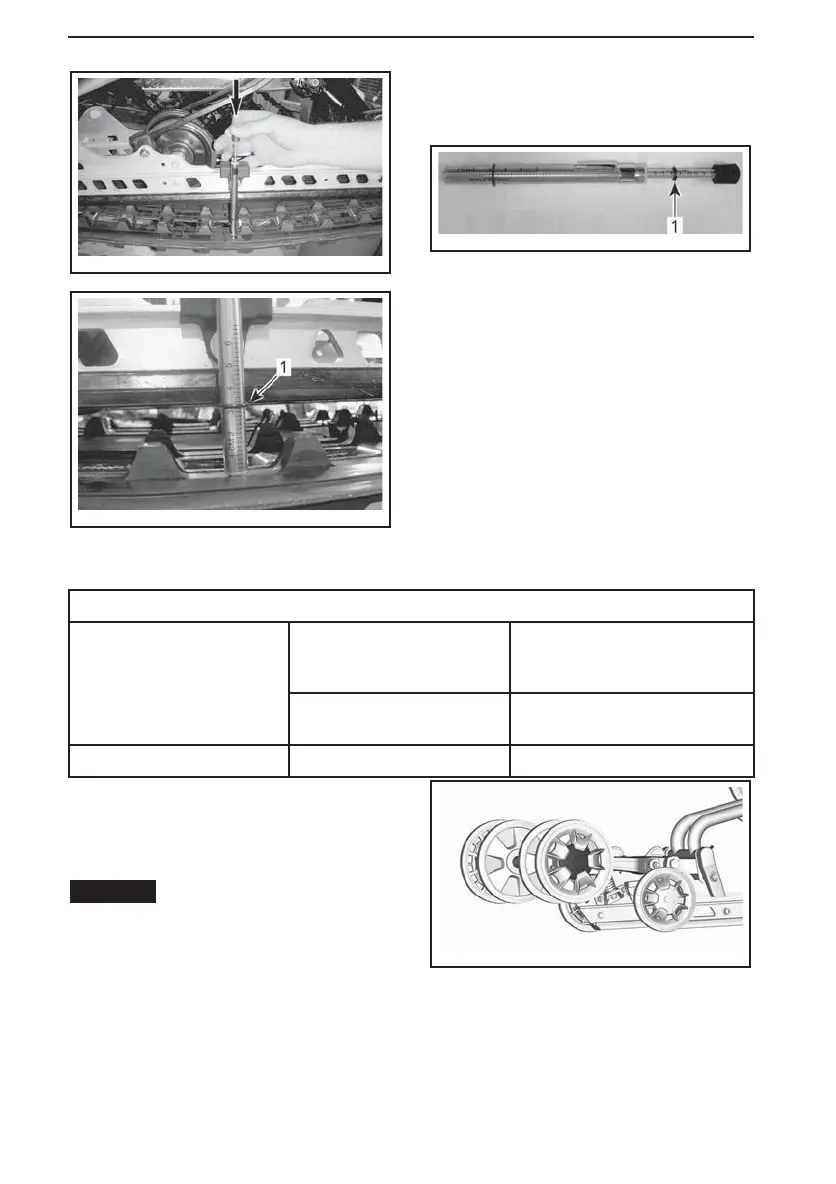

MAINTENANCE PROCEDURES
mmr2009-133-001_a
mmr2009-133-002_a
1. Deflection O-ring aligned with slider shoe
9. Read load recorded by the upper
O-ring on the tensiometer.
mmr2009-133-003_a
LOAD READING
1. Upper O-ring
10. Load reading must be as per the following table.
TRACK ADJUSTMENT SPECIFICATION
MODELS WITH
EASYRIDE
SUSPENSION
40 mm to 45 mm
(1.575 in to 1.772 in)
TRACK DEFLECTION
SETTING
ALL OTHER MODELS
40 mm to 50 mm
(1.5 in to 2 in)
TRACK LOAD READING ALL MODELS
7.3 kgf (16 lbf)
11. If load reading is not in accordance
with the specification, adjust track
tension. Refer to
TRACK TEN-
SION ADJUSTMENT
.
NOTICE
Too much tension will
result in power loss and excessive
stress on suspension components.
Track Tension Adjustment
1. Remove the tether cord cap from
engine cut-off switch.
2. Remove rear wheel caps (if so
equipped).
619900696-007
EASYRIDE SUSPENSION
118
