Bruker minispec mq20 - Figure 2.1: Magnet Stray Field Plot

Safety
12 E1400912_1_001

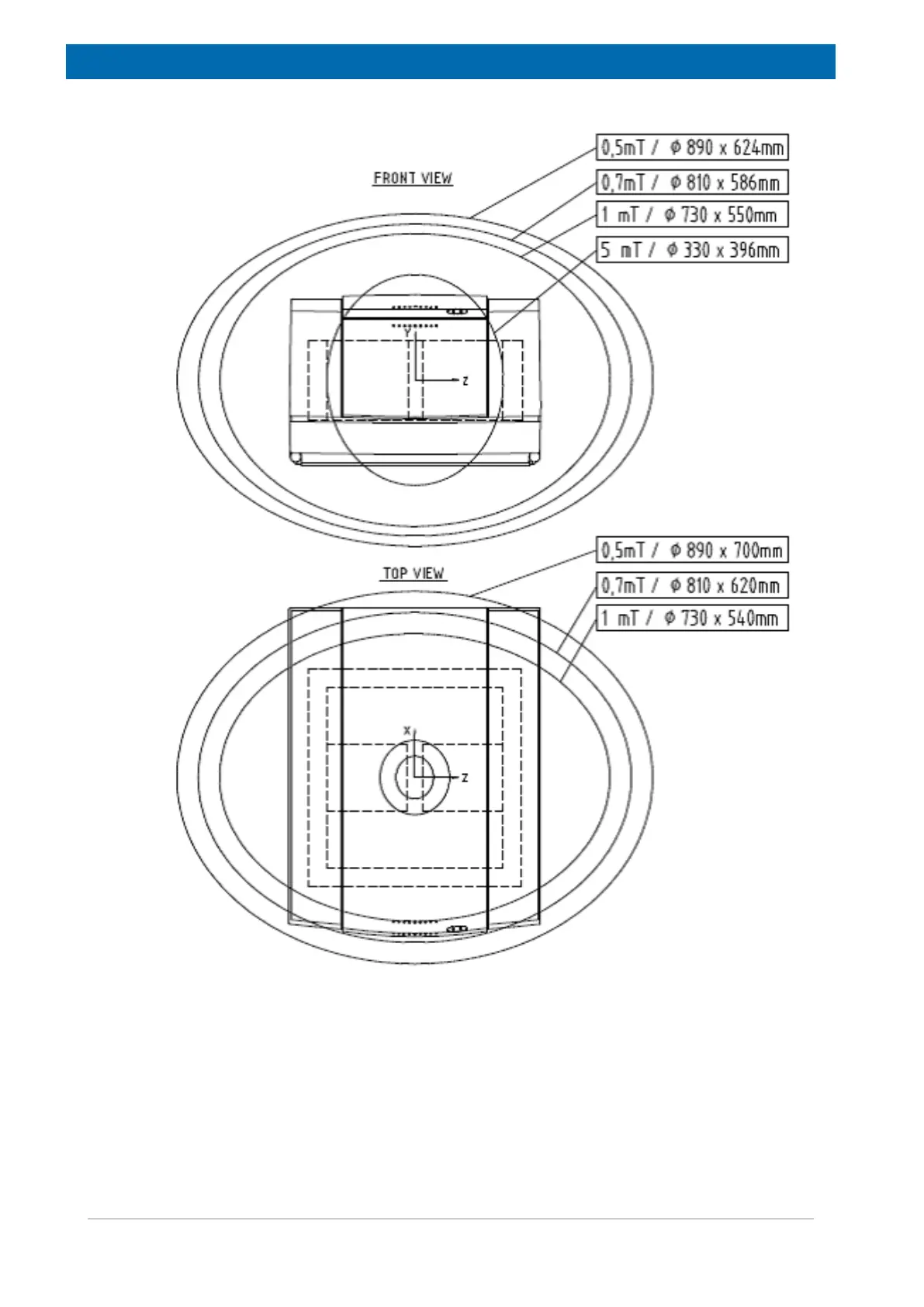

Figure2.1: Magnet Stray Field Plot
For the mq20 Toothpaste Analyzer the following distances of the 5 Gauss line from the
housing of the system apply (refer to figure above):
• System front and back panels: 5 Gauss line goes 5 cm out of the box.
• Upper and lower surfaces: 5 Gauss line goes 25 cm out of the box.
• Lateral plates: 5 Gauss line goes 25 cm out of the box.
