4. Fit Info: You can display a window containing all information of a current fit. An active Fit
Window is marked with a check mark.
The Display Modes Command
Different display modes are available for the measurement signal. Possible modes are:

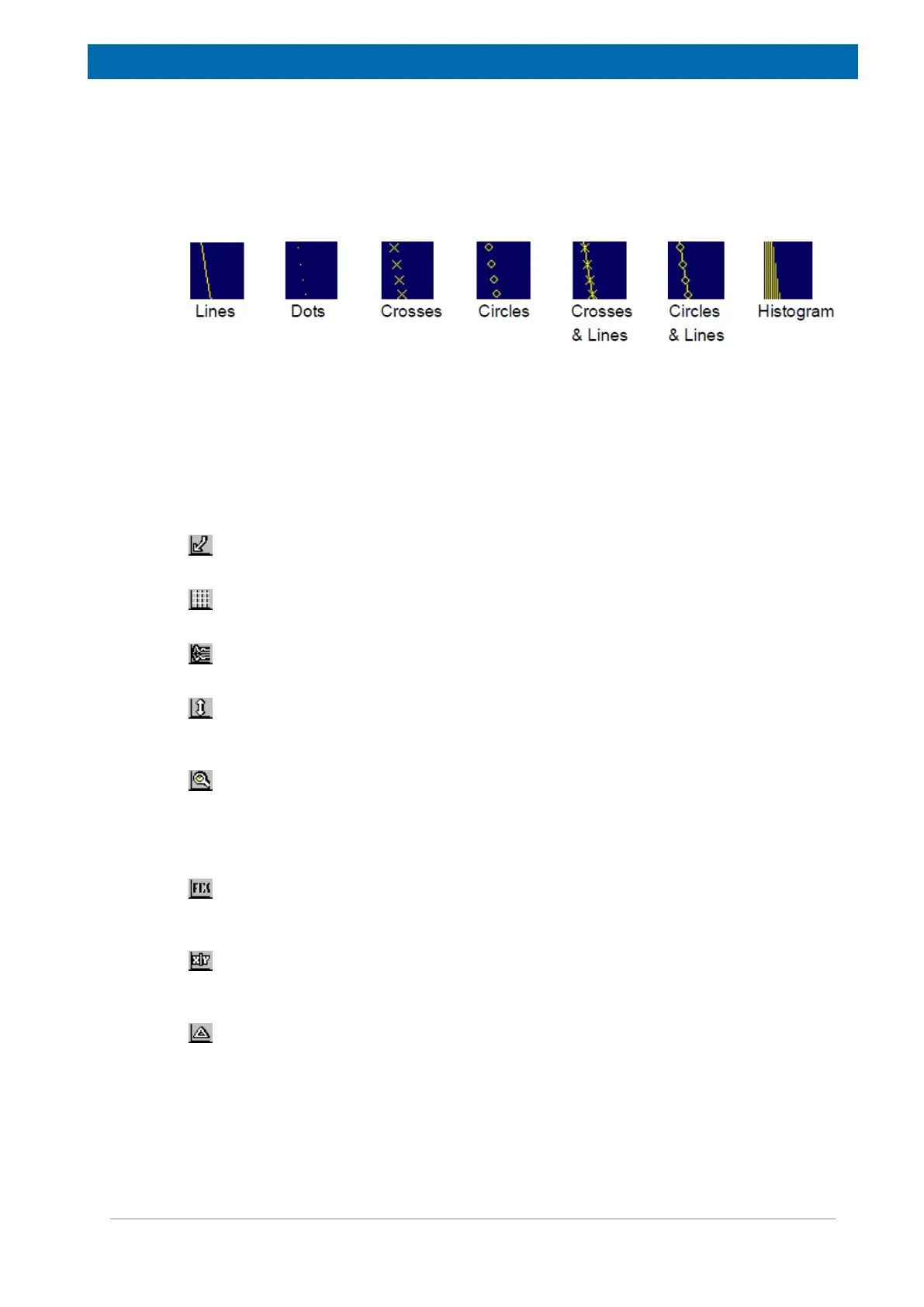

Figure8.14: Display Modes
You can activate the desired display mode with a mouse click.
The Display Scaling and the Display Cursor Commands
There are various possibilities for the data and cursor display. With these commands the
scaling of the Signal Window and the options for the cursor displays are adjusted. For easy
handling the commands can be executed using short cuts. The following display operations
are available:
Resets the display to the default view.
Adds a grid to the signal display.
Toggles between separate or overlapping displays of real and imaginary signals.
Toggles between Full Scale (the limits are the highest and lowest values to be displayed)
and normal (100%) signal scale.
Zoom Scale on / off. To zoom, mark the signal with the rectangle cursor. Using the left
mouse button you can toggle between the left/upper and the right/lower limit. The zoom
range is defined using the right mouse button. To reset, use the right mouse button or click
the Reset button.
Fix Scale on / off. Fixes the display scale (e.g. after zooming) and the display type if used
before a measurement.
Data Cursor on / off. Allows the data cursor to be moved with the mouse or cursor keys.
When activated, data point information is available in the Status Bar.
Distance Cursor on / off. Allow the mouse or cursor keys to be used to position the distance
cursors. Use the left mouse button to toggle between the left and right distance cursor. Data
points distance information can be found in the Status Bar.
