CAUTION
Risk of injury from lifting heavy objects.
The unit is very heavy and may lead to injury when lifting.
u Do not attempt to lift the unit over the edge of the carton, remove the carton first.
u Do not attempt to lift the unit on your own or without necessary precaution against
injury.
u Use a hoist if available.
u Follow the step-by-step instructions in the installation section of this manual.
To unpack the system:
1. Use a 13 mm wrench to remove the four bolts from the bottom of the container.
2. Remove the shipping straps and open the container.
3. Remove the packing material from around the Electronic Control Unit.
4. Remove the Electronic Control Unit from the container, together with the wooden plate
that it is mounted on (do not tip!). Remove the four mounting bolts from below the plate
using a 13mm wrench. Once loose, remove the Electronic Control Unit and set it in a safe
location.
5. Remove the packing material from around the Magnet Unit. Remove the retaining screws
or nails from the bottom of the wooden pallet and detach the shipping carton.
6. While keeping it level, carefully lift the Magnet Unit from the pallet using the handles on
either side, and place it on a sturdy cart or benchtop.
When using a hoist, make sure the straps are capable of carrying the magnet´s weight and
are attached in such a way that the magnet cannot fall, slip, topple or turn while being
carried.
7. Once the magnet has been placed in it’s desired position, the handles can be retracted.
While keeping the handles pressed down, push them below the case (see figure, arrows 1
and 2).

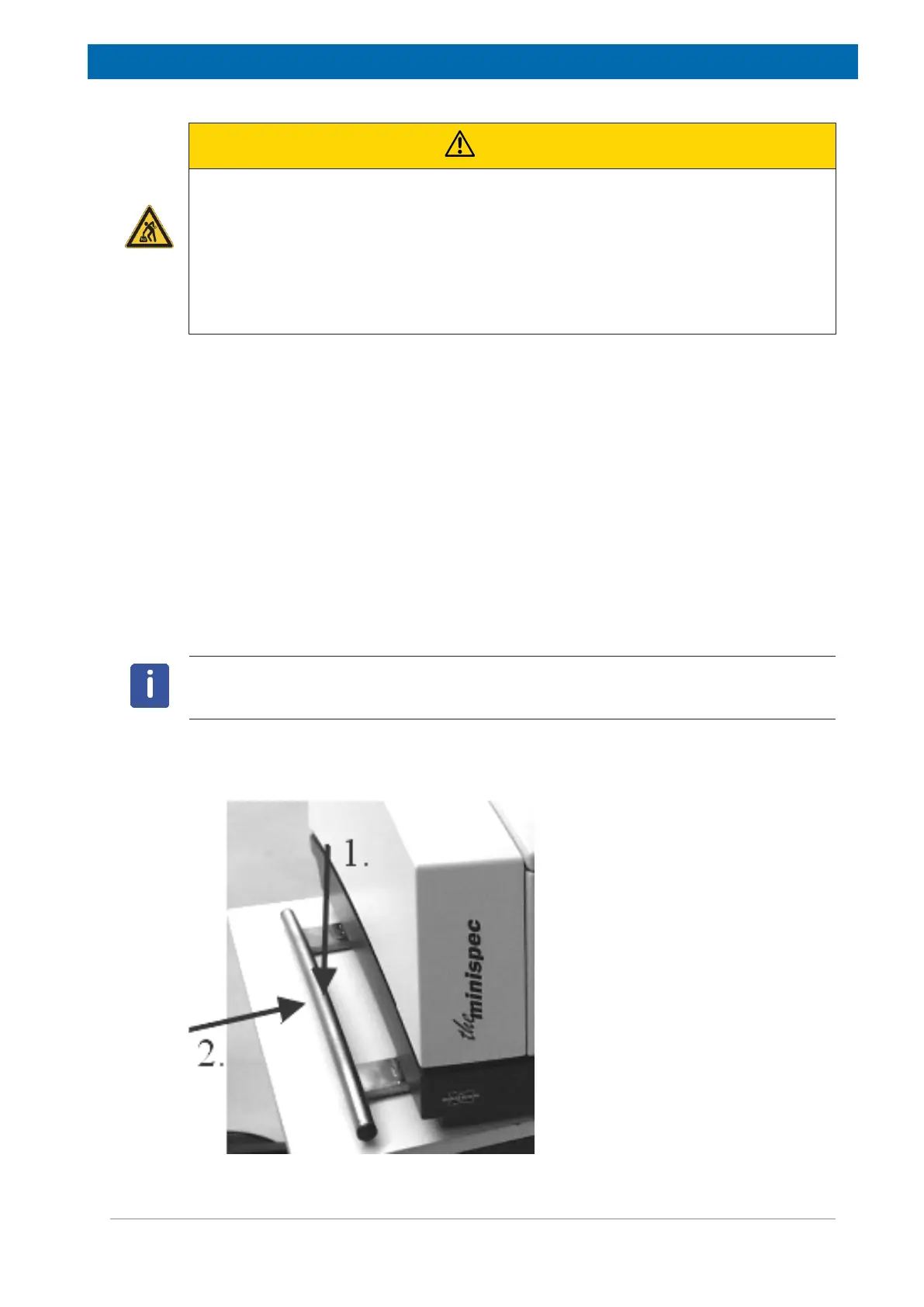

Figure5.3: Handles on the Side of the Magnet Unit
