Graphics Display
SMART MATRIX FEEDER 2-47

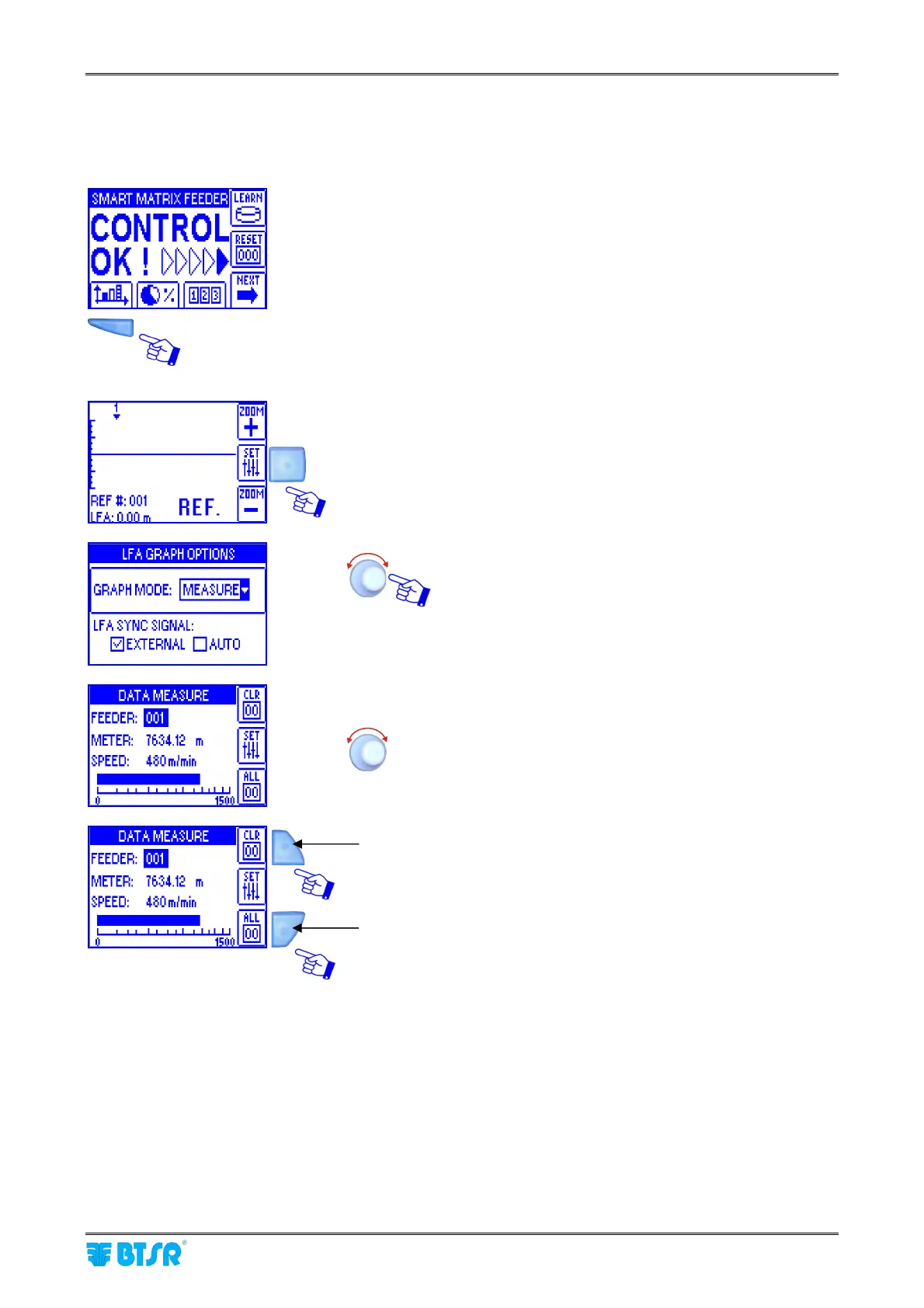

LFA and speed visualization on each device
This function allows you to view in real time (for each device) the amount of absorbed yarn – LFA – and the
speed in m/min.
Press the graphics direct access button.
Press SET to choose the type of graphic to be
displayed.
Select MEASURE in GRAPH MODE.
Example of values shown, related to device 001.
To select another device.
Press this button to clear the meter counter of the current device.
Press this button to clear the meter counters of all devices.
