Electrical connections7
Logamax plus GB162-80 kW/100 kW - Subject to modifications resulting from technical improvements!34
7.2.1 Installing function modules in the boiler
z Loosen the screw (fig. 34, step 1).
z Pull open the drawer (fig. 34, step 2).
z Install the wall bracket in the relevant slots in the drawer
(fig. 35).
z Click the function module(s) into position in the wall
bracket (fig. 36).
z Remove the drawer.

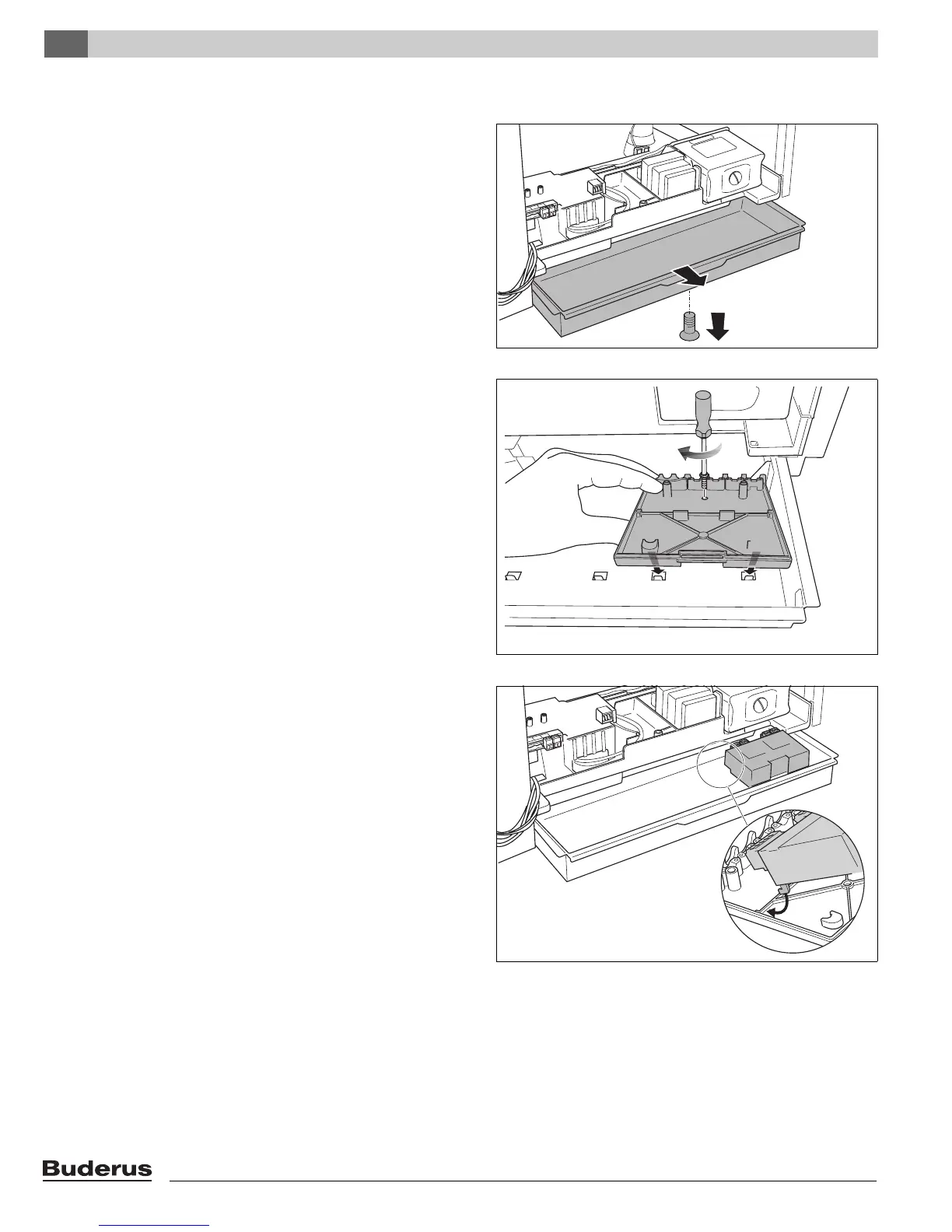

Fig. 34 Opening the drawer
1
2
Fig. 35 Installing the wall bracket
Fig. 36 Clicking the function module into position
