z Press the reset button.
z Check if the boiler starts-up.
z Press the "Chimney Sweep" button return to normal
operating conditions.
9.14 Boiler settings
9.14.1 Set the heating capacity
z Set the required heating capacity on the BC10 according
to the "Settings" menu (table 11, page 44). See table 13
and table 14 when making these settings.
9.14.2 Set the space heating water temperature
z Set the upper space heating water temperature limit for
heating mode with the "space heating water tempera-
ture" knob (fig. 69, pos. 8); see table 15. This limitation
does not apply to DHW preparation.
Display
indication
[%]
Rated heating capacity (±5%),
based on natural gas (sea level)
GB162-80 kW GB162-100 kW
kW btu/h kW btu/h
L20 – – 20.0 68,300
L30 24.3 78,300 29.9 97,900
L40 32.9 104,400 39.9 130,500
L50 41.5 130,500 49.8 163,200
L60 50.1 156,600 59.8 195,800
L70 58.7 182,700 69.7 228,400
L80 67.3 208,800 79.6 261,000
L90 75.9 234,900 89.6 293,700
L-- 84.5 261,000 99.5 326,300
Table 13 Heating capacity (as a percentage)
at sea level (0 - 4,000 ft)
Display
indication
[%]
Rated heating capacity (±5%),
based on natural gas (high altitude)
GB162-80 kW GB162-100 kW
kW btu/h kW btu/h
L20 ––––
L30 – – 29.9 97,900
L40 32.9 104,400 39.9 130,500
L50 41.5 130,500 49.8 163,200
L60 50.1 156,600 59.8 195,800
L70 58.7 182,700 69.7 228,400
L80 67.3 208,800 79.6 261,000
L90 75.9 234,900 89.6 293,700
L-- 84.5 261,000 99.5 326,300
Table 14 Heating capacity (as a percentage)
at high altitude (4,000 - 10.000 ft)

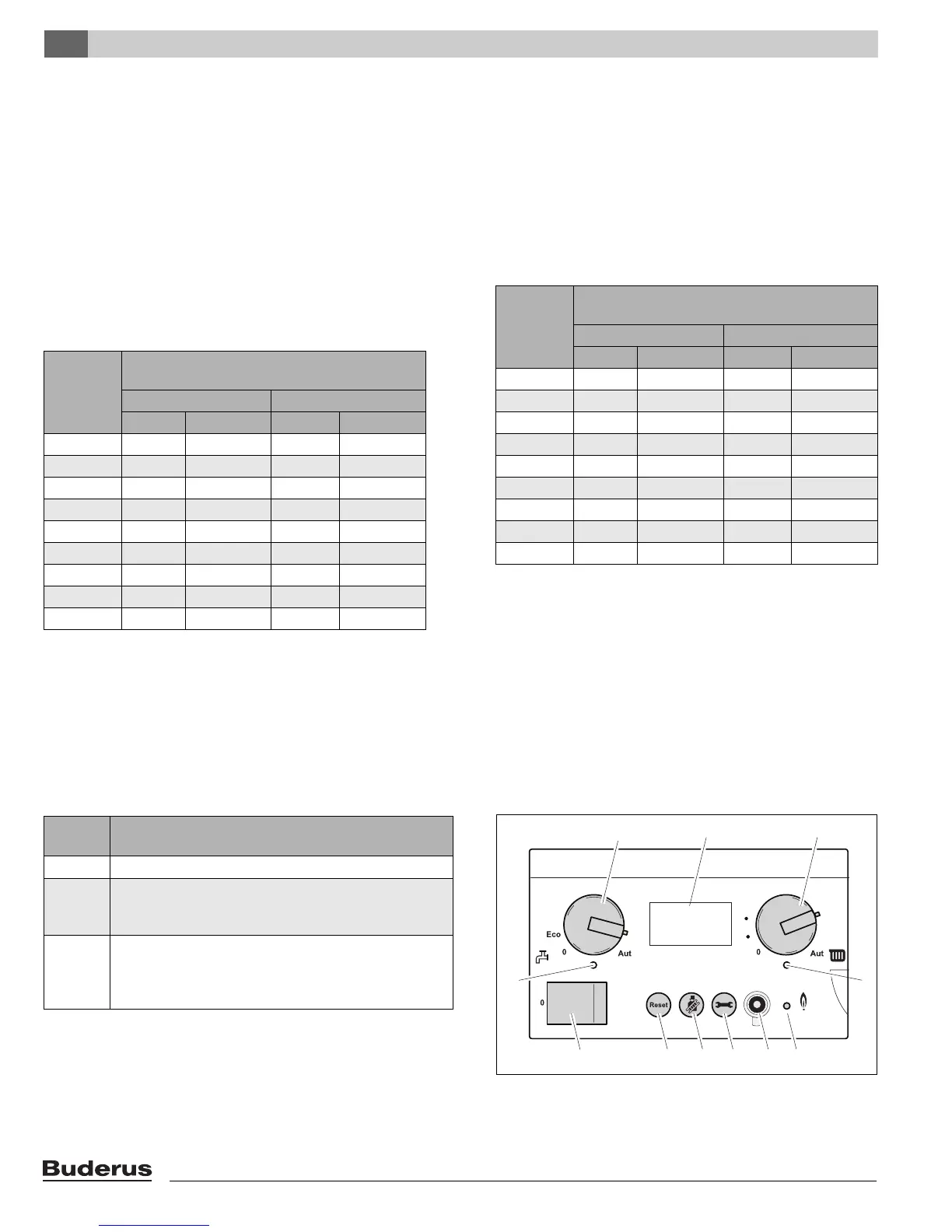

Fig. 69 BC10 basic controller
888
1
123 456
11
10 98
7
110
140
130
120
90
100
130
170
150
90
110
190
Knob
position
Explanation
0
No supply to heating system (e.g. only DHW mode)
86–190 The temperature (in °F) set on the BC10 cannot be
changed with a room controller. The supply
temperature does not rise above this set temperature.
Aut
The temperature is determined automatically on the
basis of the heating curve. If no room controller is
connected, the maximum heating temperature is
190°F (88°C).
Table 15 Setting of the "space heating water temperature"
