Buderus Logamax plus - Measure the Flue Gases CO Emissions

Start-up procedure 9
Logamax plus GB162-80 kW/100 kW - Subject to modifications resulting from technical improvements! 55
z Press the "Chimney sweep" button (fig. 64, pos. 3) to
clear the reading. See also table 8, "Flue gas test",
page 41.
9.10 Measure the flue gases CO emissions
z Open at least two thermostatic radiator valves, if present.
Do not switch ON the boiler.
z Push on the control panel to open it.
z Switch OFF the heating system by pressing the main
switch of the BC10 basic controller (fig. 64, pos. 1).
z Remove the cover from the flue gas measuring point
(fig. 65, pos. 1).
z Connect the flue gas analyser to the left-hand measuring
point (fig. 65).
z Switch ON the heating system by pressing the main
switch of the BC10 basic controller.
z Press and hold the "Chimney sweep" button (fig. 64,
pos. 3) (approx. two seconds), until the dot in the right-
hand bottom corner of the display (fig. 64, pos. 9)
appears. See also table 8, "Flue gas test", page 41.
z After the LED "Burner operation" (fig. 64, pos. 6) has lit
wait for one minute until the boiler is burning at full load.
z Measure the carbon monoxide content at the flue gas
measuring point (fig. 65).
The CO values in air-free condition must be less than
400 ppm or 0.04 vol. %.
Values of 400 ppm or more indicate an incorrect burner
adjustment (see paragraph 9.8, page 52), a dirty gas burner
or heat exchanger or burner faults.
z You must determine and remove the cause (see
chapter 12 on page 65).
z Press the "Chimney sweep" button (fig. 64, pos. 3) to
clear the reading. See also table 8, "Flue gas test",
page 41.
z Switch OFF the heating system by pressing the main
switch of the BC10 basic controller (fig. 64, pos. 1).
z Remove the flue gas analyser and fit the cover back onto
the flue gas measuring point (fig. 65, pos. 1).
z Switch ON the heating system by pressing the main
switch of the BC10 basic controller (fig. 64, pos. 1).
z Press on the control panel to close it.
WARNING
Leaks may be caused to pipes and screw
connections during commissioning and mainte-
nance activities.
– Carry out a proper leak test.
– Only use approved leak detection agents for
leak detection.

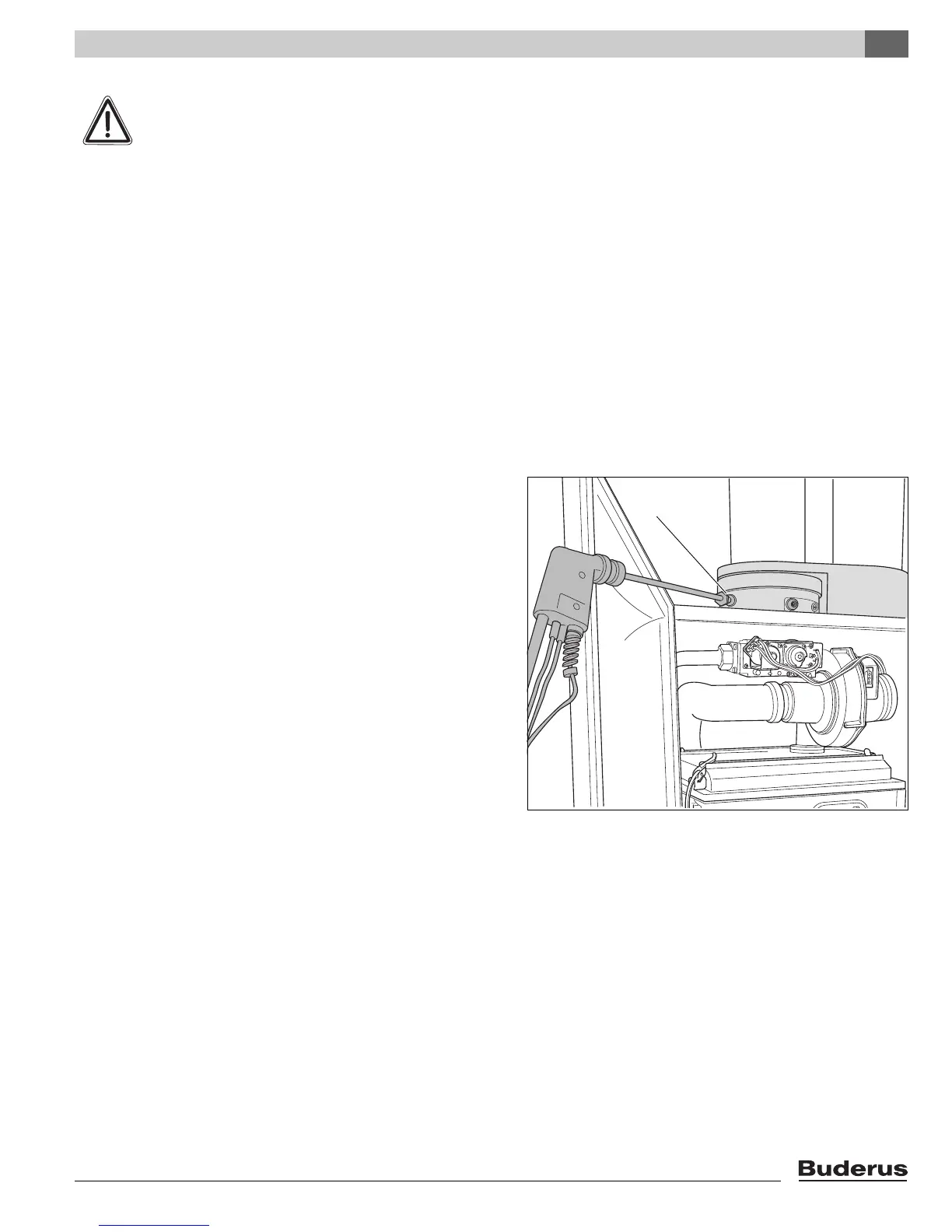

Fig. 65 Measuring the gas supply pressure
1
