Burkert 1062 - Wiring Inductive 2-Wire Switch; Wiring Inductive 3-Wire Switch

31

English
Installationandwiring


+
-
+
-
100 mA max.
+
-
1062
10-30 VDC
125 mA
Powersupply
Load
Reactionspeedaccording
tothemax.load

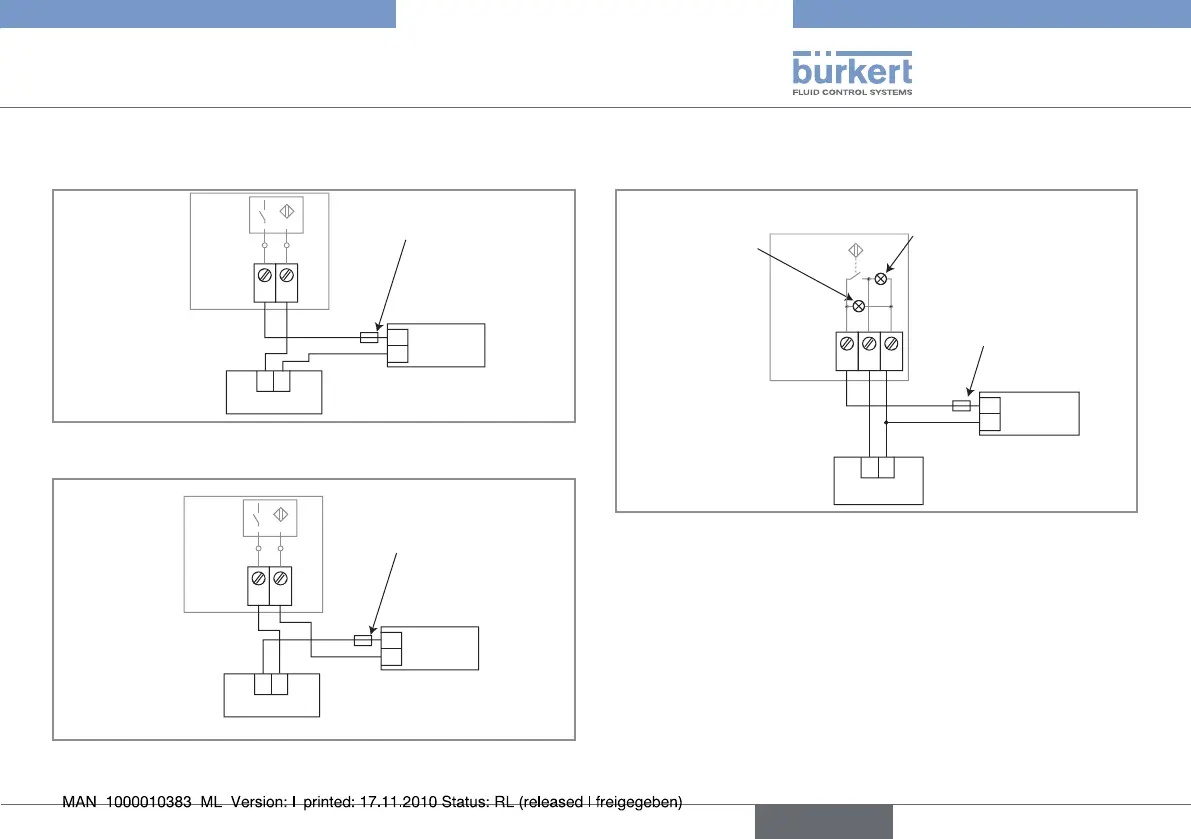

Wiring the inductive 2-wire switch in "less common" Fig. 11
mode, open and/or closed valve detection
+
-
+
-
100 mA max.
+
-
1062
10-30 VDC
125 mA
Powersupply
Load
Reactionspeedaccording
tothemax.load
Wiring the inductive 2-wire switch in "more common" Fig. 12
mode, open and/or closed valve detection


+ -
A
+
-
200 mA max.
+
-
1062
10-30 VDC
250 mA
Powersupply
Load
Reactionspeedaccording
tothemax.load
Greenlight(valveopendetection)orred
light(valvecloseddetection)
Orangelight
(voltagepresent)
Wiring a version with an inductive 3-wire switch in PNP Fig. 13
mode, valve open or valve closed detection
