Burkert 8041 - Quick Installation Guide

17

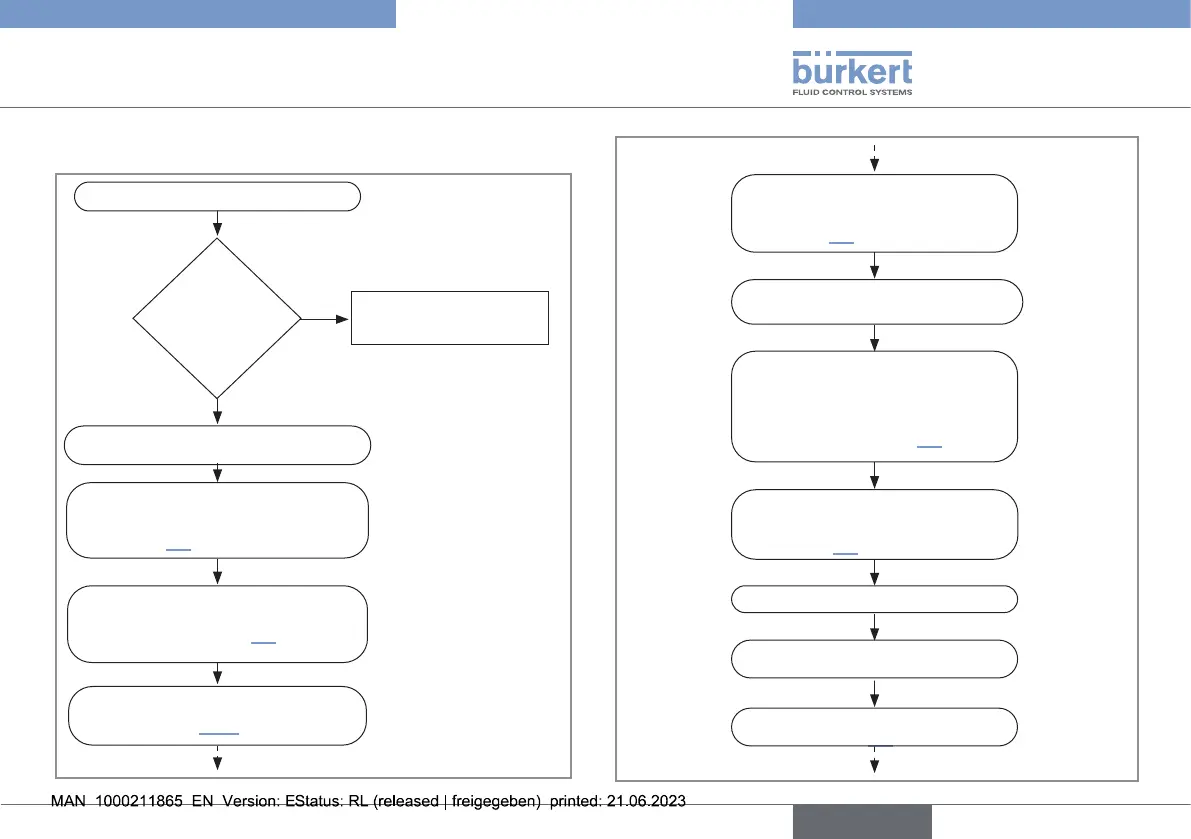

Quick installation
7. QUICK INSTALLATION
Contact your Bürkert
agent
→ Unpack the device.
Article number
correct?
Loosen 4 screws and remove
cover.
yes
No
→ Select the frequency of the
main supply with switch1, see
chapter9.4.
→ Select the lter with switches 2
and 3, see chapter9.5.
→ Select the current output type,
see chapter8.3.1.
→ Select the measuring range
with switches 4 and 5, see
chapter9.6.
→ Thread the cables through the
cable glands and make the
connections to the electronic
board, see chapter8.3.
→ Connect the shield on the
power cable to the earth, see
chapter8.3.
→ Fill the pipe.
→ Energize the device.
→ Calibrate the ow zero point,
see chapter9.7.
→ Install the device on the pipe.
english
Type 8041
