Installation
Horizontal mounting
Correct Incorrect
Vertical mounting
Correct Incorrect
Flow direction

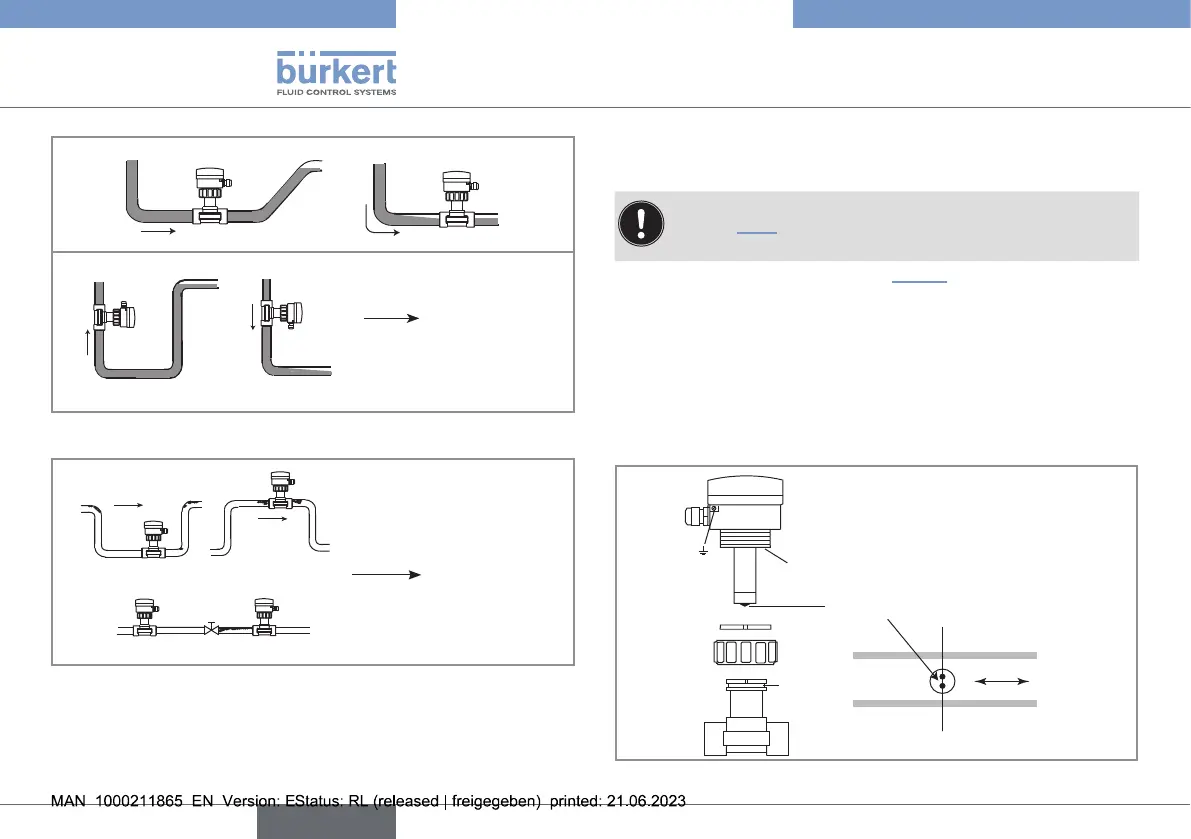

Fig.9: Filling of the pipe
Correct
Flow direction
Incorrect
Correct Incorrect
Fig.10: Airbubbleswithinthepipe
→ If necessary, use a ow conditioner to improve measurement
precision.
8.2.2. Installation into the pipe of a 8041 with
a G2" nut
Observe the installation recommendations described at
chapter
8.2.1 and in the Operating Instructions of the
S020.
→ Install the S020 tting (mark4, Fig.11) on the pipe.
→ Check that there is a seal6 on the device1 and that it is not
damaged. Replace the seal if necessary.
→ Insert the nut3 on the tting4.
→ Insert the snapring2 into the groove5.
→ Position the cable glands parallel to the pipe and insert the
device1 into the tting4.
→ Tighten the nut3 by hand on the device1.
▶
1
2
3
5
4
6
Electrodes
Flow direction
Fig.11: InstallationintothepipeoftheowmeterwithaG2"nut
