17
Assembly
Type 8202/8222
→ Check that there is a seal
on the cover and that it is
not damaged. Replace it
if necessary.
→ Grease the seal if
necessary, using a com-
ponent compatible with
the seal material.
→ Fully tighten by hand to
guarantee tightness.

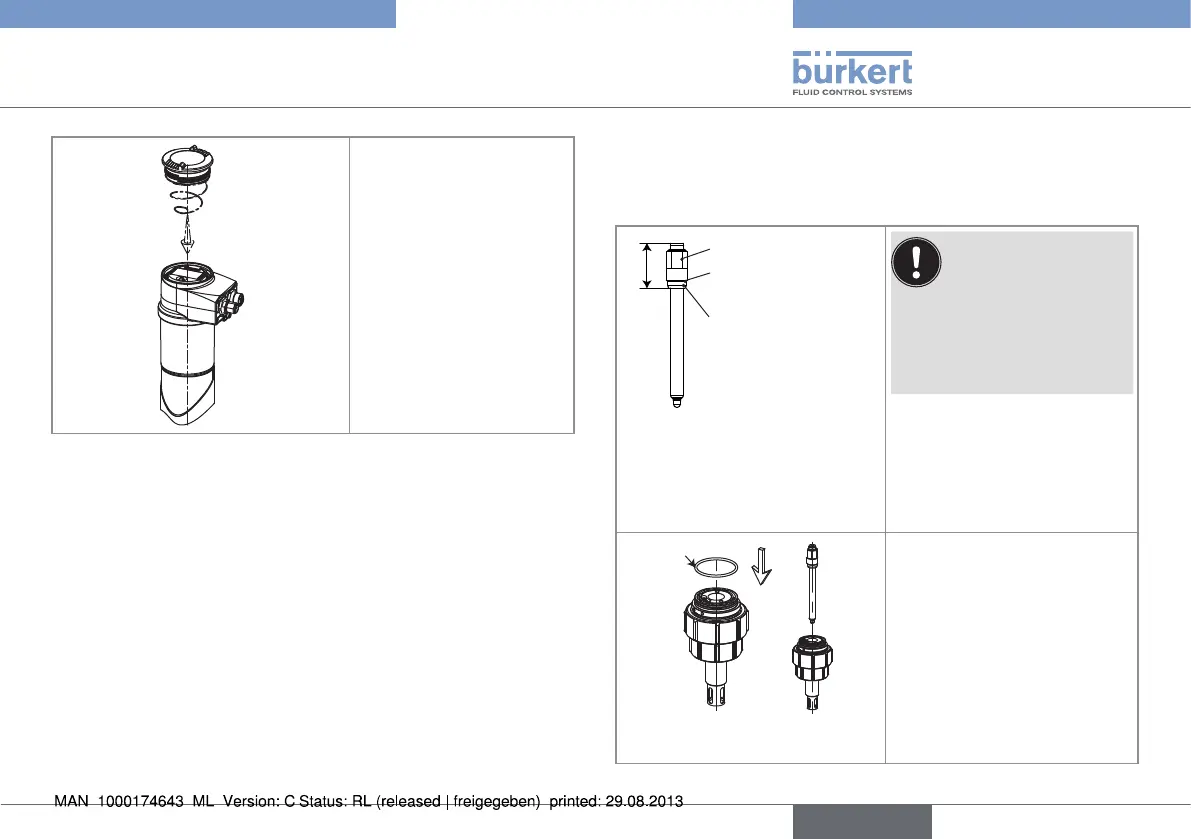

Fig. 8: Mounting the display module
7.3. Install the pH or redox probe in
the sensor holder of the 8202
(without fluid)
H
probe head
compression washer
seal
Following instructions
are valid for a Bürkert
probe.
If you use a probe
from another supplier,
respect the related
instructions.
→ Remove the protective plugs
→ Check that dimension H on
the probe is between 34
and 46mm. If necessary,
adjust the height of the com-
pression washer.
A
→ At first use, apply water or
soapy water on the "A" seal.
→ Insert the seal into the groove
on the holder.
→ Insert the probe with its seal
into the holder from above.
English
