8
Beschreibung
Typ 8202/8222
5. BESCHREIBUNG
5.1. Aufbau
Der Transmitter besteht aus
einem Modul für die Konvertierung physikalischer Größen.
einem Modul zur Erfassung und Konvertierung der gemessenen
physialischen Größen.
einem Displaymodul mit Navigationstaste.
5.2. Beschreibung des Typenschilds
8202 pH/ORP Transmitter
Supply: 14-36VDC 40W Max
Output: 1x4-20mA 2xTrans 1A Max
Cell:pH -2/16 ORP +-2000mV 120mm PG13.5
Process: Temp 0/50°C limited by cell
PN 16 Bar limited by cell
IP65 -IP67 W43LP
S-N:1110
00559630
Made in France
1
2
3
4
5
6
7
8
9
10
11
1:V+
2:NPN/PNP1
3:0V
4:NPN/PNP2
1. Transmittertyp und Messgröße
2. Versorgungsspannung und Leistungsaufnahme
3. Merkmale der Ausgänge
4. Sondendaten
5. Temperaturbereich der Flüssigkeit, ohne Sonde
6. Nenndruck der Flüssigkeit, ohne Sonde
7. Pin-Belegung der M12-Anschlüsse
8. Konstruktionscode
9. Bestellnummer
10. Seriennummer
11. Schutzart

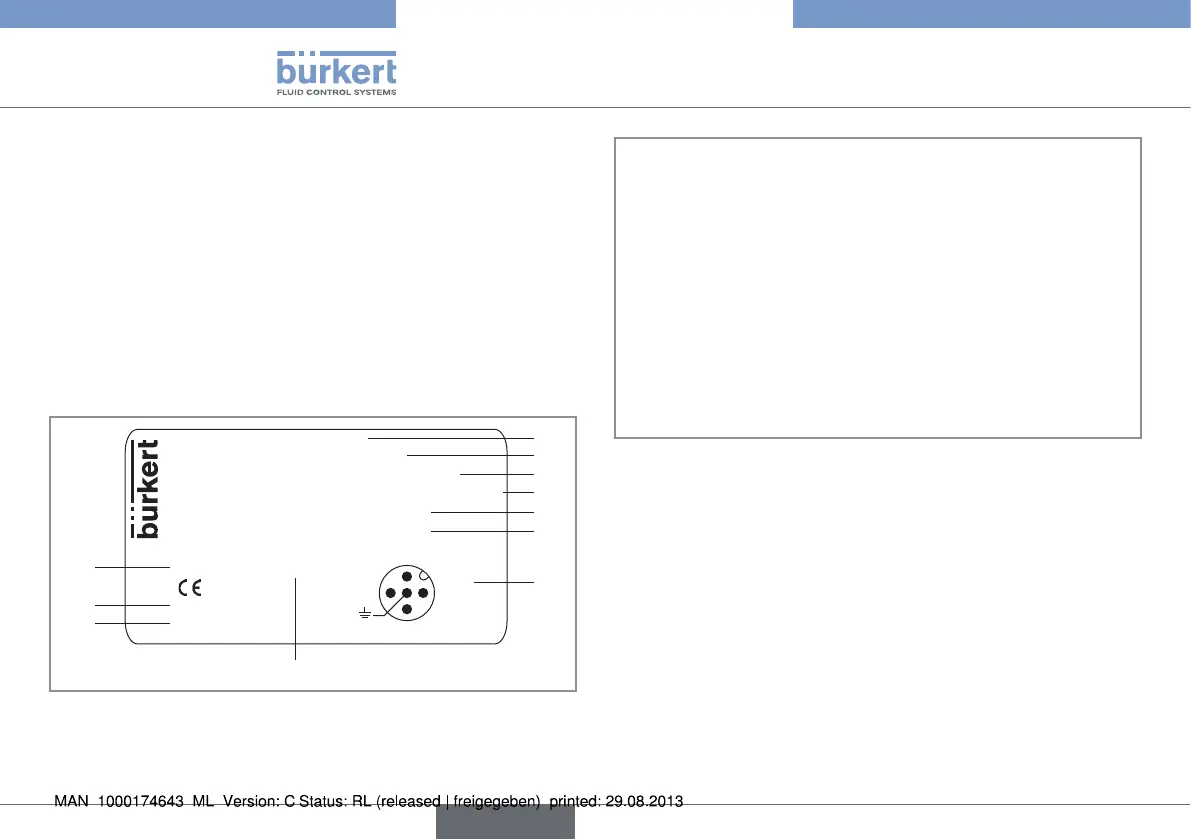

Bild 1: Typenschild des Transmitters 8202 (Beispiel)
deutsch
