16
Assembly
Type 8202/8222
7. ASSEMBLY
7.1. Safety instructions
Warning
Risk of injury due to non-conforming assembly.
• The device must only be assembled by qualified and skilled staff
with the appropriate tools.
Risk of injury due to unintentional switch on of power supply
or uncontrolled restarting of the installation.
• Avoid unintentional activation of the installation.
• Guarantee a set or controlled restarting of the process sub-
sequent to any intervention on the device.

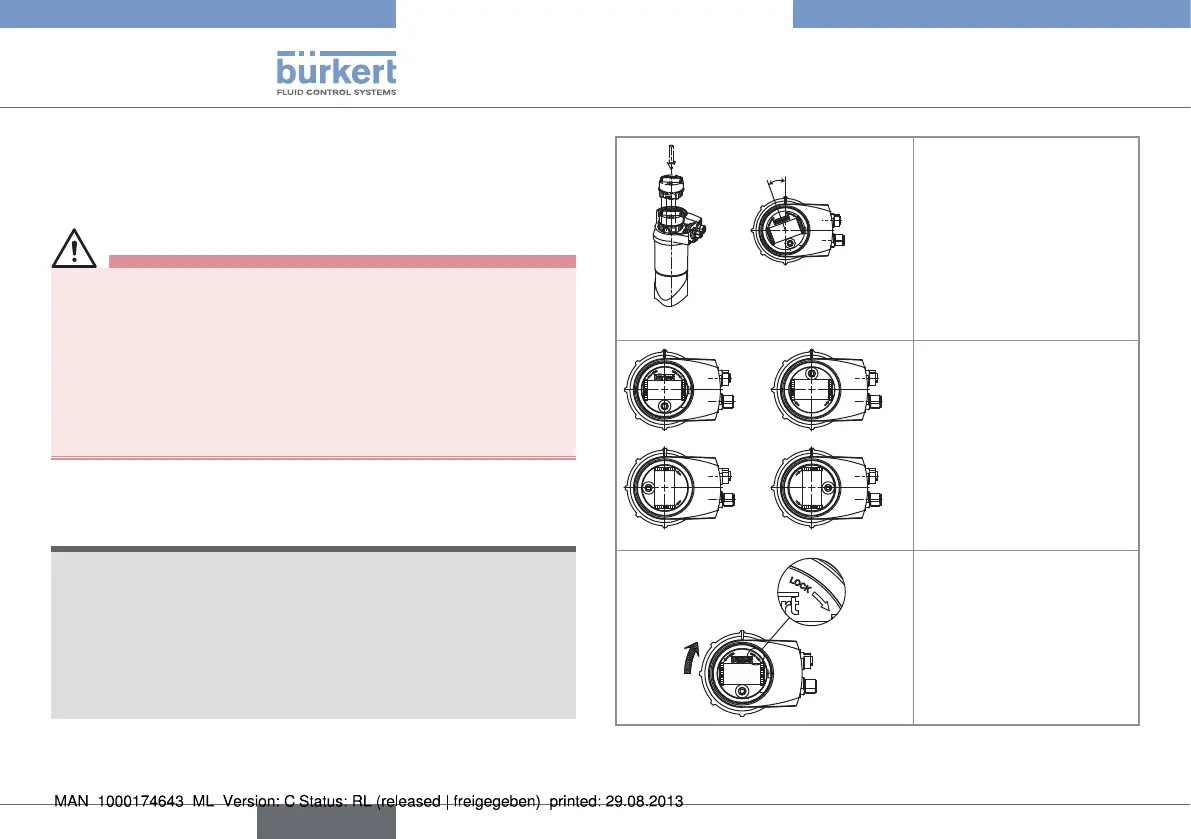

7.2. Install the display module
note
The tightness of the transmitter is not guaranteed when the
cover is removed.
• Prevent the projection of liquid inside the housing.
The transmitter may be damaged if a metal component
comes into contact with the electronics.
• Prevent contact of the electronics with a metal component
(screwdriver, for example).
20°
→ To unscrew the cover,
use your hand or a tool
which can be used as a
lever, taking care not to
scratch the glass.
→ Set the display module
at an angle of ca. 20° in
relation to the desired
position.
a)
b)
c)
d)
→ The module can be fitted
in 4 different positions, at
90° intervals.
→ Fully push in the module
and turn to the right to
lock it.
English
