23
Installation
Type 8202/8222
Apply slight vertical
pressure to engage the
seal.
Fasten the electronic
module and the holder
together by tightening
the nut. Tighten the G 2''
nut by hand only, until it
stops turning, to ensure
good electrical contact
with the temperature
probe.

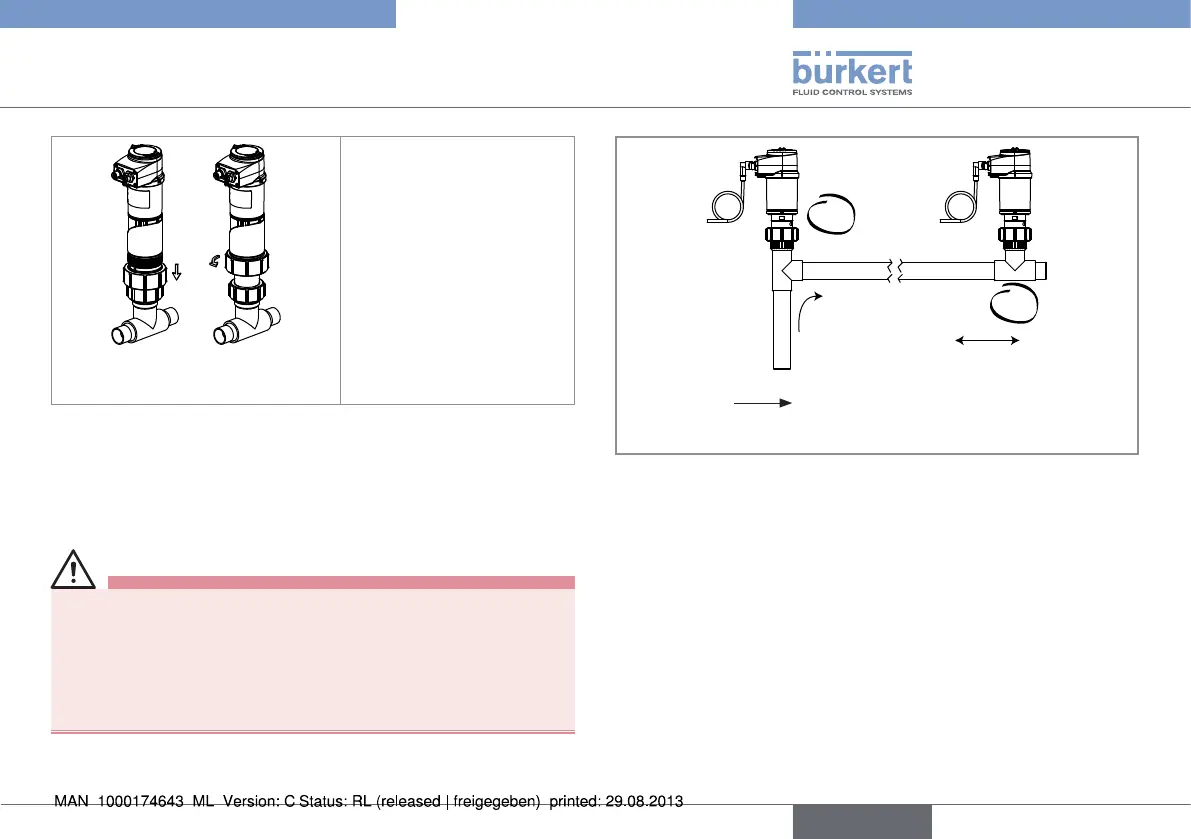

Fig. 15: Mounting the electronic module to the sensor holder, after
installation of the holder on a fitting (8202)
8.3. Installation of the 8222 onto the
pipe
danger
Risk of injury due to high pressure in the installation.
Stop the circulation of fluid, cut-off the pressure and drain the
pipe before loosening the process connections.
Risk of injury due to the nature of the fluid.
Respect the regulations on accident prevention and safety rela-
ting to the use of aggressive fluids.
Select an appropriate position on the pipe (prefer “A” mounting
to install a 8222 with sensor C=0.1 or C=0.01).
Direction of the fluid
A
B
Fig. 16: Mounting positions of the 8222 in the pipe
Mount the display module to calibrate and configure the
transmitter.
Calibrate the transmitter.
Mount the transmitter into the fitting, as shown in Fig. 17:
