Type 8202/8222
5. DESCRIPTION
5.1. Design
The transmitter comprises:
• a module for measuring process values.
• An acquisition / conversion module for the process values
measured.
• a display module with browse button.
5.2. Description of the name plate
8202 pH/ORP Transmitter
Supply: 14-36VDC 40W Max
Output: 1x4-20mA 2xTrans 1A Max
Cell:pH -2/16 ORP +-2000mV 120mm PG13.5
Process: Temp 0/50°C limited by cell
PN 16 Bar limited by cell
IP65 -IP67 W43LP
S-N:1110
00559630
Made in France
1
2
3
4
5
6
7
8
9
10
11
1:V+
2:NPN/PNP1
3:0V
4:NPN/PNP2
1. Type of transmitter and parameter measured
2. Electrical power supply and power consumption
3. Output specifications
4. Sensor specifications
5. Temperature range of the fluid, without sensor
6. Nominal pressure of the fluid, without sensor
7. Allocation of the pins on the M12 fixed connectors
8. Construction code
9. Order code
10. Serial number
11. Protection rating

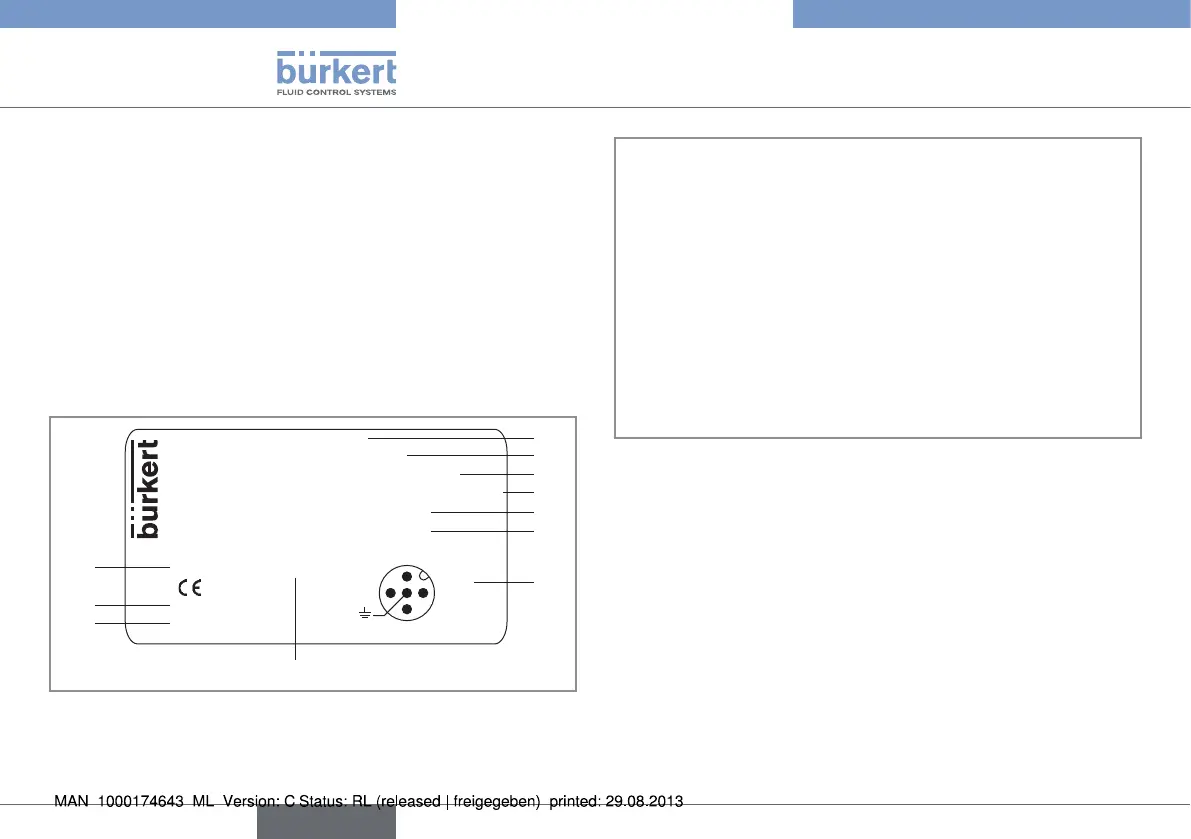

Fig. 1: Name plate of the 8202 transmitter (example)
