Technical data
Type 8202/8222
6.3. General technical data
6.3.1. Mechanical data
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-20 0 +20 +40 +60 +80 +100 +120
T ( ° C)
P (bar)
A
PVDF
PVC
B
+140
232
217.6
203
188.6
174
159.6
145
130.6
116
101.6
87
72.5
58
43.5
29
14
0
P (psi)
PVDF
A: application range of a 8202 with a PVDF nut
B: application range of a 8202 with a PVC nut
The measures have been made at an ambient temperature of 60 °C

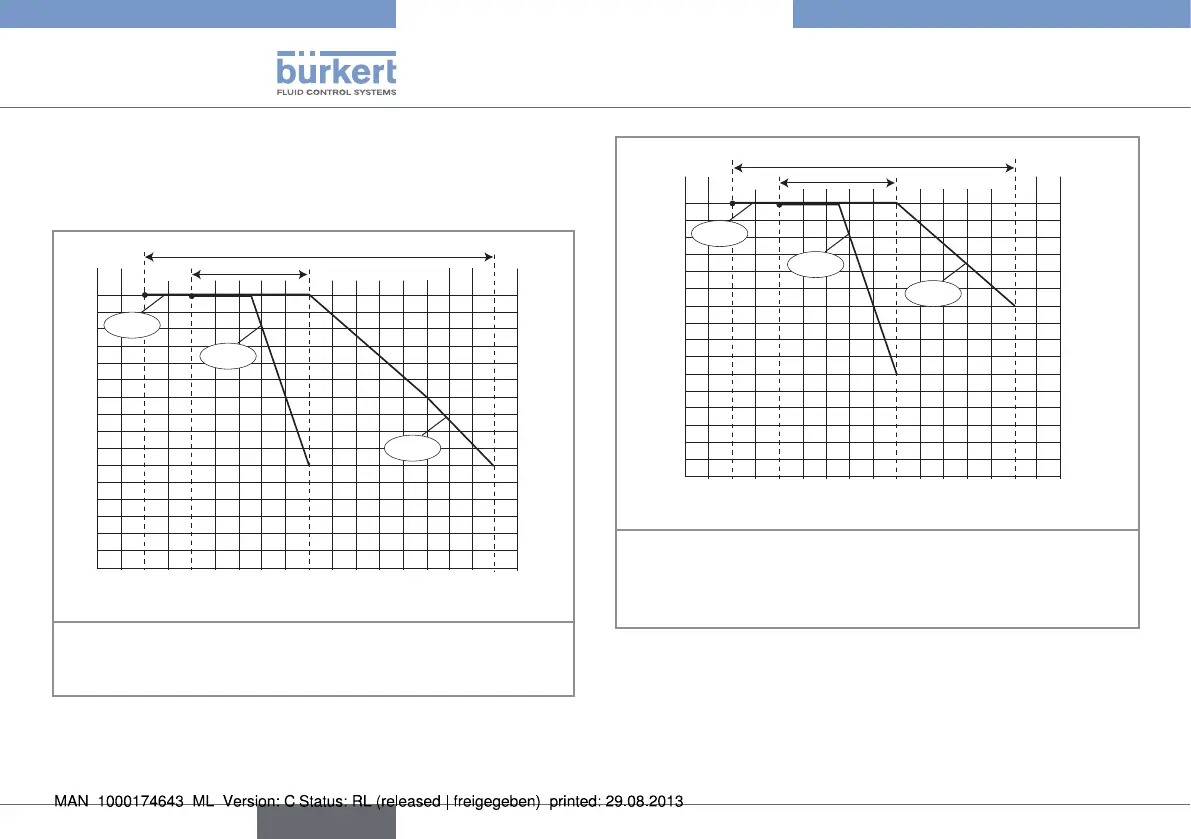

Fig. 2: Fluid temperature / pressure dependency of the 8202
(without the probe) with a PVC or PVDF nut
-20 0 +20 +40 +60 +80 +100 +120
T ( ° C)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
P (bar)
A
PVDF
PVC
PVDF
B
232
217.6
203
188.6
174
159.6
145
130.6
116
101.6
87
72.5
58
43.5
29
14
0
P (psi)
A: application range of a 8222 with a PVDF nut
B: application range of a 8222 with a PVC nut
The measures have been made at an ambient temperature of 60 °C
Fig. 3: Fluid temperature / pressure dependency of the 8222 with
a PVC or PVDF nut
