Installation
→ Screw assembly bridge on the swivel actuator, using 4 cheese-
head screws and circlips (refer to “Fig. 23”).
Assembly
bridge
(consists of 4
parts which can
be adjusted to
the actuator
by varying the
arrangement)
Support plate
Swivel actuator

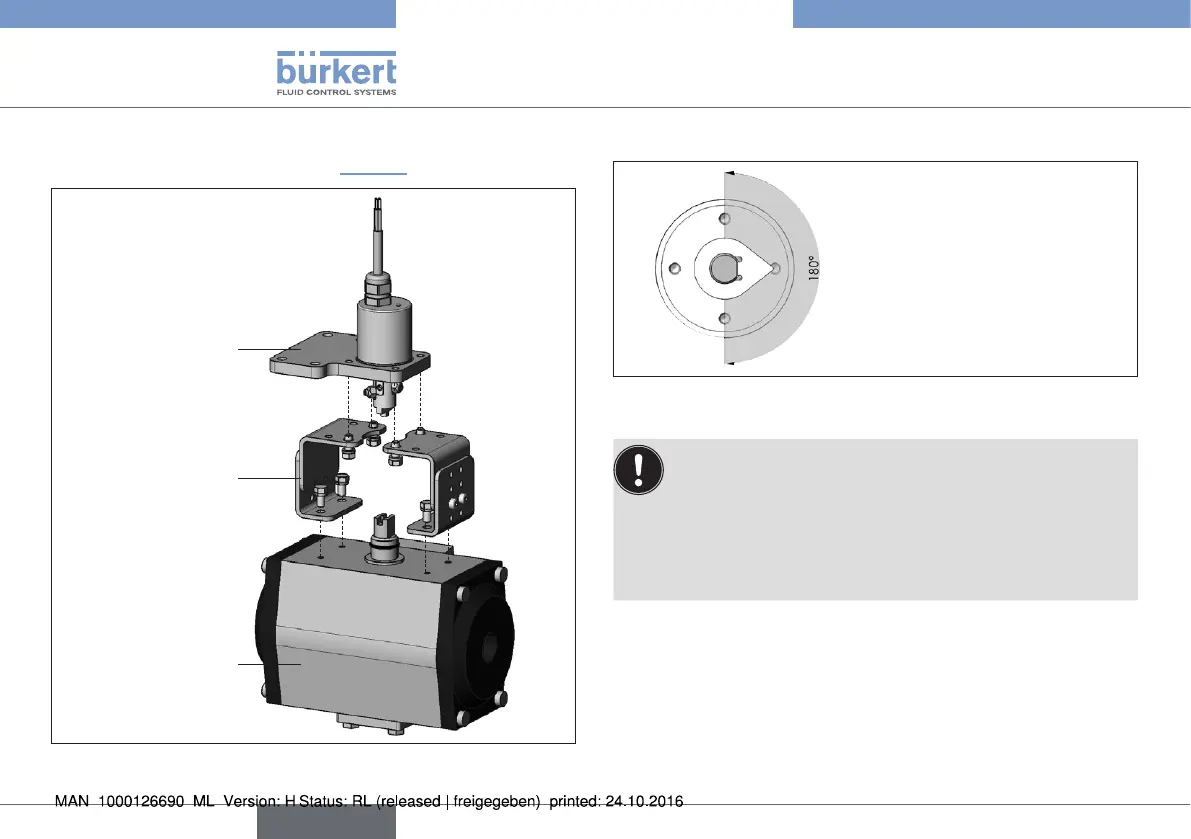

Fig. 23: Fitting the rotating Remote Sensor to a swivel actuator
Measurement range of the rotating Remote Sensor:
The rotating Remote Sensor’s
measurement range of 180° is
located on the opposite side of
the cable outlet.
Fig. 24: Measurement range of the rotating Remote Sensor
If the X.TUNE ERROR 5 message is indicated on the
graphics display of the position controller after the X.TUNE
function starts, the sensor is not correctly aligned with the
shaft of the actuator.
▶ Check the alignment. The zero crossing of the sensor must
not be exceeded.
▶ Then repeat the X.TUNE function.
