Installation
8.3.3 Attachment to a proportional valve
with push actuator according to
NAMUR
The valve position is transferred to the shaft of the rotating Remote
Sensor via a lever (according to NAMUR).
Depending on the stroke range, a short or long lever is required for the
installation (refer to “Tab. 4”)
Attachment kit for push drives (serial no. 787 215):
(Can be purchased as an accessory from Bürkert).
Part no. Quantity Name
1 1 NAMUR mounting bracket IEC 534
2 1 Hoop
3 2 Clamping piece
4 1 Driver pin
5 1 Conical roller
6a 1 NAMUR lever for stroke range 3 – 35 mm
6b 1 NAMUR lever for stroke range 35 – 130 mm
7 2 U-bolt
8 4 Hexagon bolt DIN 933 M8 x 20
9 2 Hexagon bolt DIN 933 M8 x 16
10 6 Circlip DIN 127 A8
11 6 Washer DIN 125 B8,4
12 2 Washer DIN 125 B6,4
13 1 Spring VD-115E 0,70 x 11,3 x 32,7 x 3,5
14 1 Spring washer DIN 137 A6
15 1 Locking washer DIN 6799 - 3,2
Part no. Quantity Name
16 3 Circlip DIN 127 A6
17 3 Hexagon bolt DIN 933 M6 x 25
18 1 Hexagon nut DIN 934 M6
19 1 Square nut DIN 557 M6
21 4 Hexagon nut DIN 934 M8
22 1 Guide washer 6,2 x 9,9 x 15 x 3,5
Tab. 4: Mounting kit to push actuator for rotating Remote Sensor
Procedure:
→ Perform basic installation
(for a description, refer to chapter “8.3.1”).
→ Using the clamping pieces ③, hexagon bolts ⑰ and circlips
⑯ attach the hoop ② to the actuator spindle.
3
17
2
16
Legend:
No. Name
2 Hoop
3 Clamping piece
16 Circlip
17 Hexagon bolt

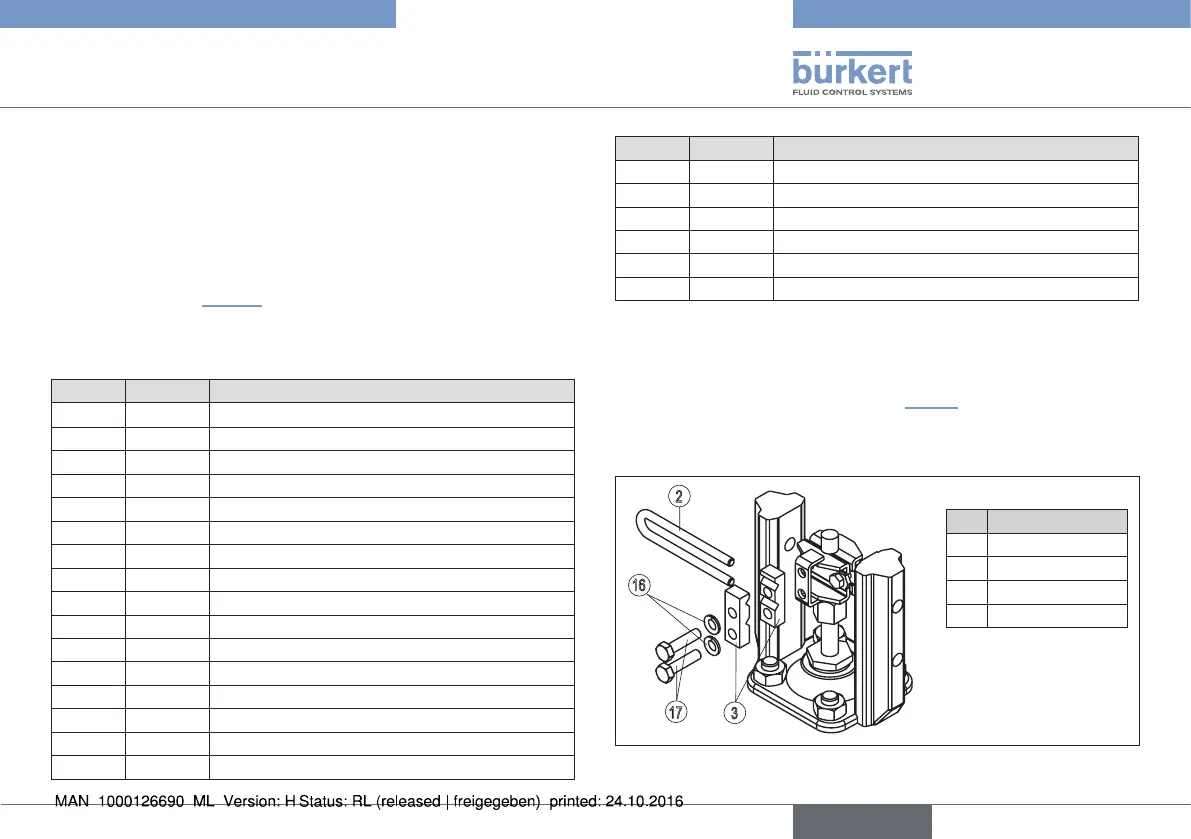

Fig. 25: Attaching the hoop
english
Type 8798
